Specifications
Brand Name :
TTI OR OEM
Model Number :
GYTS outdoor cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Payment Terms :
T/T, , paypal, ,
Supply Ability :
10KM /month
Delivery Time :
5-9 days
Packaging Details :
wood Drum
Price :
0.13
Name :
GYTS outdoor cable
application :
outdoor using
strength member :
steel
fiber count :
1-216
color :
PE OR OEM
fiber model :
single model G652D ,G657A.

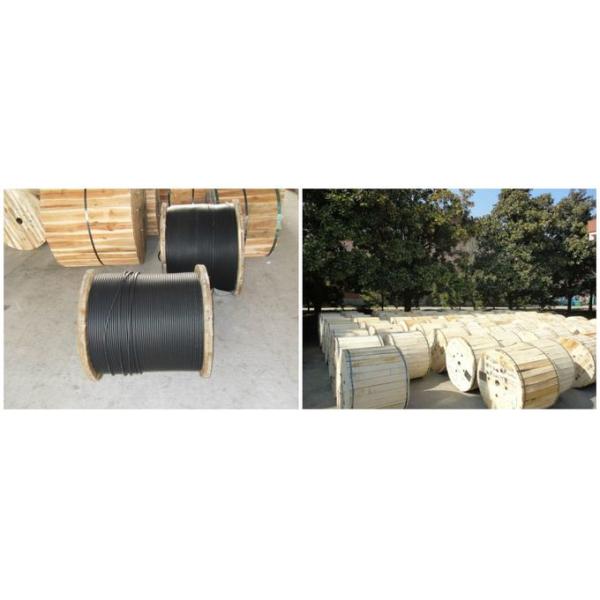

package :
wooden Drum
high lihgt :
Fast transmission speed, good confidentiality, anti-electromagnetic field interference, good insulation, long life, and good chemical stability.
Description

GYTS Outdoor Fiber Optic Cable Anti Electromagnetic Field Interference

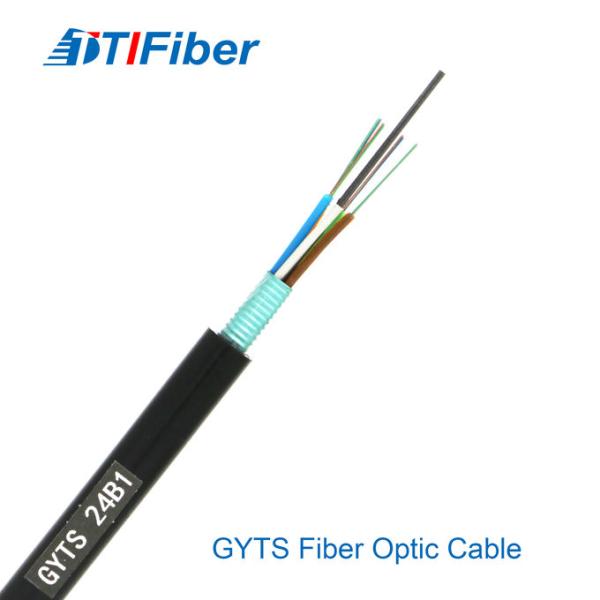

1. Product Description of GYTS outdor fiber optic cable with steel tap.


The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

2. Feature

♦ Excellent mechanical and temperature performance

♦ Special tube filling compound ensure a critical protection of fiber and resist the water.

♦ Single steel wire as the central strength member to withstand axial loads.

♦ PE sheath protects cable from ultraviolet radiation.

♦ 100% core filling water prevent cable jelly to ensure the cable watertight.

♦ Corrugated steel tape longitudinal cover cable core and provide good crush resistance.


3. Optical Characteristics

Item G.652 G.655 50/125um 62.5/125um
Attenuation @850nm     ≤3.0dB/km ≤3.2dB/km
@1300nm     ≤1.0dB/km ≤1.2dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km
@1550nm ≤0.22dB/km ≤0.23dB/km
Bandwidth
(Class A)
@850nm     ≥500MHZ.km ≥200MHZ.km
@1300nm     ≥1000MHZ.km ≥600MHZ.km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable cut-off wavelength ≤1260mm ≤1450mm


4. Technical Parameters

Cable Type Fiber Count Tubes Fillers Cable Diamete
rmm
Cable Weight kg/km Tensile strength
Long/Short term
(N)
Crush resistance
Long/Short term
(N/100mm)
Bending radius
Static/Dynamic
(mm)
GYTS-2~6 2~6 1 4 9.0 100 600/1500 300/1000 10D/20D
GYTS-8~12 8~12 2 3 9.0 100 600/1500 300/1000 10D/20D
GYTS-14~18 14~18 3 2 9.0 100 600/1500 300/1000 10D/20D
GYTS-20~24 20~24 4 1 9.0 100 600/1500 300/1000 10D/20D
GYTS-26~30 26~30 5 0 9.0 100 600/1500 300/1000 10D/20D
GYTS-32~36 32~36 6 0 9.0 100 1000/3000 300/1000 10D/20D
GYTS-38~48 38~48 4 1 9.0 100 1000/3000 300/1000 10D/20D
GYTS-50~60 50~60 5 0 9.0 100 1000/3000 300/1000 10D/20D
GYTS-62~72 62~72 6 0 9.0 100 1000/3000 300/1000 10D/20D
GYTS-86~96 86~96 8 0 13.5 192 1000/3000 300/1000 10D/20D
GYTS-134~144 134~144 12 0 16.9 227 1000/3000 300/1000 10D/20D
GYTS-204~216 204~216 18 0 16.9 240 1000/3000 300/1000 10D/20D
