Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial
Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial
Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial
Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial
Specifications
Brand Name :
TTI OR OEM
Model Number :
GYXTW Fiber Optical Cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
0.13
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
50000km/momth
Delivery Time :
Negociated
Packaging Details :
wood Drum
Product Name :
Outdoor Fiber Optical Cable
Model number :
GYXTW
Color :
Black
Material :
PE
Application :
Aerial/Duct/Direct
Operating temperature :
-40 to 70
Wavelength :
1310nm or 1550nm
Type :
SM
Length :
Customizted
Quality control :
100% test before shipping
Package :
Wooden Drum
Sheath :
MDPE/HDPE/LSZH/PVC
Description

Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial

4 8 12 24 Fiber Count Singlemode Fiber Optic Wire Cable Black Outdoor Aerial GYXTW

1. Specification:

Central loose tube optical cable with Corrugated steel tape and parallel steel wires
NO.Of cores
2~12
The cable´s outer diameter(mm)
9.8~10.8
The cable´s weight(kg/km)
70~94
Permissible tensile force(N)
Tempo­tensile force≤1500
Perm­tensile force≤600
Permissible crush force(N/100mm)
Tempo­flatting force≤1000
Perm­flatting force≤300
Min.bending radius(mm)
Dynamic bending: Optic cable OD of 20 times
Static bending: Optic cable OD of 10 times
Operating temperature
-40~+60℃
Layout mode
Pipeline,overhead and embedment

2. Characteristic:

1. GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications.
2. We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber cores.
3. Both single mode type and multimode types are available.
4. Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.

3. Feature:

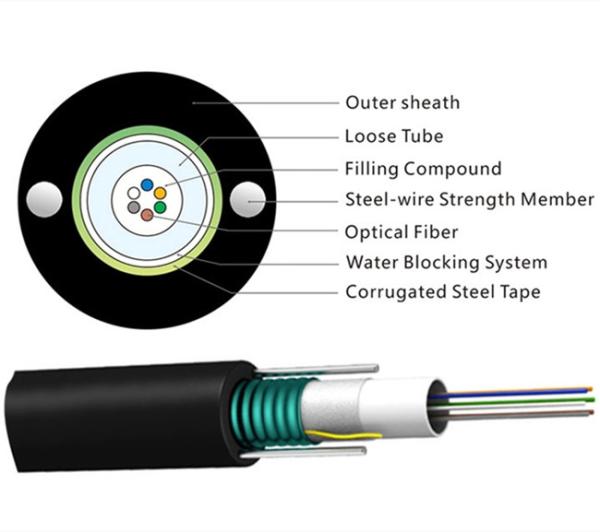

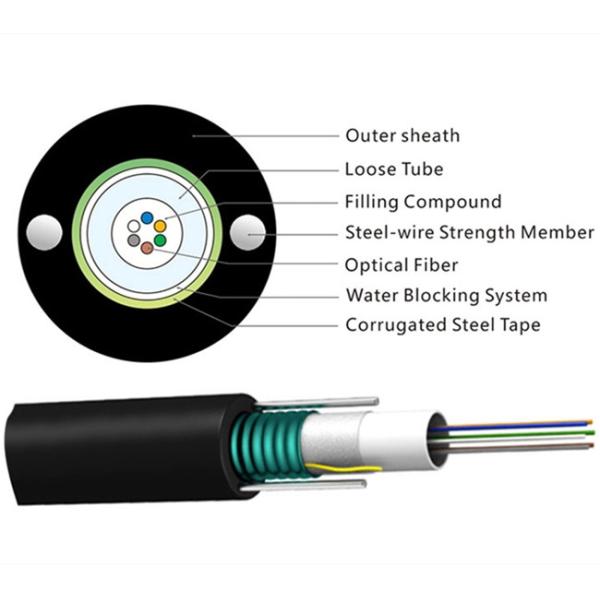

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Performance Long-term Short-term
Max.Tension(N) 3500 7000
Max.Crushing 300 1000
Resistance(N/100mm2) 30D(Dynamic) 15D(static)
Storage and operating temperature -40℃ to +70℃

4. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment

5. Product Picture:

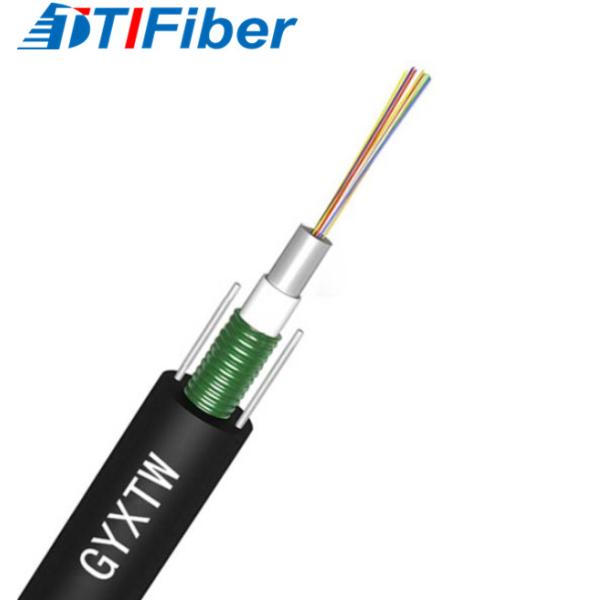

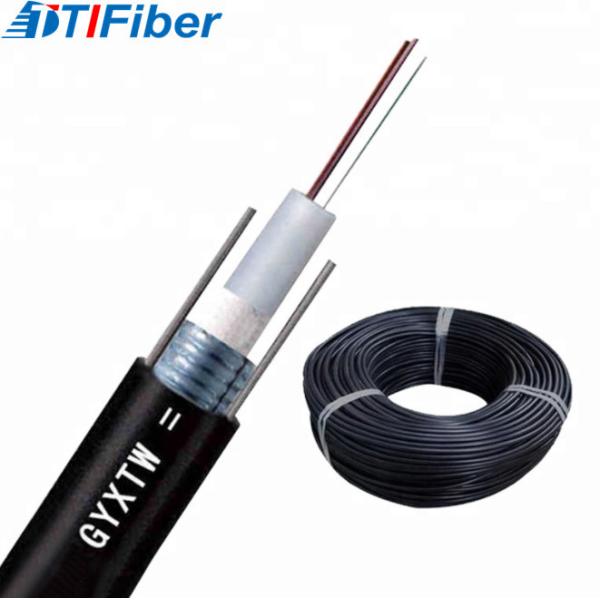

Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial

Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial

Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial

6. FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
