Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication
Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication
Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication
Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication
Specifications
Brand Name :
TTI OR OEM
Model Number :
GYFTS Fiber Optical Cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
0.13
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
50000km/momth
Delivery Time :
Negociated
Packaging Details :
wood Drum
Product Name :
Outdoor Fiber Optical Cable
Model number :
GYFTS
Color :
Black
Material :
PE
Application :
Aerial/Duct/Direct
Operating temperature :
-40 to 70
Wavelength :
1310nm or 1550nm
Type :
SM
Length :
Customizted
Quality control :
100% test before shipping
Package :
Wooden Drum
Sheath :
MDPE/HDPE/LSZH/PVC
Description

Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication

Underground Outdoor Armoured G652D Loose Tube 12 / 24 / 48 / 96 / 288 Core Singlemode Optical Cable GYFTY53

1. Specification:

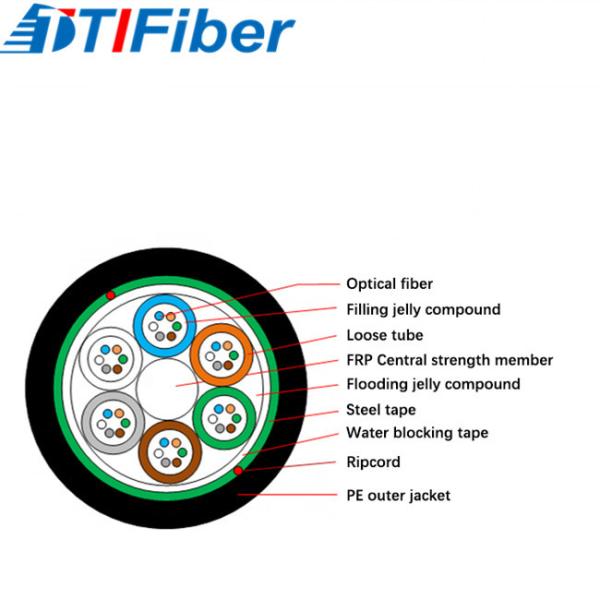

GYFTS is used for duct or aerial applications. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant.

Wolon provides GYFTS from 4 fiber cores to 288 fiber cores. Both single mode type and multi-mode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.

cable count
out sheath diameter
weight
minimum allowable tensile strength (N)
minimum allowable crush load
min bending radius
suitable temperature
(N/100 mm)
(N)
CORE
(MM)
(kg)
short/long
short/long
short/long
℃
24
10.5
105
1500/600
1000/300
20 D/10 D
20
36
10.5
105
1500/600
1000/300
20 D/10 D
20
48
10.5
105
1500/600
1000/300
20 D/10 D
20
60
12
150
1500/600
1000/300
20 D/10 D
20
72
12
150
1500/600
1000/300
20 D/10 D
20
96
12
150
1500/600
1000/300
20 D/10 D
20

2. Characteristic:

Good mechanical and temperature performance 2. High strength loose tube that is hydrolysis resistant 3. Special tube filling compound ensure a critical protection of fiber 4. Crush resistance and flexibility 5. The following measures are taken to ensure the cable watertight: a.Steel wire used as the central strength member b.Loose tube filling compound c.100% cable core filling d.PSP enhancing moisture-proof e.Water-blocking material

3. Feature:

1. Excellent mechanical and environmental performance.
2. Adopt optic fiber ribbon compact structure light weight.
3. Steel wire strength, filler protect, steel tape armored.
4. Good moisture-resistant.

NO. Model Description Applications
1 GYTA53

GYTA53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,

Steel PE sheath, Corrugated steel tape armored,PE outer sheath

Pipeline laying

&Direct burial
2 GYTA54

GYTA54 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,

Aluminium PE sheath, Corrugated steel tape armored,PE outer sheath, Anti-termite

Pipeline laying&

Direct burial,Anti-termite
3 GYTY53

GYTY53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,

PE sheath,Corrugated steel tape armored,PE outer sheath

Pipeline laying&

Direct burial
4 GYTZY53

GYTZY53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,

PE sheath,Corrugated steel tape armored,PE outer sheath,Flame-retardant

Pipeline laying&

Direct burial
5 GYTY54

GYTY54 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,

PE sheath,Corrugated steel tape armored,PE outer sheath,Anti-termite

Pipeline laying&Direct

burial,Anti-termite
6 GYTA33

GYTA33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,

Steel PE sheath,anti-termite

Direct burial&Underwater

laying
7 GYTZA33

GYTZA33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,

PE sheath,Single steel wire PE outer sheath, Flame-retardant

Direct burial&Underwater

laying
8 GYTA34

GYTA34 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,

PE sheath,Single steel wire armored,PE outer sheath, Anti-termite

Direct burial&Underwater

laying,Anti-termite
9 GYTY53+33

GYTY53+33 outdoor fiber optic cable,Metallic strength member,layer filling loose

tube,FE sheath,Corrugated steel tape PE sheath,Single steel wire armored,PE

outer sheath

Direct burial&Underwater

laying
10 GYTY53+333

GYTY53+333 outdoor fiber optic cable,Metallic strength member,layer filling

loose tube,FE sheath,Corrugated steel tape PE sheath,Double steel wire

armored,PE outer sheath

Direct burial&Underwater

laying
11 GYTA53+333

GYTA53+333 outdoor fiber optic cable,Metallic strength member,layer filling

loose tube,Aluminium-armored,FE sheath,Corrugated steel tape PE sheath,

Double steel wire armored,PE outer sheath

Direct burial&Underwater

laying

4. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment

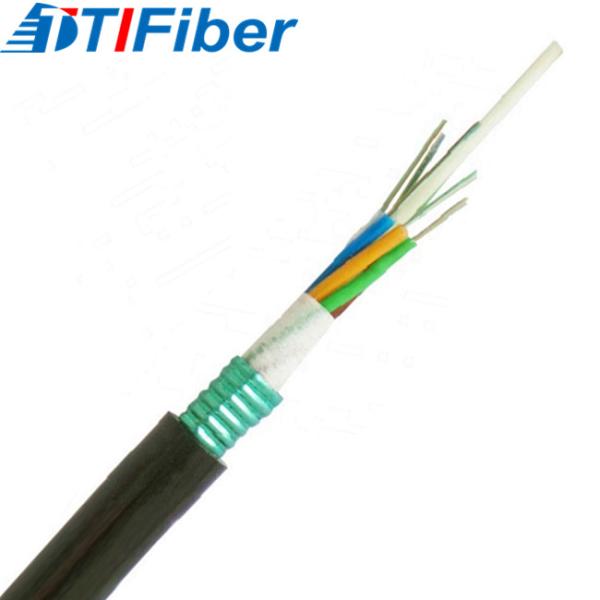

5. Product Picture:

Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication

Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication

Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication

6. FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
