GJYXCH GJYXFCH GJYXFCJH GJYXFCDH FTTH Fiber Cable 2 Cores Self Supporting
GJYXCH GJYXFCH GJYXFCJH GJYXFCDH FTTH Fiber Cable 2 Cores Self Supporting
GJYXCH GJYXFCH GJYXFCJH GJYXFCDH FTTH Fiber Cable 2 Cores Self Supporting
GJYXCH GJYXFCH GJYXFCJH GJYXFCDH FTTH Fiber Cable 2 Cores Self Supporting
Specifications
Brand Name :
TTI OR OEM
Model Number :
outdoor Self-supporting Butterfly FTTH Cable
Certification :
ISO9001/ISO14001/Rohs
Place of Origin :
china
MOQ :
1000M
Price :
negotiate
Payment Terms :
L/C, T/T, ,
Supply Ability :
10000M/day
Delivery Time :
2-3 days
Packaging Details :
small Drum in box
Name :
outdoor Butterfly FTTH Cable (GJYXCH/GJYXFCH/GJYXFCJH/GJYXFCDH)
Fiber Model :
SM MM
Material :
LZSH or NFRP or others
Fiber count :
1 ~ 4
Cable OD :
(2.0±0.1)×(6.0±0.1)
Cable Weight (kg/km) :
20 ~ 24
Tensile strength L/S(N) :
300/600
Crush resistance L/S (N/100mm) :
1000/2000
Bending radius Static/Dynamic (mm) :
15/30
Operating temperature :
-20~+60℃
Application :
HTTP, outdoor
Strength member :
steel or FRP
Description

GJYXCH GJYXFCH GJYXFCJH GJYXFCDH FTTH Fiber Cable 2 Cores Self Supporting

TTH(GJYXCH/GJYXFCH/GJYXFCJH/GJYXFCDH) outdoor Self-supporting Butterfly FTTH Cable

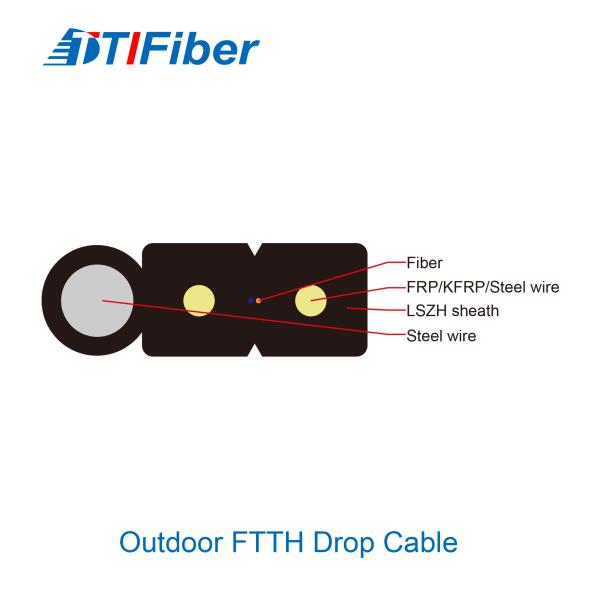

1. Descreption of the outdoor Drop cable

Self-supporting butterfly FTTH cable is the optical communication unit in the center. Two parallel reinforcements (FRPKFRP/steel wire) are placed on both sides, and a steel wire reinforcement element is added on the outside. Finally, black or color low smoke halogen-free flame retardant sheath is extruded into cables.

2. feature

♦ Special bending-resistant optical fibers provide greater bandwidth and enhance network transmission characteristics.
♦ Two parallel FRP/KFRP or steel wires have good compressive properties and protect optical fibers.
♦ Optical cable has simple structure, light weight and strong practicability.
♦ A single steel wire or strand with additional reinforcement elements makes the cable have good tensile properties.
♦ Unique groove design, easy to peel off, easy to connect, simplify installation and maintenance.
♦ Low smoke halogen-free flame retardant sheath, environmental protection.

3. Optical Characteristics

Item G.652 G.655 50/125um 62.5/125um
Attenuation @850nm ≤3.0dB/km ≤3.2dB/km
@1300nm ≤1.0dB/km ≤1.2dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km
@1550nm ≤0.22dB/km ≤0.23dB/km
Bandwidth
(Class A)		 @850nm ≥500MHZ.km ≥200MHZ.km
@1300nm ≥1000MHZ.km ≥600MHZ.km
Numerical aperture 0.200±0.015NA 0.275±0.015NA
Cable cut-off wavelength ≤1260mm ≤1450mm

4. Technical Parameters

Cable Type Fiber Count Cable Diameter
mm		 Cable Weight
(kg/km)		 Tensile strength
Long/Short term
(N)		 Crush resistance
Long/Short term
(N/100mm)		 Bending radius
Static/Dynamic
(mm)
GJYXFCH-1Xn 1 (2.0±0.1)×(5.0±0.1) 20 300/600 1000/2000 15/30
GJYXFCH-2Xn 2 (2.0±0.1)×(5.0±0.1) 20 300/600 1000/2000 15/30
GJYXFCJH-1Xn 1 (2.0±0.1)×(5.6±0.1) 21 300/600 1000/2000 15/30
GJYXFCDH-1Xn 4 (2.0±0.1)×(6.0±0.1) 22 300/600 1000/2000 15/30
GJYXCH-1Xn 1 (2.0±0.1)×(5.0±0.1) 22 300/600 1000/2000 15/30
GJYXCH-2Xn 2 (2.0±0.1)×(5.0±0.1) 22 300/600 1000/2000 15/30
GJYXCJH-1Xn 1 (2.0±0.1)×(5.6±0.1) 23 300/600 1000/2000 15/30
GJYXCDH-1Xn 4 (2.0±0.1)×(6.0±0.1) 24 300/600 1000/2000 15/30
Environmental characteristics
Operating temperature -20~+60℃
Storage temperature -20~+60℃
Standards
Comply with standard YD / T 1997-2009,ICEA-596,GR-409,IEC 60794 etc.

GJYXCH GJYXFCH GJYXFCJH GJYXFCDH FTTH Fiber Cable 2 Cores Self SupportingGJYXCH GJYXFCH GJYXFCJH GJYXFCDH FTTH Fiber Cable 2 Cores Self SupportingGJYXCH GJYXFCH GJYXFCJH GJYXFCDH FTTH Fiber Cable 2 Cores Self Supporting
