G652D 6 12 24 48 72 96 Core Fiber Optic Cable ADSS Non Metallic
G652D 6 12 24 48 72 96 Core Fiber Optic Cable ADSS Non Metallic
G652D 6 12 24 48 72 96 Core Fiber Optic Cable ADSS Non Metallic
G652D 6 12 24 48 72 96 Core Fiber Optic Cable ADSS Non Metallic
Specifications
Brand Name :
TTI OR OEM
Model Number :
ADSS Fiber Optical Cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 km
Delivery Time :
Negociated
Packaging Details :
wood Drum
Fiber type :
G652D G657A1 G657A2
Product name :
ADSS Fiber Optical Cable
Color :
Black
Material :
PE/LSZH
Number of Conductor :
≥ 10
Fiber Count :
2-288 core
Wavelength :
1310nm or 1550nm
Use :
FTTX
Length :
Customizted
Quality control :
100% test before shipping
Operating temperature :
-40°C to + 70°C
Package :
Wooden Drum
Description

G652D 6 12 24 48 72 96 Core Fiber Optic Cable ADSS Non Metallic

ADSS Non-Metallic 6 12 24 48 72 96 Core 200M Span Adss G652D Fiber Optic Cable

1. Specification:

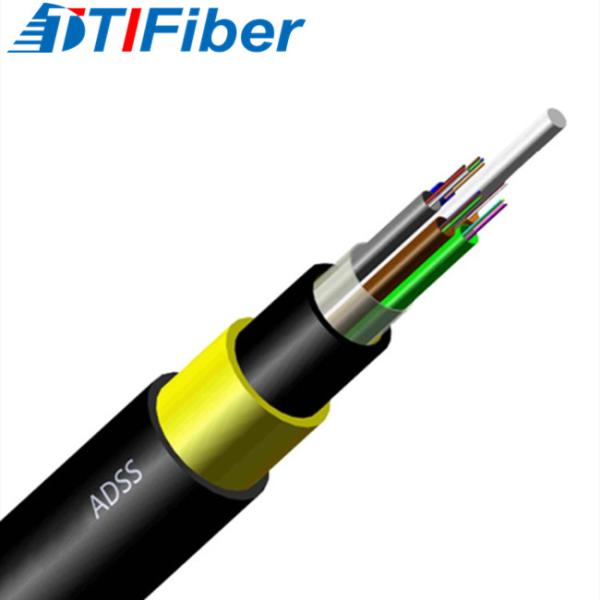

ADSS cable is loose tube stranded structure. The optical fiber is 250µm, the loose tube is made of high

modulus plastic, which is filled with waterproof compound. In the center of the cable core is a FRP strength

member,The loose tube (and the filling rope) is twisted around the central reinforcement core to form a compact

and round cable core, and the gap in the cable core is filled with a water blocking filler. The outer of the cable is

a polyethylene (PE) inner sheath,then twisted high tensile strength aramid, normally use high-density

polyethylene (HDPE) outer sheath or electric tracking (AT) outer sheath.

Cable fiber count
/
2~30
32~60
62~72
Structure
/
1+5
1+5
1+6
Fiber style
/
G.652D
Central strength member
material
mm
FRP
Diameter (average)
1.5
1.5
2.1
Loose Tube
Material
mm
PBT
Diameter (average)
1.8
2.1
2.1
Thickness(average)
0.32
0.35
0.35
Max fiber/loose tube
6
12
12
Tubes color
Full color identification
Fiber excess length
%
0.7~0.8
Water resistance
Material
/
Cable jelly
Inner sehath
material
mm
MDPE
Inner sheath
0.9mm
Non-metallic strengthen components
Material
/
Aramid Yarn
Outer sheath
material
mm
MDPE
Outer sheath
1.8mm
Cable diameter(average)
mm
10.9
11.5
12.1
Cable weight (Approximate)
kg/km
95
110
120
Cable Sectional area
mm2
93.31
103.87
114.99
Attenuation coefficient(Max)
1310nm
dB/km
0.35
1550nm
0.21
Rated Tensile Strength(RTS)
kn
6
Max allowed tension( MAT)
kn
2.5
Annual average operating tension (EDS)
kn
3.2
Young's modulus
kn/mm2
7.8
Coefficient of thermal expansion
10-6/℃
9
Crush resistance
Long term
N/100mm
1100
Short term
2200
Permission Bent Radius
static
mm
15 of OD
dynamic
20 of OD

2. Feature:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof
6. Tow parallel steel wires ensure tensile strength
7. Small diameter, light weight and easily installation

Fiber Type
G.652
G655
50/125μm
62.5/125μm
Attenuation(+20℃)
@850nm
≤3.0 db/km
≤3.3 db/km
@1300nm
≤1.0 db/km
≤1.0 db/km
@1310nm
≤0.36 db/km
≤0.40 db/km
@1550nm
≤0.22 db/km

≤0.23 db/km
Bandwidth
@850nm
≥500MHz.km
≥200MHz.km
@1300nm
≥500MHz.km
≥500MHz.km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260 nm
≤1450 nm

3. Application:

1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aeri

Cable Structural Parameter (Take single sheath ADSS 12 core span 100m as an example)

Items Specifications
Fiber Count 12
Colored Coating Fiber Dimension 250±15μm
Color Blue,Orange,Green,Brown,Grey,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Blue,Orange
Filler Dimension 2.0mm±0.05mm
Material PVC
Color Grey
Strength Member Diameter 2.1±0.05mm
Material FRP
Armaid Yarn Span 100M
Material Armaid Yarn
Outer Jacket Dimension 9.5. mm±0.5mm
Material HDPE
Color Black

Fiber Parameter (Take G652D as an example)

No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation(max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3

4. Product Picture:

G652D 6 12 24 48 72 96 Core Fiber Optic Cable ADSS Non MetallicG652D 6 12 24 48 72 96 Core Fiber Optic Cable ADSS Non MetallicG652D 6 12 24 48 72 96 Core Fiber Optic Cable ADSS Non Metallic

5. FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all online payments.
