Type B 12 Fibers MPO Fiber Optic Patch Cord Female To LC SM
Type B 12 Fibers MPO Fiber Optic Patch Cord Female To LC SM
Type B 12 Fibers MPO Fiber Optic Patch Cord Female To LC SM
Type B 12 Fibers MPO Fiber Optic Patch Cord Female To LC SM
Specifications
Brand Name :
TTI
Model Number :
SC/UPC-SC/UPC Fiber Optical Patch Cord
Certification :
Standard Certification
Place of Origin :
China
MOQ :
Negociated
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 pieces
Delivery Time :
1-3 Work Days
Packaging Details :
Standard Package(Surport OEM/ODM)
Fiber type :
G652D G657A1 G657A2
Application :
FTTH FTTB FTTX Network
Connector type :
APC/UPC
Material :
PVC/LSZH
Product namee :
Fiber Optic Patch Cord
Color :
Customized
Wavelength :
1310nm or 1550nm
Fiber count :
Simplex or Duplex
Polish :
PC/UPC/APC
Type :
Single mode/Multi-mode
Quality control :
100% test before shipping
Length :
1m 2m 3m or Customized
Description

Type B 12 Fibers MPO Fiber Optic Patch Cord Female To LC SM

Breakout Cable Female to LC SM Type B, 12 Fibers MPO Patch Cord

MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Specification:

Model
SM
MM
Connector Fiber Count
8,12,24 core
Polish
APC
PC
Housing Color
Standard: green Elite: yellow
Standard: beige Elite: auqa
Insertion Loss(Standard Type)
less than 0.7dB
less than 0.5dB
Insertion Loss(Elite Type)
less than 0.35dB
less than 0.35dB
Return Loss
PC＞50dB,APC＞60dB
＞30dB
Durability (500 matings)
less than 0.2dB
Test Wavelength
1310/1550nm
850/1300nm

Fiber Type
OS2, OM1, OM2, OM3, OM4
Fiber Count
8,12,24,48,72,96,144 cores
Cable Diameter
3.0mm, 5.5mm or customized
Jacket Color
Yellow, Orange, Aqua. Purple
Jacket Material
OFNR, OFNP, PVC, LSZH
Tensile Strength
500N
Operating Temperature
—20 to 70℃
Storage Temperature
—40 to 75℃


Feature:

1. High Performance in IL & RL

2. 4,8,12 and 24 fiber connector terminations and assemblies

3. Designed for low loss and standard loss SM and MM applications
4. Economical solution for mass-termination of fiber
5. Suitable for MPO/MTP application
6. Ruggedized round cable, oval cable and bare ribbon options available
7. Color coded housings available to differentiate fiber type, polish type and/or connector grade

8. Compliant to directive 200/95/EC(RoHS)

9. MPO connector complies with IEC-61754-7

Application:

Data communication network

Optical System Access network

Storage area networking fiber channel

High density architectures

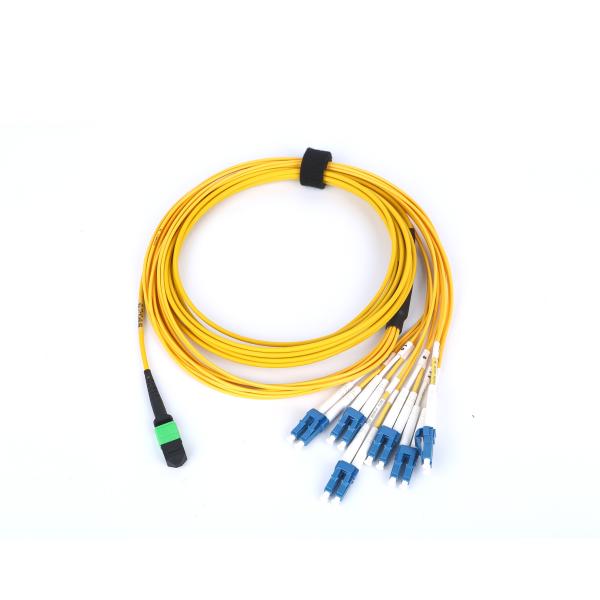

Product Picture:

Type B 12 Fibers MPO Fiber Optic Patch Cord Female To LC SMType B 12 Fibers MPO Fiber Optic Patch Cord Female To LC SMType B 12 Fibers MPO Fiber Optic Patch Cord Female To LC SM
