GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable
GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable
GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable
GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable
Specifications
Brand Name :
TTI OR OEM
Model Number :
Indoor Armoured Fiber Optic Cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 km
Delivery Time :
Negociated
Packaging Details :
wood Drum
Fiber type :
G652D G657A1 G657A2
Product name :
Indoor Armoured Fiber Optic Cable
Color :
Blue/Yellow/Other
Material :
PE/LSZH
Number of Conductor :
≥ 10
Fiber Count :
1-4 core
Wavelength :
1310nm or 1550nm
Use :
FTTX
Length :
Customizted
Quality control :
100% test before shipping
Operating temperature :
-40°C to + 70°C
Package :
Wooden Drum
Description

GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable

Indoor Armoured Fiber Optic Network Cable Singlemode Simplex or Duplex Fiber Optic Indoor Cable

1. Specification:

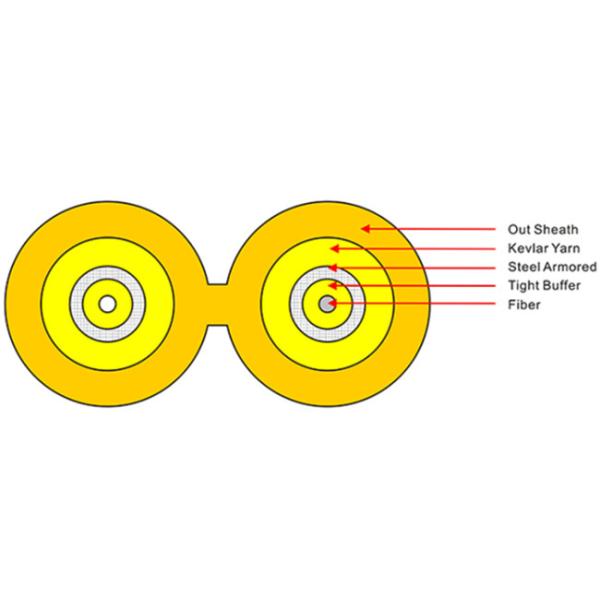

GJSJV Armoured Round Cable use 600um & 900um tight buffer fiber, steel tube protect, reinforcing steel-wire

braiding(Kevlar/aramid yarn), flame-retardant jacket. High indentation strength, high tensile strength, gopher

protected, small diameter, flexibility and easy bended.

Parameter Unit Standard & Requirement
PC(SM) UPC(SM) APC(SM) PC(MM)
Insertion Loss (Typical) dB ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥55 ≥60 ≥35
Mechanical Endurance (500T) dB ≤0.2
Exchangeability dB ≤0.2
Durability Time >1000
Vibration dB ≤0.2
Operating Temperature °C -40 ~75
Storage Temperature °C -45 ~85
Cable Diameter mm Ø3.0, 2.0, 0.9

2. Feature:
(1) Light weight,flexibility,and friendly installation.

(2) Good mechanical and environmental performance..

(3) Flame retardant outer sheath provide good safety.

Fiber Type
G.652
G655
50/125μm
62.5/125μm
Attenuation(+20℃)
@850nm
≤3.0 db/km
≤3.3 db/km
@1300nm
≤1.0 db/km
≤1.0 db/km
@1310nm
≤0.36 db/km
≤0.40 db/km
@1550nm
≤0.22 db/km
≤0.23 db/km
Bandwidth
@850nm
≥500MHz.km
≥200MHz.km
@1300nm
≥500MHz.km
≥500MHz.km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260 nm
≤1450 nm

3. Application:

(1) Adopted to indoor distribution
(2) pigtail of communication equipment
(3) Suitable for communication equipment served
(4) Can be installed conveniently and perated simply

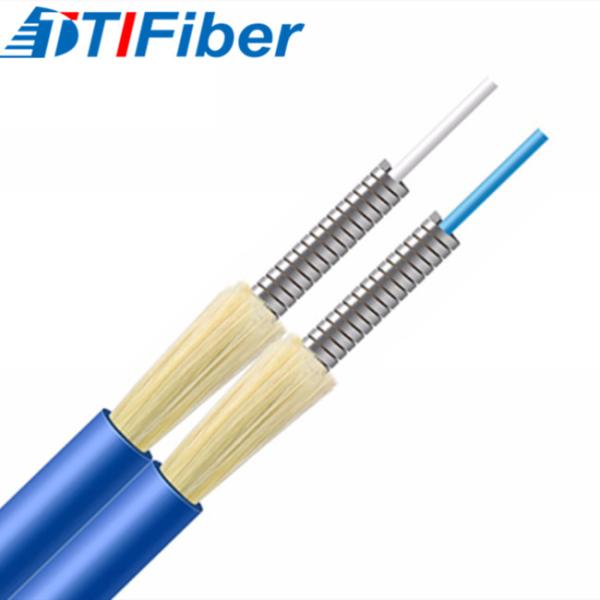

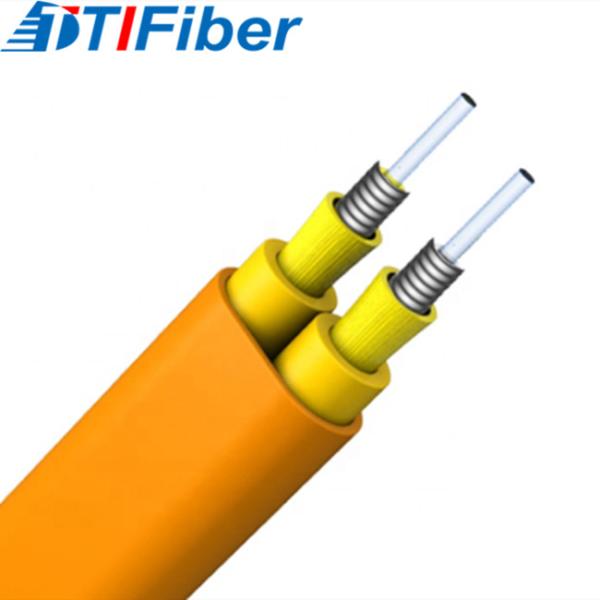

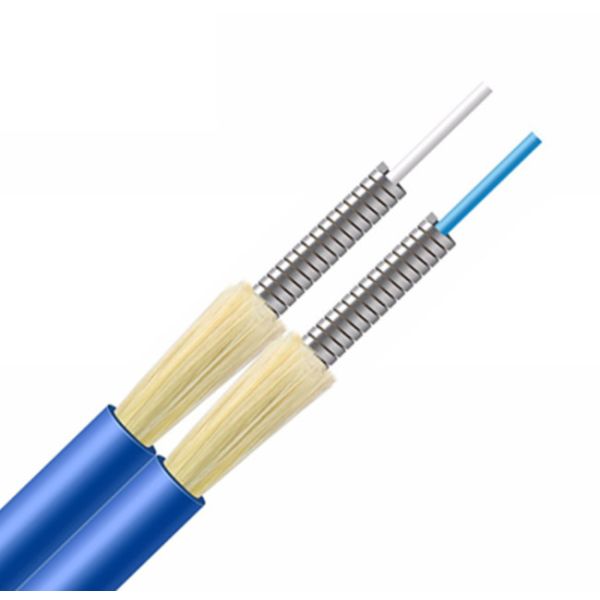

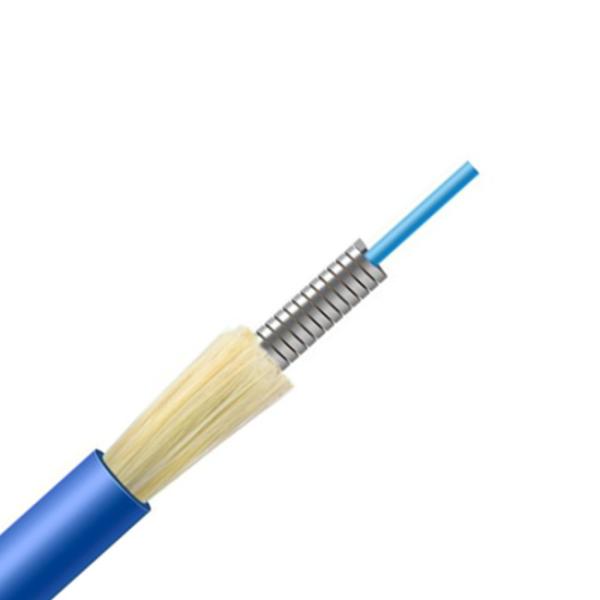

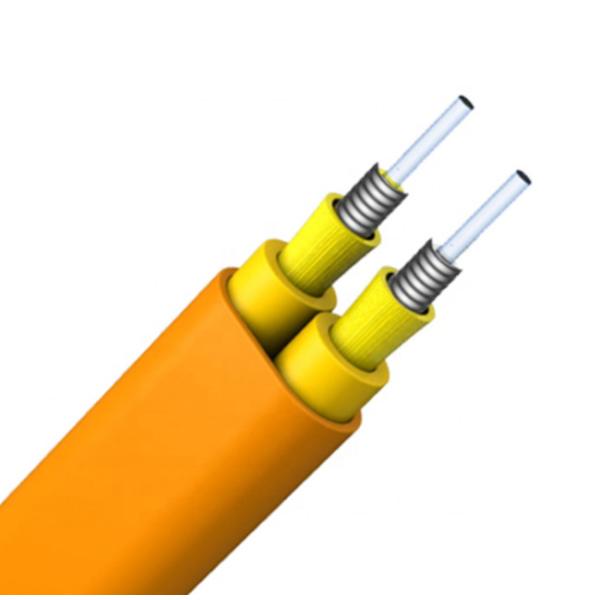

4. Product Picture:

GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable

GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable

GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable

GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable

GJSJV Fiber Optic Network Cable Simplex Duplex Fiber Optic Indoor Cable

5. FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
