Indoor FTTX Fanout G652D Single Mode Fiber Bundle 4 6 8 12 Core
Indoor FTTX Fanout G652D Single Mode Fiber Bundle 4 6 8 12 Core
Indoor FTTX Fanout G652D Single Mode Fiber Bundle 4 6 8 12 Core
Indoor FTTX Fanout G652D Single Mode Fiber Bundle 4 6 8 12 Core
Specifications
Brand Name :
TTI OR OEM
Model Number :
Indoor Fanout Fiber Optical Cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 km
Delivery Time :
Negociated
Packaging Details :
wood Drum
Fiber type :
G652D G657A1 G657A2
Application :
Aerial
Color :
Yellow
Material :
PE/LSZH
Product name :
Indoor Fanout Fiber Optic Cable
Fiber Count :
4/6/8/12 Core
Wavelength :
1310nm or 1550nm
Use :
FTTX
Length :
Customizted
Quality control :
100% test before shipping
Operating temperature :
-40°C to + 70°C
Package :
Wooden Drum
Description

Indoor FTTX Fanout G652D Single Mode Fiber Bundle 4 6 8 12 Core

Indoor Fanout 4/6/8/12 Core G652D Singlemode Bundle Fiber Optic Cable

1. Specification:

Product name Indoor Fanout fiber optical cable
Fiber Type G652D, G657A1, G657A2
Layoutwas indoor cable FTTH 220
Number of Conductors 4/6/12 cores
Structure fiber optical cable with PVC jacket
Length Customized
Fibra optica Singlemode/ multimode
Jacket sheath PVC, LSZH, PE, PU, TPU, ect.


2. Feature:

Operation capacity over the full optical spectrum from 1260-1625nm, more usable wavelengths,

increased transmission capacity, support of DWDM and CWDM, compatible with existing 1310nm

equipment, good protection and excellent strip force stability,low splicing loss and high splicing efficiency


G652D G655 50/125μm 62.5/125μm 　 　
Attenuation(+20deg C) @850nm 　 　 ≤ 3.0dB/KM ≤ 3.0 dB/KM
@1300nm 　 　 ≤ 1.0dB/KM ≤ 1.0 dB/KM
@1310nm ≤ 0.36 dB/KM -- 　 　
@1550nm ≤ 0.22 dB/KM ≤0.23dB/km 　 　
Bandwidth(Class A) @850nm 　 　 ≥ 500 MHz-KM ≥200 MHz-KM
@1300nm 　 　 ≥1000 MHz-KM ≥600 MHz-KM
Numerical Aperture 　 　 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm 　 　

　

3. Application:

  • Optical fiber jumper or pigtail;
  • Indoor riser level and plenum level cable distribution;
  • Interconnect between instruments, communication equipments;

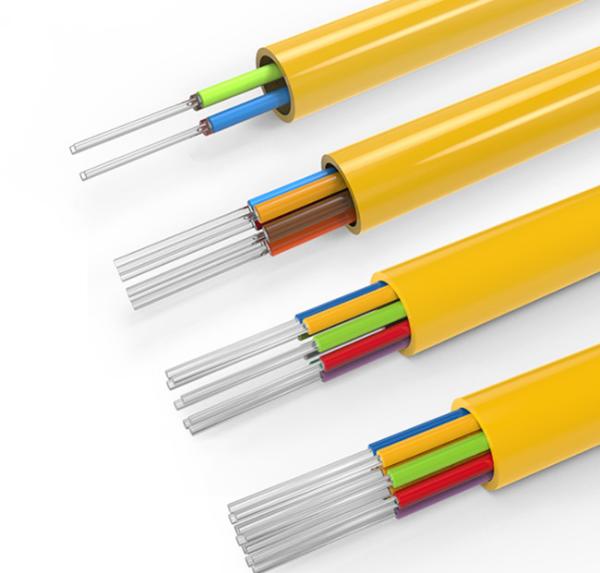

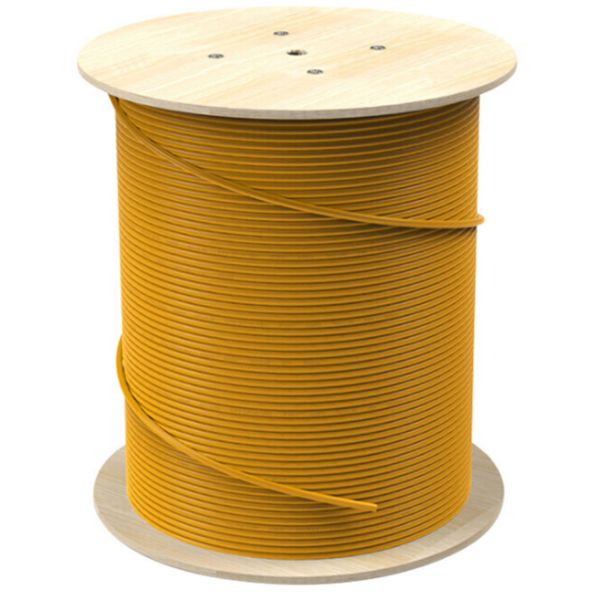

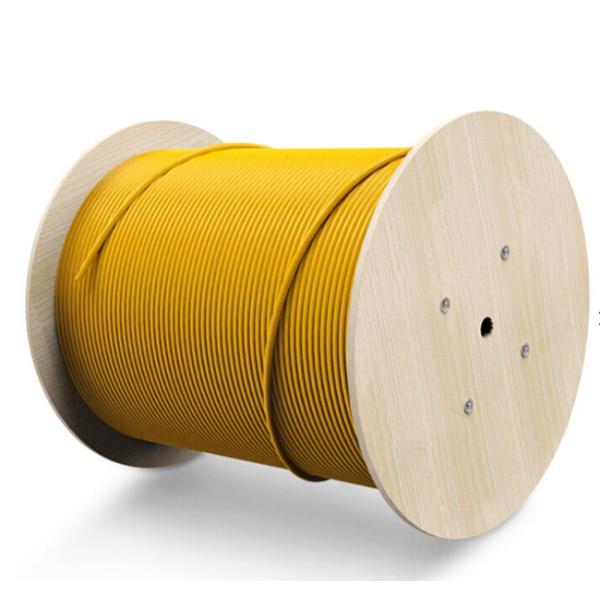

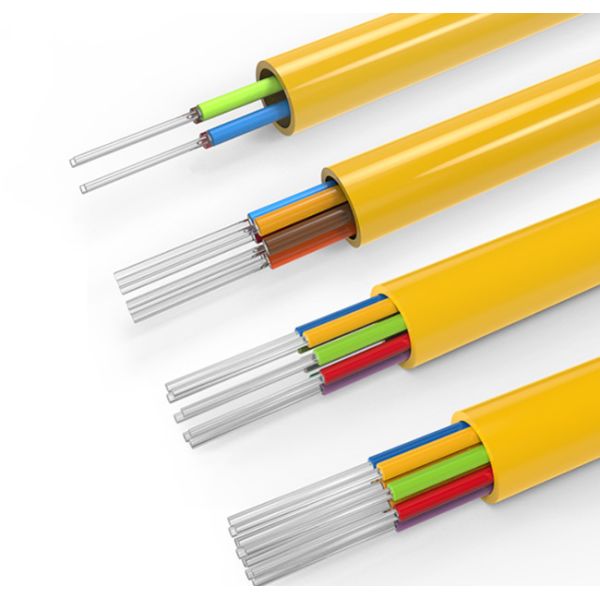

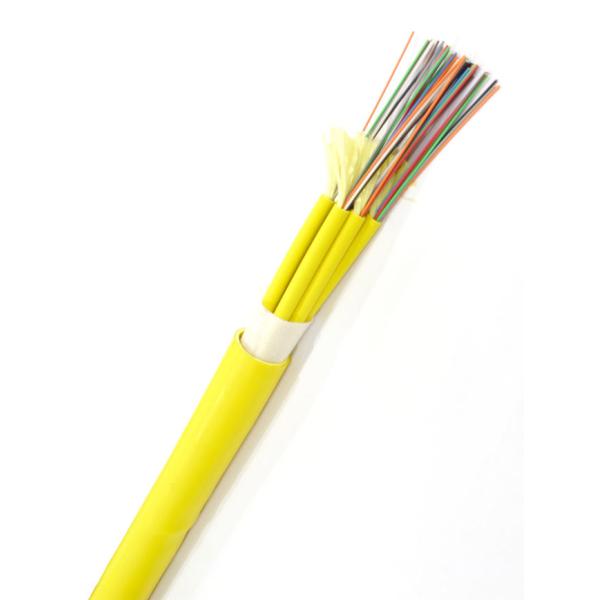

4. Product Picture:

Indoor FTTX Fanout G652D Single Mode Fiber Bundle 4 6 8 12 CoreIndoor FTTX Fanout G652D Single Mode Fiber Bundle 4 6 8 12 Core

Indoor FTTX Fanout G652D Single Mode Fiber Bundle 4 6 8 12 Core

Indoor FTTX Fanout G652D Single Mode Fiber Bundle 4 6 8 12 Core

FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all online payments.
