FTTH SC FC ST LC ODF Fiber Optic Patch Panel Rack Mount Splicing
FTTH SC FC ST LC ODF Fiber Optic Patch Panel Rack Mount Splicing
FTTH SC FC ST LC ODF Fiber Optic Patch Panel Rack Mount Splicing
FTTH SC FC ST LC ODF Fiber Optic Patch Panel Rack Mount Splicing
Specifications
Brand Name :
TTI OR OEM
Model Number :
12-24 Core Fixed Type Fiber Optic Patch Panel
Certification :
ISO9001/ISO14001
Place of Origin :
China
MOQ :
1PCS
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 PCS
Delivery Time :
Negociated
Packaging Details :
1pcs per carton
Module number :
12-24 Core Fiber Optic Patch Panel
Application :
FTTX Network
Color :
Black
Material :
PC+ABS
High :
1 U
Fiber Count :
12-24 Core
Weight :
2.5KG
Use :
FTTX
Type :
Rack-mount type
Quality control :
100% test before shipping
Operating temperature :
-40℃~65℃
Package :
1pcs per carton
Description

FTTH SC FC ST LC ODF Fiber Optic Patch Panel Rack Mount Splicing

FTTH 12-24 core SC/FC/ST/LC rack mount Splicing fiber Optic patch panel/Termination Box/ODF

Our fixed type Patch panel can be applied in the branch connection of optical fiber termination;19" standard structure,

rack mounted;Available for the adapters installation of FC,SC,ST,LC .The patch panel body is made of cold rolled

steel sheet.

Fixed Type of Rack Mounted Standard Fiber Terminal Box provides maximum port number of 6, 12, 18, 24 or 48ports.

It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.

One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination and storage.

Each Terminal Box is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.

1. Specification:

Type
FTB-86A
FTB-86B
FTB-02
FTB-04
Size(mm)
86*86*23
86*90*16
205*115*35
150*110*30
Cable diameter(mm)
Φ3
Φ3
Φ7-Φ14
Φ7-Φ20
Cable ports
2
2
3
5
Max capacity(core)
2
2
2
4


2. Feature:

1.Easy access with Telescopic rail pull-out system.

2.Providing protective connections for optical fibers and distribution pigtails.
3.Insulating fiber metal components from fiber-end shells and conveniently leading out grounding wires.
4.Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
5.6-port or 12-port long adapter plate, FC, SC, ST, LC connector are applied.

3. Application:

  • Local Area Network
  • CATV Network
  • FTTx System
  • Wide Area Network
  • Test Instruments
Type Net size mm Carton dimension/weight No./carton pcs
ODF-B-24 483x300x2U 500x350x550mm/24kg 4
ODF-B-48 483x300x3U 500x350x540mm/24kg 3
ODF-B-72 483x300x4U 500x350x460mm/21.1kg 2
ODF-B-96 483x300x5U 500x350x460mm/28.9kg 2
ODF-B-144 483x300x7.5U 500x350x460mm/34kg 2

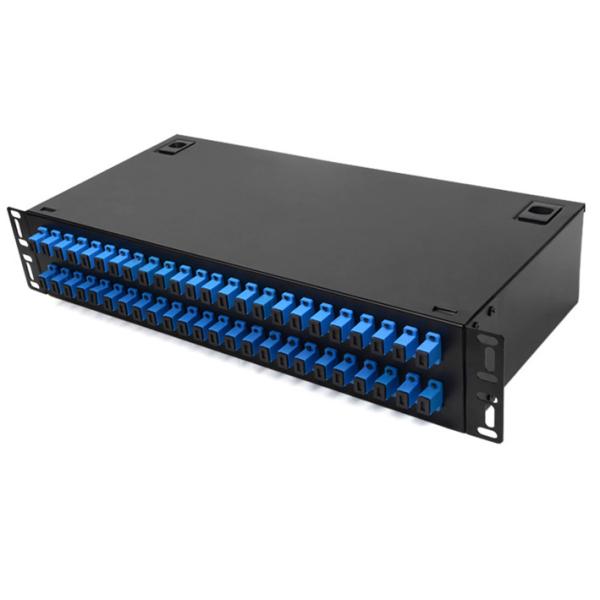

4. Product Picture:

FTTH SC FC ST LC ODF Fiber Optic Patch Panel Rack Mount SplicingFTTH SC FC ST LC ODF Fiber Optic Patch Panel Rack Mount Splicing

FTTH SC FC ST LC ODF Fiber Optic Patch Panel Rack Mount Splicing

FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all online payments.
