24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable
24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable
24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable
24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable
Specifications
Brand Name :
TTI OR OEM
Model Number :
GYTA/ GYTS Fiber Optical Cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 km
Delivery Time :
Negociated
Packaging Details :
wood Drum
Fiber type :
G652D G657A1 G657A2
Product name :
GYTS Fiber Optical Cable
Color :
Black
Material :
PE/LSZH
Number of Conductor :
≥ 10
Fiber Count :
2-288 core
Wavelength :
1310nm or 1550nm
Use :
FTTX
Length :
Customizted
Quality control :
100% test before shipping
Operating temperature :
-40°C to + 70°C
Package :
Wooden Drum
Description

24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable

Communication Cable GYTS 24 core Singlemode Outdoor Armored Fiber Optic Cable

1. Specification:

Item
GYTA GYTS 24 Core Single Mode Fiber Optic Cable Price Per Meter
Feature
1. Choice of fiber type
2. Color code of fiber
3. High water & crush resistance
4. Choice of sheath material
5. Low attenuation and dispersion
6. Good flexibility and bending performance
Application
Suitable for external application in duct and aerial

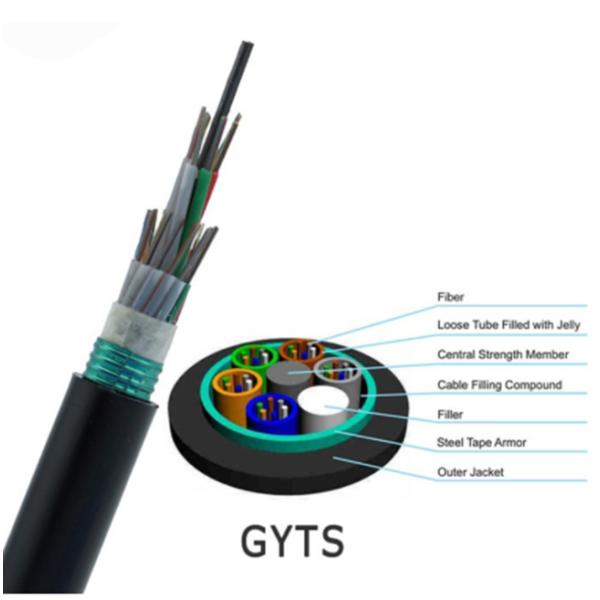

Structure Characters
1. Metallic strengthen member (Phosphated steel wire)
2. Steel taoe under PE sheath
Temperature
1. Operating temperature: -20℃ to 70℃
2. Storage temperature: -20℃ to 70℃


2. Feature:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof
6. Tow parallel steel wires ensure tensile strength
7. Small diameter, light weight and easily installation

Fiber Type
G.652
G655
50/125μm
62.5/125μm
Attenuation(+20℃)
@850nm
≤3.0 db/km
≤3.3 db/km
@1300nm
≤1.0 db/km
≤1.0 db/km
@1310nm
≤0.36 db/km
≤0.40 db/km
@1550nm
≤0.22 db/km
≤0.23 db/km
Bandwidth
@850nm
≥500MHz.km
≥200MHz.km
@1300nm
≥500MHz.km
≥500MHz.km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260 nm
≤1450 nm

3. Application:

1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aeri

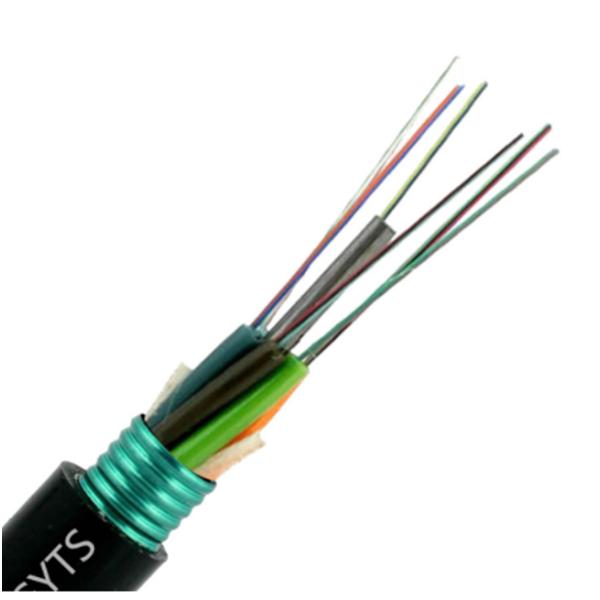

4. Product Picture:

24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable

24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable

24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable

FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
