LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
Specifications
Brand Name :
TTI OR OEM
Model Number :
Fiber Optic Patch Panel
Certification :
ISO9001/ISO 14001 / ROHS
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
negotiate
Payment Terms :
T/T, , paypal, ,
Supply Ability :
800pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Name :
Strong fiber optical patch panel Box
Fiber connector :
LC / SC /ST / FC / MPO
Size :
2U
Material :
Cold rolled steel OR Aluminum
Box structure :
Pulling type
Port :
122 core
Thichness :
0.9MM / 1.0MM / 1.2MM
Description

LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box

LC Type Fiber Otptic Patch Panel With Cold Rolled Steel Box And Strong Solide Phisics Pulling.

Description:

Fiber patch panels can be used for indoor or outdoor application.

The height of patch panel can be 1u, 2u, 3u, 4u, 6u and so on.

The opening of the optical fiber patch panels can be slidable or fixed or revolving.

Rack mount panels is usually 19" or 23" universal width.

Wall mount patch panel is more customized, it can be any structure and dimension.

Feature:

Cold-roll steel, electrostatic painting ABS plastic tray inside

12~24cores per trayDifferent adapter plate available: FC, SC, LC, ST

Suitable for 19’’ standard optic distribution cabinets

Cable entry ports suitable for single fiber, bundle and ribbon fiber cables

Reasonable design ensures the cables are in good order

Rack mounted type, can be slide out, but no sliding rails

Colors: white, black, grey, color painting optional

Capacity: 12, 24, 48, 72, 96, 144cores or customized.

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/ WAN Network

CATV Network

Specification:

Fixed Type:

Type OTB-RF-1UA OTB-RF-2UA OTB-RF-1UB OTB-RF-1UB OTB-RF-1UC OTB-RF-2UC
Size(mm) 430*250*1U 430*250*1U 482*295*1U 320*240*100 350*340*120 350*340*120
Max capacity(core) 24 48 24 48 24 48
Weight(kg) 2.6 3.8 3 4 3 5

Slidable Type:

Type OTB-RS-1UA OTB-RS-2UA OTB-RS-1UB OTB-RS-2UB OTB-RS-1U-3MPO OTB-RW-1U
Size(mm) 430*300*1U 430*250*2U 482*217*1U 482*217*2U 482*296*1U 430*300*1U
Max capacity(core) 24 48 24 48 36 24
Weight(kg) 3.5 4.0 3.5 4.0 3.0 4.7

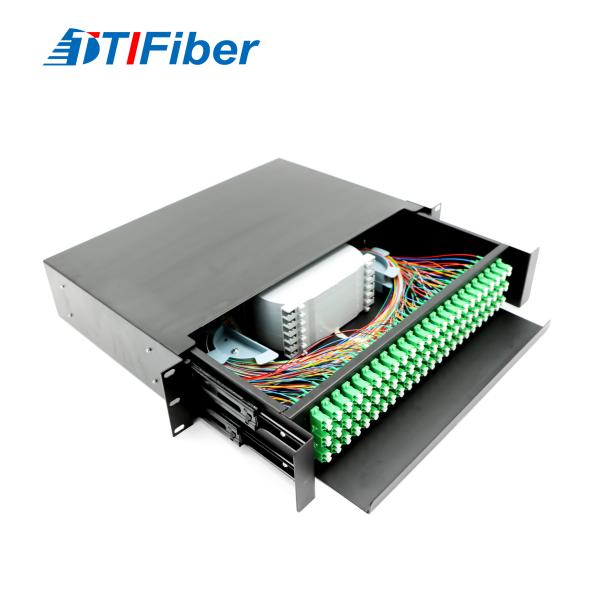

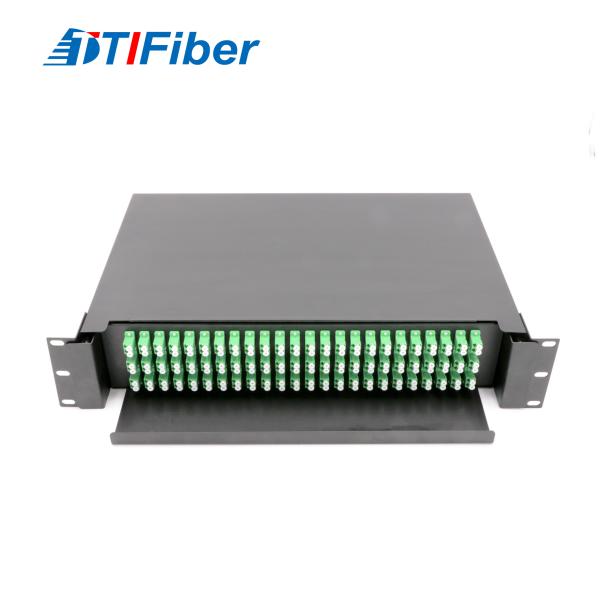

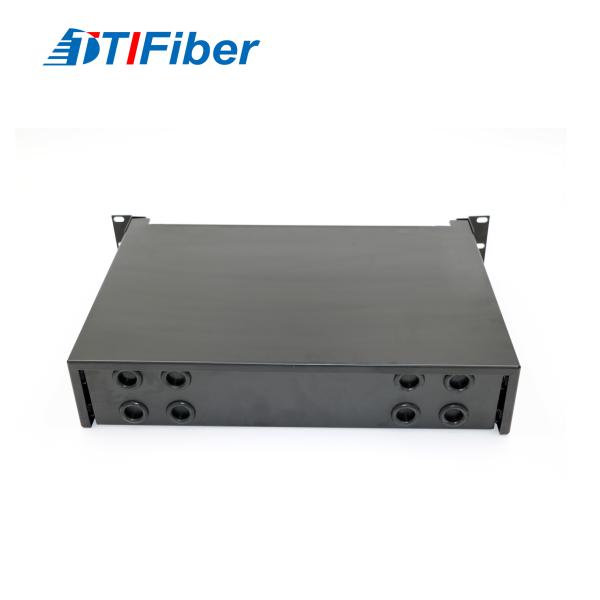

Products photos

LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel BoxLC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
