Specifications
Brand Name :
TTI OR OEM
Model Number :
GYTY53
Certification :
ISO9001 / ISO 14001 / ROHS/CPR
Place of Origin :
china
MOQ :
1000M
Price :
negotiate
Payment Terms :
L/C, T/T, ,
Supply Ability :
5000M/day
Delivery Time :
5-8days
Packaging Details :
wood Drum
Product Name :
GYTY53 fiber optical cable
Fiber Model :
SM MM
Strength member :
steel
Fiber count :
2 ~ 144 cores
Cable OD(MM) :
12 ~ 16.8
Cable weight :
160 ~280KG/KM
Tensile strength L/S (N) :
1000/3000
Crush resistance L/S (N/100mm) :
1000/3000
Bending radius Static/Dynamic (mm) :
12.5D/25D
Operating temperature :
-40~+70℃
Certificaiton :
ISO 9001/ ISO 14001/ ROHS/CPR
Package :
wood Drum or Customer request
Description

Steel 144 Cores GYTY53 Outdoor Fiber Optic Cable Water Resistant

1. Descreption of GYTY53 with Stranded Loose Tube Light-armored Cable:

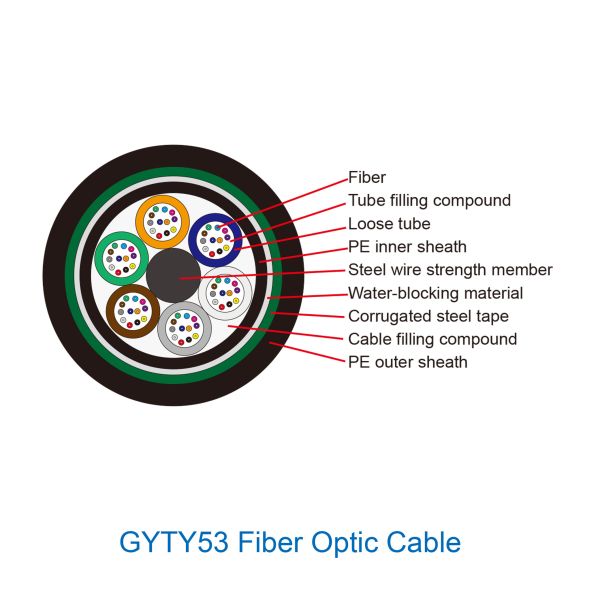

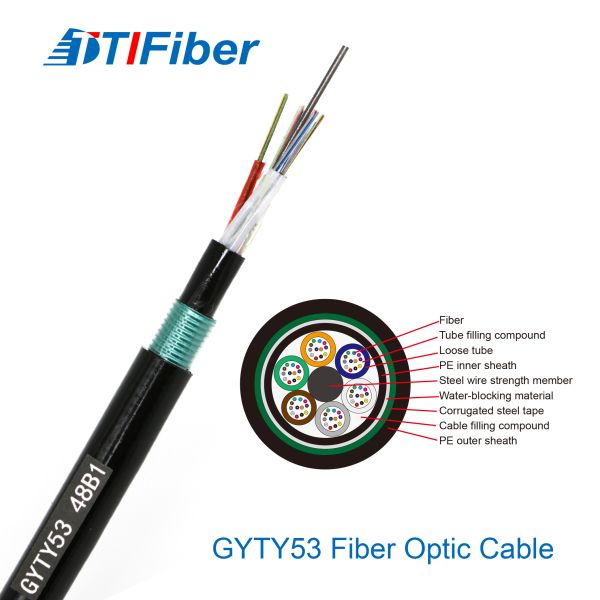

he fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the water blocking material is placed outside the inner sheath, the PSP is longitudinally applied.And then,the cable is completed with a PE outer sheath.

2. Features:

♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ Inner sheath effectively lower the external mechanical loading.
♦ Corrugated steel tape longitudinal cover cable core and provide good crush resistance.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.

3. Application:

♦ Adopted to Outdoor distribution
♦ Suitable for direct buried method
♦ Long distance and local area network communication
♦ Used outdoor cabling

4. Optical Parameter:

Item G.652 G.655 50/125um 62.5/125um
Attenuation @850nm ≤3.0dB/km ≤3.2dB/km
@1300nm ≤1.0dB/km ≤1.2dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km
@1550nm ≤0.22dB/km ≤0.23dB/km
Bandwidth
(Class A)		 @850nm ≥500MHZ.km ≥200MHZ.km
@1300nm ≥1000MHZ.km ≥600MHZ.km
Numerical aperture 0.200±0.015NA 0.275±0.015NA
Cable cut-off wavelength ≤1260mm ≤1450mm

5. Technical Parameter:

Cable Type Fiber Count Tubes Fillers Cable Diamete
rmm		 Cable Weight kg/km Tensile strength
Long/Short term
(N)		 Crush resistance
Long/Short term
(N/100mm)		 Bending radius
Static/Dynamic
(mm)
GYTY53-2~6 2~6 1 5 12.0 160 1000/3000 1000/3000 12.5D/25D
GYTY53-8~12 8~12 2 4 12.0 160 1000/3000 1000/3000 12.5D/25D
GYTY53-20~24 20~24 4 2 12.0 160 1000/3000 1000/3000 12.5D/25D
GYTY53-32~36 32~36 6 0 12.0 160 1000/3000 1000/3000 12.5D/25D
GYTY53-38~48 38~48 4 2 12.0 160 1000/3000 1000/3000 12.5D/25D
GYTY53-50~60 50~60 5 1 12.0 160 1000/3000 1000/3000 12.5D/25D
GYTY53-62~72 62~72 6 0 12.0 160 1000/3000 1000/3000 12.5D/25D
GYTY53-86~96 86~96 8 0 13.8 210 1000/3000 1000/3000 12.5D/25D
GYTY53-134~144 134~144 12 0 16.8 280 1000/3000 1000/3000 12.5D/25D
Environmental characteristics
Operating temperature -40~+70℃
Storage temperature -40~+70℃
