GYFTY53 Non Metallic Fiber Optic Cable Strong Moisture Resistance
GYFTY53 Non Metallic Fiber Optic Cable Strong Moisture Resistance
Specifications
Brand Name :
TTI OR OEM
Model Number :
GYFTY53
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
0.13
Payment Terms :
T/T, , paypal, ,
Supply Ability :
100KM /month
Delivery Time :
5-9 days
Packaging Details :
wood Drum
Name :
GYFTY53 Non-Metallic Strength Member Light-Armored Cable
Application :
HTTP, ourdorr OR Aerial
Color :
Black Or OEM
Cable Diameter(mm) :
12-16.8
Fiber count :
1-144
Tensile strength Long/Short term (N) :
1000/3000
Crush resistance Long/Short term (N/100mm) :
1000/3000
Bending radius Static/Dynamic (mm) :
12.5D/25D
High Light :
Good mechanical properties and characteristics, the material is resistant to water dissolution, good pressure resistance and flexibility, the plastic-coated steel belt has strong moisture resistance and prevents longitudinal water seepage
Description

GYFTY53 Non Metallic Fiber Optic Cable Strong Moisture Resistance


1.Stranded Loose Tube Non-metallic Strength Member Light-armored Cable GYFTY53 Product Description:

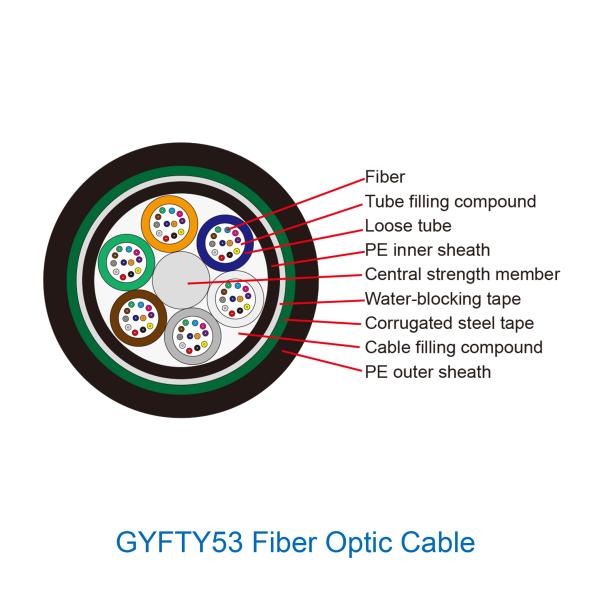

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.The tubes (and fillers) are stranded around the strength member into a compact and circular core.After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a thin polyethylene(PE) inner sheath. A layer of water-blocking tape is applied around the cable core to prevent water ingress all the same.After a corrugated steel tape armor is applied,the cable is completed with a PE outer sheath.

2. Features:

♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Non-metallic central strength member FRP withstand axial loads.
♦ Inner sheath effectively lower the external mechanical loading.
♦ Corrugated steel tape longitudinal cover cable core and provide good crush resistance.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.

3. Application:

♦ Frequent lightning area and anti electric field : The subway, tunnel
♦Long-distance communication: Local trunk network & User network
♦ Duct and direct buried application
♦ Harsh environment

4.Optical Characteristics:

ItemG.652G.65550/125um62.5/125um
Attenuation@850nm ≤3.0dB/km≤3.2dB/km
@1300nm ≤1.0dB/km≤1.2dB/km
@1310nm≤0.36dB/km≤0.40dB/km
@1550nm≤0.22dB/km≤0.23dB/km
Bandwidth
(Class A)		@850nm ≥500MHZ.km≥200MHZ.km
@1300nm ≥1000MHZ.km≥600MHZ.km
Numerical aperture 0.200±0.015NA0.275±0.015NA
Cable cut-off wavelength≤1260mm≤1450mm
Technical Parameters
Cable TypeFiber CountTubesFillersCable Diamete
rmm		Cable Weight kg/kmTensile strength
Long/Short term
(N)		Crush resistance
Long/Short term
(N/100mm)		Bending radius
Static/Dynamic
(mm)
GYFTY53-2~62~61512.01551000/30001000/300012.5D/25D
GYFTY53-8~128~122412.01551000/30001000/300012.5D/25D
GYFTY53-20~2420~244212.01551000/30001000/300012.5D/25D
GYFTY53-32~3632~366012.01551000/30001000/300012.5D/25D
GYFTY53-38~4838~484212.01551000/30001000/300012.5D/25D
GYFTY53-50~6050~605112.01551000/30001000/300012.5D/25D
GYFTY53-62~7262~726012.01551000/30001000/300012.5D/25D
GYFTY53-86~9686~968013.81701000/30001000/300012.5D/25D
GYFTY53-134~144134~14412016.82051000/30001000/300012.5D/25D
Environmental characteristics
Operating temperature-40~+70℃
Storage temperature-40~+70℃

GYFTY53 Non Metallic Fiber Optic Cable Strong Moisture ResistanceGYFTY53 Non Metallic Fiber Optic Cable Strong Moisture Resistance
