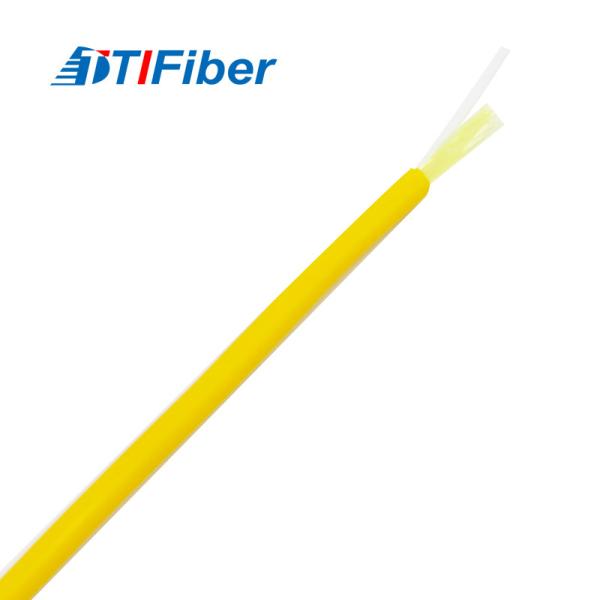

Indoor Mini Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket
Indoor Mini Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket
Indoor Mini Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket
Indoor Mini Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket
Indoor Mini Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket
Indoor Mini Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket
Indoor Mini Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket
Indoor Mini Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket
Specifications
Brand Name :
TTI OR OEM
Model Number :
indoor mini fiber cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
0.12$
Payment Terms :
T/T, , paypal, ,
Supply Ability :
100KM /month
Delivery Time :
2-3 days
Packaging Details :
wood Drum
Name :
Indoor mini fiber optic cable MFC
Model :
SM / MM
Fiber count :
2-24
Cable diameter(MM) :
3.0/3.8
Outer Material :
PVC / LSZH
Tensile strength Long/Short term (N) :
30/100-50/150
Crush resistance Long/Short term (N/100mm) :
100/300
Bending radius Static/Dynamic (mm) :
10D/20D
High Light :
support SM/MM and OEM
Description

Indoor Mini Ribbon Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket

1. Descripion of Inddor Mini Rinnon FIber cable

indoor ribbon fiber cable use fiber ribbon(s) as optical communication medium,Fiber ribbon(s) put in LSZH loose tube, then warpped with a layer of aramid yarn as strength member units,and the cable is completed with LSZH(Low smoke,Zero halogen,Flame-retardant) jacket.

2. Features:

♦ High integration with bare optical fiber
♦ Aramid yarn as strength member make cable have excellent tensile strength.
♦ Distinguished by the color,if the fibers are more than 12pcs,can print the color ring on bare fiber surface.
♦ Excellent flame-retardant performance and free to choose different flame-retardant grades sherth.
♦ The sheath anti-corrosion,anti-water,anti-ultraviolet radiation,flame-retardant and harmless to environment etc.

3. Application:

♦ Indoor cable distribution for any purpose.

♦ Interconnect between optical fibre cable distribution equipment.

4. Specification

MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter (mm) 4.1±0.25 4.8±0.25 5.1±0.25 5.6±0.25 5.8±0.25 6.2±0.25
Cable Weight (kg/km) 11.0 18.4 22 24 27 31
TBF Diameter 900±50μm

5. Mechanical Characteristics:

Tensile Strength Long term 200N
Short term 660N
Crush Resistance Long term 300N/100mm
Short term 1000N/100mm
Bending Radius Dynamic 20×D (Cable Diameter)
Static 10×D (Cable Diameter)

6. Optical Characteristics:

50/125μm 62.5/125μm G.652 G.655
Attenuation(+20°C) @850nm ≤3.5dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm ≤0.45dB/km ≤0.50dB/km
@1550nm ≤0.30dB/km ≤0.50dB/km
Bandwidth (Class A) @850nm ≥500MHz·km ≥200MHz·km
@1300nm ≥1000MHz·km ≥600MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Attenuation at temperature cycling Δα(-20°C~+85°C) @1300nm ≤0.50dB/km ≤0.50dB/km
@1550nm ≤0.20dB/km ≤0.20dB/km

7. Environmental Characteristic:

Transport Temperature -20°C~+60°C
Storage Temperature -20°C~+60°C
Installation Temperature -5°C~+50°C
Operating Temperature -20°C~+60°C

Indoor Mini Fiber Cable 3.0MM Optical Cable With Round OFNP Jacket
