Simplex indoor Armored Fiber Optical Cable With LSZH High Strength Tensile
Simplex indoor Armored Fiber Optical Cable With LSZH High Strength Tensile
Specifications
Brand Name :
TTI OR OEM
Model Number :
Armored Single model fiber optic cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
0.13
Payment Terms :
T/T, , paypal, ,
Supply Ability :
100KM /month
Delivery Time :
2-3 days
Packaging Details :
wood Drum
Name :
Single model fiber optic cable
Sructure :
Armored OR OEM
Fiber core :
1-12
Fiber Type :
SM / MM
Outer material :
PVC/LSZH/OFNR/OFNP/PE
Colors :
blue,orange and OEM
high Light :
High-strength tensile, compressive, anti-rat bite, not easy to be damaged by stepping
Description

Single Mode Armored Fiber Optical Cable With LSZH High Strength Tensile

1. Descreption of GJSFJV simplex Armored fiber optic cable

Indoor Armored Fiber Optic Cable is used in building wiring applications. Installed in walls, between floors, in plenum air handling ducts and under data center floors indoor application usually use loose buffered and tight buffered fiber or tight buffered fiber optic cable , inner jacket & strengths members .inner jacket usually surrounded by a spirally wrapped interlock armor .indoor armored fiber optic cables are less able to withstand mechanical pressure and temperature than outdoor fiber optic cables but they can retard fire effectively by using LSZH material in jacket .Tight Buffered is flexible and easy to handle. Light-weight aluminum interlock armor is standard. This design eliminates the need for inner duct or conduit and the cost associated with the installation of either. Ideal intra-building cable solution

2. Features:

Good mechanical and environmentai characteristics;
Soft, flexible, solid, easy to splice ,It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
Flame retardant characteristics and the meet the requirements of relevant standards;
Meet various requirements market and clients.

3. Applications:

Used in all kinds of general optical
Use in pigtails and patch cords
Used in connectors in optical communication equipment rooms and optical distribution frames
Used as optical apparatus connectors

4. Characteristics:

ItemG.652G.65550/125um62.5/125um
Attenuation@850nm ≤3.0dB/km≤3.2dB/km
@1300nm ≤1.0dB/km≤1.2dB/km
@1310nm≤0.36dB/km≤0.40dB/km
@1550nm≤0.22dB/km≤0.23dB/km
Bandwidth
(Class A)		@850nm ≥500MHZ.km≥200MHZ.km
@1300nm ≥1000MHZ.km≥600MHZ.km
Numerical aperture 0.200±0.015NA0.275±0.015NA
Cable cut-off wavelength≤1260mm≤1450mm

5. Cable Parameter:

Cable typeCable Diameter mm

Stainless steel tube diameter
mm

Tight-buffered fiber diameter mm
2.0GJSJVΦ2.0±0.1Φ0.9±0.05Φ0.5
3.0GJSJVΦ3.0±0.1Φ1.41±0.05Φ0.9


Cable typeCable Diameter (mm)

Cable weight
KG/KM

Tensile NBend radius (mm)*Crush N/100mm
Short timeLong timedynamicstatic
2.0GJSJVΦ2.0±0.16.520010020104500
3.0GJSJVΦ3.0±0.110.520010030154500

All the values in the table 2 , which are for reference only
Using fiber of G657 series , the bending radius will be less than 15mm

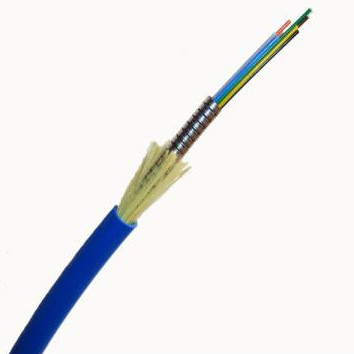

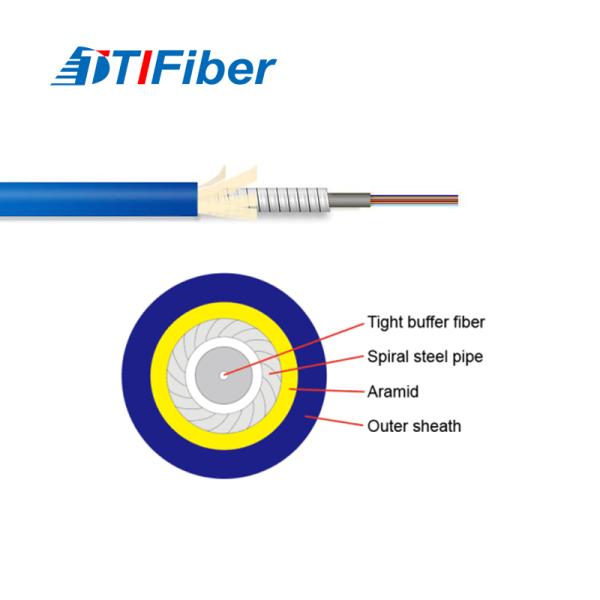

Product Picture:
Simplex indoor Armored Fiber Optical Cable With LSZH High Strength Tensile

Simplex indoor Armored Fiber Optical Cable With LSZH High Strength Tensile
