GYTC8A Aerial Fiber Optic Cable Outdoor Self Supporting 12/24/96 Core
GYTC8A Aerial Fiber Optic Cable Outdoor Self Supporting 12/24/96 Core
GYTC8A Aerial Fiber Optic Cable Outdoor Self Supporting 12/24/96 Core
GYTC8A Aerial Fiber Optic Cable Outdoor Self Supporting 12/24/96 Core
Specifications
Brand Name :
TTI OR OEM
Model Number :
GYTC8A Fiber Optical Cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 km
Delivery Time :
Negociated
Packaging Details :
wood Drum
Product Name :
GYTC8A Fiber Optical Cable
Application :
Aerial
Color :
Black
Material :
PE
Fiber type :
G652D
Fiber Count :
2-144 Cores
Wavelength :
1310nm or 1550nm
Strength member :
Central Steel Wire
Use :
FTTX
Length :
Customizted
Quality control :
100% test before shipping
Package :
Wooden Ram
Description

Outdoor Self-Supporting Figure 8 Messenger Wire GYTC8A 12/24/96 Core Aerial Fiber Optic Cable

1. Specification:

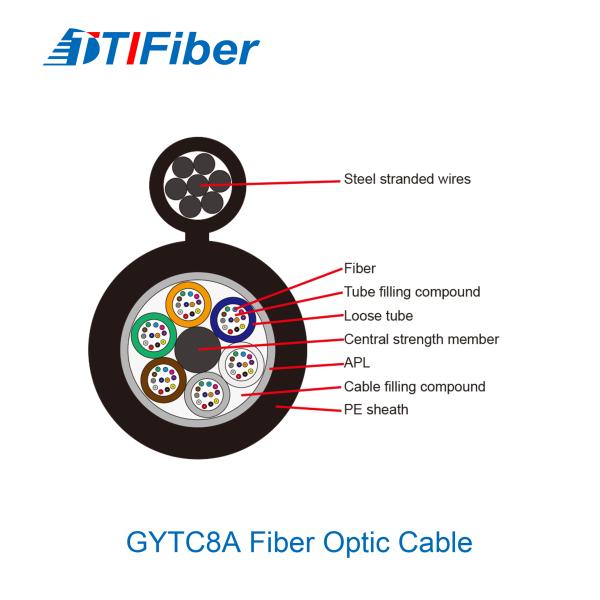

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.

G652D G655 50/125μm 62.5/125μm
Attenuation(+20deg C) @850nm ≤ 3.0dB/KM ≤ 3.0 dB/KM
@1300nm ≤ 1.0dB/KM ≤ 1.0 dB/KM
@1310nm ≤ 0.36 dB/KM --
@1550nm ≤ 0.22 dB/KM ≤0.23dB/km
Bandwidth(Class A) @850nm ≥ 500 MHz-KM ≥200 MHz-KM
@1300nm ≥1000 MHz-KM ≥600 MHz-KM
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm


2. Feature:

Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.

They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.

we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions.Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

Model Fiber count Tube count Filling rope count

Weight

(kg/km)

Tension

(N)

Crush

(N/100mm)

Bending Radius Static / dynamic

(mm)
GYTC8A-2~6 2~6 1 4 158 According to the diameter of suspension wire 300/1000 10D/20D
GYTC8A-8~12 8~12 2 3 158
GYTC8A-14~18 14~18 3 2 158
GYTC8A-20~24 20~24 4 1 158
GYTC8A-26~30 26~30 5 0

158

Fiber Type Fiber attenuation(+20℃) Band Width Numerical aperture Cut-off wavelength of optic fiber cable
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA ---

3. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment

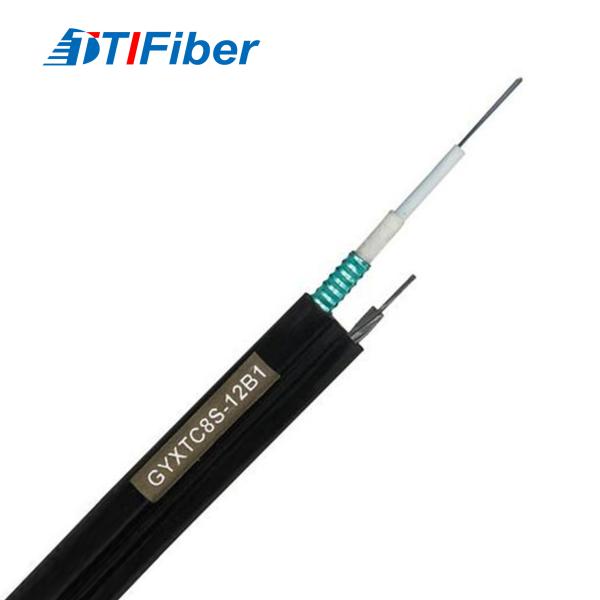

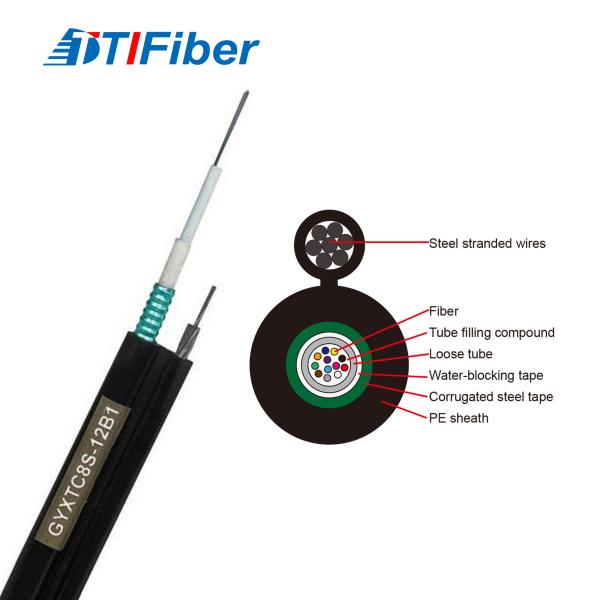

4. Product Picture:

GYTC8A Aerial Fiber Optic Cable Outdoor Self Supporting 12/24/96 Core

GYTC8A Aerial Fiber Optic Cable Outdoor Self Supporting 12/24/96 Core

GYTC8A Aerial Fiber Optic Cable Outdoor Self Supporting 12/24/96 Core

GYTC8A Aerial Fiber Optic Cable Outdoor Self Supporting 12/24/96 CoreGYTC8A Aerial Fiber Optic Cable Outdoor Self Supporting 12/24/96 Core

5. FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
