GYTC8 S Self-Supporting Loose Tube Laye Staranded Figure 8 Fiber Opti Cable
GYTC8 S Self-Supporting Loose Tube Laye Staranded Figure 8 Fiber Opti Cable
GYTC8 S Self-Supporting Loose Tube Laye Staranded Figure 8 Fiber Opti Cable
GYTC8 S Self-Supporting Loose Tube Laye Staranded Figure 8 Fiber Opti Cable
Specifications
Brand Name :
TTI OR OEM
Model Number :
GYTC8 S
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 km
Delivery Time :
Negociated
Packaging Details :
wood Drum
Product Name :
GYXTC8S Fiber Optical Cable
Application :
Aerial
Color :
Black
Material :
PE
Fiber type :
G652D
Fiber Count :
2-144 Cores
Wavelength :
1310nm or 1550nm
Strength member :
Central Steel Wire
Use :
FTTX
Length :
Customizted
Quality control :
100% test before shipping
Package :
Wooden Ram
Description

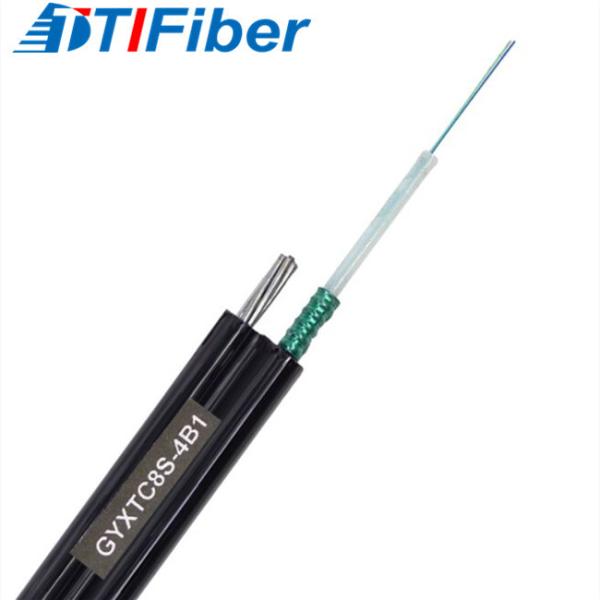

The structure of GYTC8 S Fiber optical cable 250μm fiber is positioned in a loose tube made of high modulus material,
and the loose tube is filled with waterproof compound. The center of the cable core is a metallic steel wire strength
member, for some cores fiber cable, a layer of polyethylene (PE) needs to be extruded outside the metallic steel wire
central strength member. The cable core is longitudinally wrapped with a layer of corrugated steel tape, and the steel
wire strands are integrated into an 8-shaped polyethylene sheath. Figure 8 cable GYTC8Y available with Y- acket or
S- acket, GYTC8S, etc, these products are mostly used in self-supporting aerial laying.
Features
①Excellent mechanical property and temperature performance.
②Loose tube material has good hydrolysis resistance and higher intensity.
③Single steel wire as the central strength member to withstand axial loads.
④PE sheath protects cable from ultraviolet radiation.
⑤Fully cable core filled.
⑥Corrugated steel tape longitudinally covers cable core and provides good crush resistance.
⑦High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation.

Optical Characteristics

Item

G.652

G.655

50/125um

62.5/125um


Attenuation

@850nm

≤3.0dB/km

≤3.2dB/km

@1300nm

≤1.0dB/km

≤1.2dB/km

@1310nm

≤0.36dB/km

≤0.40dB/km

@1550nm

≤0.22dB/km

≤0.23dB/km

Bandwidth

@850nm

≥500MHZ.km

≥200MHZ.km

@1300nm

≥1000MHZ.km

≥600MHZ.km

Numerical aperture

0.200±0.015NA

0.275±0.015NA

Cable cut-off wavelength

≤1260mm

≤1450mm

Structural Parameters

Cable Type

Fiber Count

Tubes

Fillers

Diameter (mm)


Weight
(kg/km)

Tensile strength
Long/Short term (N)

Crush resistance
Long/Short term (N/100mm)

Bending radius
Static/Dynamic (mm)

GYTC8S-6

6

1

5

9.0*16.0

160

2500/5000

300/1000

110/220

GYTC8S-12

12

2

4

9.0*16.0

160

2500/5000

300/1000

110/220

GYTC8S-24

24

4

2

9.0*16.0

160

2500/5000

300/1000

110/220

GYTC8S-36

36

6

0

9.0*16.0

160

2500/5000

300/1000

110/220

GYTC8S-48

48

4

2

9.0*16.0

160

2500/5000

300/1000

120/240

GYTC8S-60

60

5

1

9.0*16.0

160

2500/5000

300/1000

120/240

GYTC8S-72

72

6

0

9.0*16.0

160

2500/5000

300/1000

120/240

GYTC8S-96

96

8

0

13.1*20.6

210

2500/5000

300/1000

135/270

GYTC8S-144

144

12

0

15.8*23.2

280

2500/5000

300/1000

160/320

Environmental Characteristics
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃

Standards
Comply with standard YD / T 1114, IEC 60794-1 and other standards.
