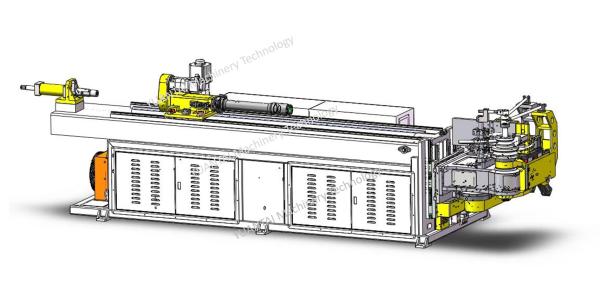

Durable Automatic Tube Bending Machine Oil Electrical Hybrid Drive CNC65REM+RBE
Durable Automatic Tube Bending Machine Oil Electrical Hybrid Drive CNC65REM+RBE
Specifications
Model Number :
CNC65REM+RBE
Place of Origin :
China
Brand Name :
YUANTAI
Certification :
CE
MOQ :
1 set
Price :
Negotiatable
Packaging Details :
Standard export wooden case or pallet package
Module No. :
CNC65REM+RBE
Automation :
Automatic
Machine Type :
Pipe and Tube Bending Machine
Power :
Oil-electrical Hybrid Drive
Precision :
0.05
Max speed :
180°/sec
Description

CNC65REM+RBE Tube bender

machine characteristics

main technical parameter
(1) Electical servo bending

Max capacity

Round tube/iron metal tube

( S=40kgf/mm )		 65x2.5t
(2) Imported servo motor and reducer

Round tube/non iron metal tube

( S=25kgf/mm )		 65x4.5t
(3) Independent R & D software system

Round tube /stainless steel tube

( S=60kgf/mm )		 65x1.6t
(4) 1-4 layer die optional

Square tube/Metal Tube

( S=40kgf/mm )		 50x50x2.3t
(5) 11 axis full motor type optional

Round bar

( S=40kgf/mm )		 33

Push-bending type, bending radius7D

Servo bending axis

precision

 0.05

RBE strongly back push bending, minimum bending radius is 1D

max speed

 180°/sec

Servo material feeding axis

precision

 0.05mm

max speed

1200mm/sec

RBE: 240mm/sec

Servo tube rotate axis

precision

 0.05

max speed

 200°/sec

Features of pipe bending machine

1. Automatic recognition of power in machine and work piece, the processing is both quick and good

2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.

3. The whole operation is in the computer, simple, quick and correct

4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation

simple,

quick and correct

5. Rebound test: comparison test on the features of lots of pipe materials

6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail

manufacture of dies.

7. Automatic drawing of the graphics of dies-clear help to develop new products

8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion,

voltage, temperature, oil pressure, and automatically diagnose the troubles

9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production

FAQ

1. How to choose the pipe/tube bending machine?

You have to inform us following details:

- Max. outside diameter

- Wall thickness range

- Bending radius (CLR)

- The pipe material

- The drawings if possible

2. Do you provide any training to make sure our user can operate the machine very well?

1) We will provide detailed video and instruction book for this machine;

2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!

3. How long warranty can you provide?

Our machine warranty is one year,and we use all the stable compoenents with long working life!

And we can also send our technician to do the after-sale service in client's factory!

4. What kind of solution you can offer to make sure your pipe bending machine can do our job?

1) We will help you confirm the model of our machine according to your offered pipe information.

2) Before you start the order for this big value machine,you can offer your workpiece drawing to us.

We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.

3) You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
