6 Stations Semi Automatic Punching Machine Aluminum Alloy Anti Theft Window Punch Machine
6 Stations Semi Automatic Punching Machine Aluminum Alloy Anti Theft Window Punch Machine
6 Stations Semi Automatic Punching Machine Aluminum Alloy Anti Theft Window Punch Machine
6 Stations Semi Automatic Punching Machine Aluminum Alloy Anti Theft Window Punch Machine
Specifications
Brand Name :
Mingzhou
Model Number :
MZ-63BZD6-220V
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1pc
Price :
USD100-10000
Payment Terms :
T/T,Western Union,MoneyGram,L/C
Supply Ability :
1000PCS PER MONTH
Delivery Time :
5-15 DAYS
Packaging Details :
Pallet, Wooden case, Wooden frame
Hydraulic motor power（kw） :
3
Cylinder Specifications （mm） :
63*100
Punching stroke（mm） :
100
Punching force（kn） :
50
Maximum pressure（Mpa） :
16
Stamping material :
Aluminum, iron, stainless steel, copper, pvc
Stamping profiles :
Pipes, angle irons, C-shaped steel, channel steel, other special-shaped materials
Square tube（mm） :
Max half hole 60*60
Full hole（mm） :
50*50
angle iron（mm） :
L 60*60
Rectangular tube（mm） :
Max50*100
Punching size and thickness（mm） :
0-0.7
power supply（v） :
220V/380V-50Hz
Control voltage（v） :
DC24V
Control system type :
E-GOAL Technology Control System
Punching frequency :
0.3-1.5 seconds/time
Oil pump model :
310Gear Pumps
operating system :
Human-machine touch screen operation
Fuel tank capacity（L） :
50
Fuel tank inspection port :
have
Fuel tank drain port :
No
Working length（mm） :
0-3000
Dimensions（mm） :
610*700*1500
Machine weight（kg） :
≈400
Protection system :
Hydraulic pressure protection, voltage protection, motor phase loss and phase sequence protection, motor overheat protection
Description

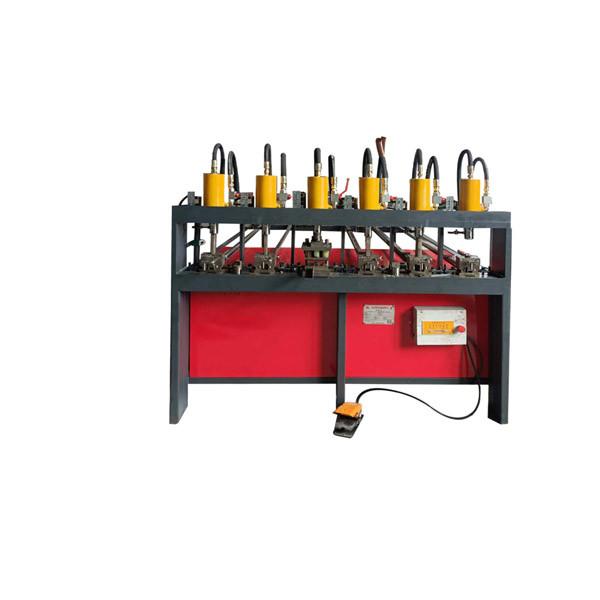

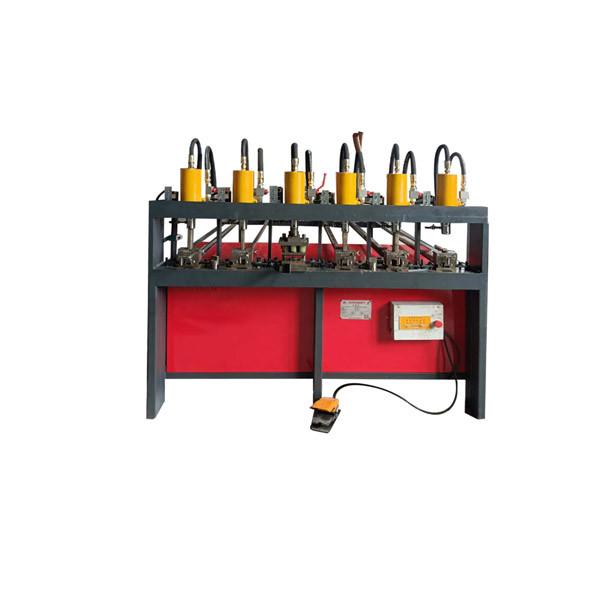

MZ-63BZD6-220V Semi-Automatic 6 Stations Aluminum Alloy Anti-Theft Window Punch Machine

FEATURES:

Optional dual servos, independent left and right working, more efficient production

C-type opening structure, convenient and quick disassembly of molds

Shelves, display racks, double tube molds, more efficient punching

One or more pipes can be punched at a time

Any hole distance can be automatically punched on the same pipe

One machine with 6 positions is equivalent to 6 ordinary punches

fast and precise punching with waves, invisible flowers.

quick and easy to operate
