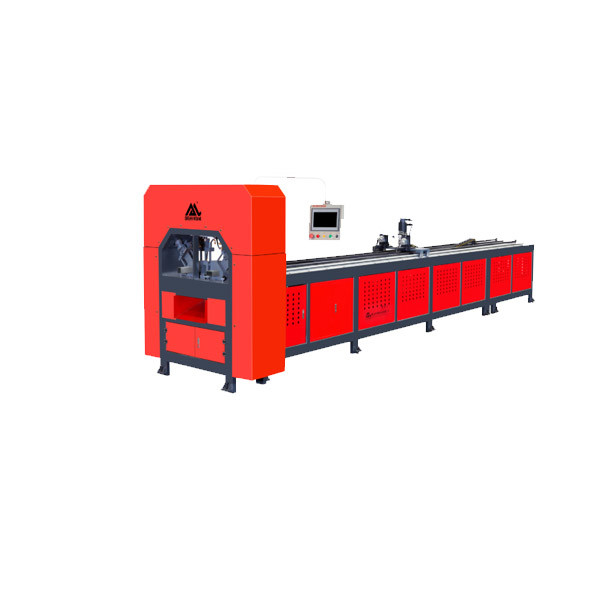

Smartly Connected Punching And Cutting Machine For Automatic Punching Machine
Smartly Connected Punching And Cutting Machine For Automatic Punching Machine
Specifications
Brand Name :
mingzhou
Model Number :
MZ-100ACZ
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pc
Price :
USD1000-10000
Payment Terms :
T/T
Supply Ability :
1000pcs
Delivery Time :
5-15 days
Packaging Details :
Wooden case, wooden frame, carton
Hydraulic motor power（kw） :
11
Cylinder Specifications（mm） :
100*100
Punching stroke（mm） :
100
Punching force（kn） :
125
Maximum pressure（mpa） :
16
Stamping material :
aluminum, iron, stainless steel, copper, pvc
Stamping profiles （mm）） :
Pipes, angle irons, C-shaped steel, channel steel, other profiles
Punching profile size （mm）） :
Square tube: Max half hole 60×60; Full hole: 50×50; Angle iron: L60×60; Rectangular tube: Max50×100
Punching size and thickness（mm） :
0-2.0
power supply （v） :
380v-50Hz
Control voltage（V） :
DC24V
Cooling method :
Forced air cooling machine
Control system type :
Closed-loop control system
Punching frequency :
0.3-1.5 seconds/time
Servo System :
Donlim servo 750w system
operating system :
Human-machine touch screen operation
touchscreen :
Kunlun Tongtai 7 inches
Planetary reducer :
Straight teeth 80-10
Rail guide :
Linear Guides SBR30-6250
Fuel tank capacity（L） :
180
Fuel tank inspection port :
have
Fuel tank drain port :
Quick ball valve
Work Light :
DC24V-LED work light
Protection system :
Hydraulic pressure protection, voltage protection, motor phase loss and phase sequence protection, motor overheat protection
Working length（mm） :
6000
Dimensions（mm） :
6800*1500*900
Machine weight（t） :
≈2.1
Description

MZ-100ACZ Smartly Connected Punching And Cutting Machine For Automatic Punching Machine


FEATURES:


Double tube film, 1-4 tubes can be processed at the same time on the left and right, 1 person can process 4 tubes, which is more efficient. The mold quick-install positioning key slot makes mold installation faster and easier.

300-degree rotating man-machine operation table allows you to operate smoothly

Inlet and outlet clamps single tube, double tube, large tube, small tube. Convenient, easy and fast adjustment

Can be connected to the mobile phone and computer for operation and management
