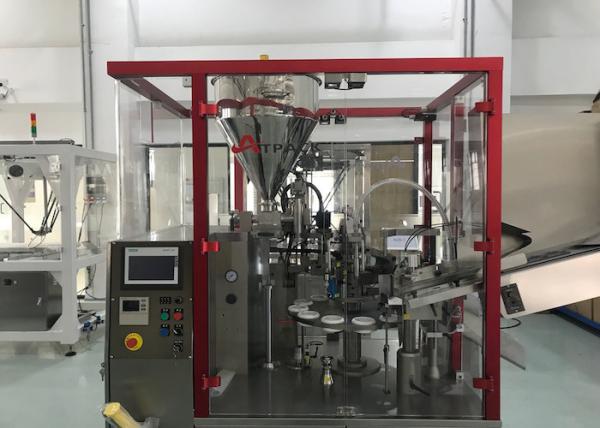

Piston Pump Tube Filling And Sealing Machine Length 50-253mm Laminated Packaging Eco Friendly

Tube Filling And Sealing Machine

The tube is moved by rotation wheel to the dosing station. Semi-solid product prepared in the semi-solid manufacturing suite shall be transferred via a mobile vessel or vat and connected to the filling machine.

Semi-solid products shall be supplied to the filling machine nozzle by vacuum or sanitary pump, as per the filling machine packaged skid design. The tube is filled with product with adjustable volume.

Then the filled tube is moved to the seal station to seal the bottom of the tube whether heat sealer or laminate crimper.

The sealed tube is conveyed out of the machine on the downstream by the transport system.

Tube Filling Machine Advantages:

· AT80 tube filling and sealing machine use cam drive as driving system. The cam process with 38 RMOAL treatment, make it solid and durable to ensure long life driving

· Use Hot Gun Heating System, patent design, the sealing is stronger, faster, more even than regular heating tube system

· Use continuously Variable Transmission Inverter to ensure the high output capacity with stable performance

· Use full closed bearing system for mechanical arm, use linear bearing for other slide shafts, to ensure oiless operation, keep the product high standard

· Two individual fluid cutting off system on the filling head station, especially add an extra air blow off system on the filling head station, ensure the machine clean operation even with high viscous fluid

· Add a bearing in the tube feeding station, make sure the feeding process smooth.

· Use cylinder to push the tubes down to the bottom, ensure they are in even position, reduce the failure rate

· Use a pulse system for photoelectric marking, improve the stability

· Intelligent failure rejecting system, it will kick out the empty tube

Tube Filling Machine​ Applications:

Competitive Advantage:

Stable, reliable and high quality machine which need less service. Very short product and size change over with precise filling accuracy. Easy operate with Siemens HMI providing English, Chinese or other language that is on request. Designed to fill and close all type of tubes available on the market with perfect respect for the product.

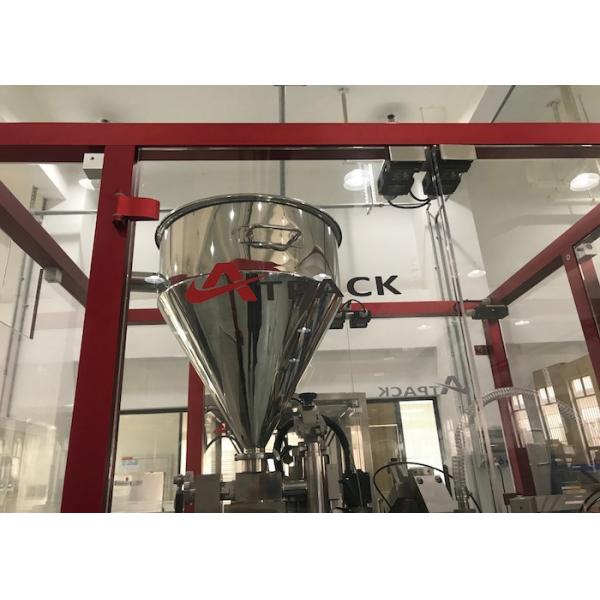

Tube Filling Machine Details:
