Health Beauty Tube Packing Machine , Toothpaste Filling Machine PLC Control Easy Operation

Tube Filling Machine​ Features:

• With high quality touch screen & PLC control system employed, convenient, visualized and reliable non-touch operation of the machine is effected.
• Compact design and auto tube feed. Driving part fully-closed.
• Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.
• Tube washing and feeding conducted pneumatically, accurate and reliable.
• Auto picketage effected by photoelectric inductance.
• Easy adjustment and dismantling.

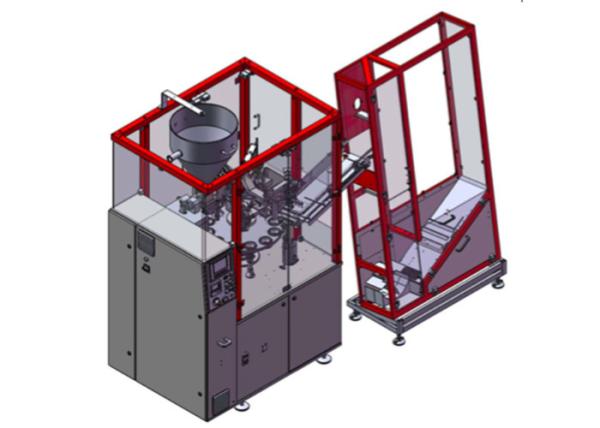

AT60 Automatic Tube Filling and Sealing Machine is a high technology machine model, design and used for filling plastic or aluminum tubes with creams, paste, gels or other similar viscous fluid, then sealing the tubes with special Hot Gun System, other process including tube feeding, photoelectric mark track, date coding, batch number coding, tube trimming and output are all fully automatic.

Tube Filling Machine Advantages:

· AT60 tube filling and sealing machine use cam drive as driving system. The cam process with 38 RMOAL treatment, make it solid and durable to ensure long life driving

· Use Hot Gun Heating System, patent design, the sealing is stronger, faster, more even than regular heating tube system

· Use continuously Variable Transmission Inverter to ensure the high output capacity with stable performance

· Use full closed bearing system for mechanical arm, use linear bearing for other slide shafts, to ensure oiless operation, keep the product high standard

· Two individual fluid cutting off system on the filling head station, especially add an extra air blow off system on the filling head station, ensure the machine clean operation even with high viscous fluid

· Add a bearing in the tube feeding station, make sure the feeding process smooth.

· Use cylinder to push the tubes down to the bottom, ensure they are in even position, reduce the failure rate

· Use a pulse system for photoelectric marking, improve the stability

· Intelligent failure rejecting system, it will kick out the empty tube

Tube Filling Machine​ Working Process:
Manual load tube to container →Automatic tube loading to tube holder → De-dusting →Positioning →Filling →Melting →Tube Sealing & Coding → Cutting →Output

Tube Filling Machine​ Applications:

Competitive Advantage:

Stable, reliable and high quality machine which need less service. Very short product and size change over with precise filling accuracy. Easy operate with Siemens HMI providing English, Chinese or other language that is on request. Designed to fill and close all type of tubes available on the market with perfect respect for the product.

Tube Filling Machine Details:
