High Output Horizontal Cartoning Machine Flexible Software Easy Installation

Cartoning Machine Features:

• Adjustable type carton magazine for stacking cartons.
• Cartons advancement through vacuum. Picking-up and erecting of cartons from the magazine is through a very reliable and modern system. Vacuum is produced with vacuum pump and relevant buffer.
• By Pick & Place unit, the carton will be picked from carton magazine and formed carton will be placed at pocket conveyor.
• Bottles will be entered from the Labeling unit in vertical position.
• Between Labeling unit and cartonator there is bottle dropper unit which helps to vertical poisiton bottle will tend to horizontal position. Then it will be placed at the input conveyor of cartonator machine.

Cartoning Machine Brief Introduction:

AP60 cartooning machine is automatic machine dedicated to cosmetics, fragrances, skin & sun care, hair care and other personal care for the packaging such as tube, bottle, lipstick, mascara, compact, jar and etc, apply for cartooning with or without liner. The functions include automatic liner loading, leaflet loading, product placing into carton, carton loading, product together with liner into carton placing, carton forming and closing and finished product taking out. Speed is at 60 pcs/min.

Horizontal Cartoning Machine​ Working Process:
The mechanical swing arm absorbs the liner and puts it into the chain plate of conveyer and forms it on four sides→ leaflet delivered to liner→ Pick the product from puck and put into liner →The liner with product are transported by conveyer to the cartooning station. Among this, fold and form the top and bottom covers→ The mechanical swing arm absorbs the carton and feeds it horizontally into limit slots of the upper and lower synchronous belt→ Push rod place the liner with product into carton→ The carton is transported to exit of limit slots of upper and lower synchronous belt. At same time, fold and form the both sides of carton→ The finished product is output to the next process for inkjet coding and packing

Horizontal Cartoning Machine​ Features:

· AP60 cartooning machine is built with high quality whatever in material and assembly and tested before shipping

· Integrate with liner, leaflet and product automatic loading functions

· Siemens PLC and HMI Screen for easy operation, flexible software/hardware upgrade application

· Digital visualization and tools free for every setting points

· Special Patent Design for liner loading and forming technology

· Output: up to 3,000pcs/hour

Horizontal Cartoning Machine​ Applications

Horizontal Cartoning Machine​ Advantages:

· AP60 cartooning machine is driven by a mechanical cam divider. The key activities of multiple stations are driven by SEW AC frequency conversion motor and cam linkage mechanism. Thus, the machine is very stable and easy to maintain.

· Much less size parts needed for new product. Reduce the cost of product mold for new product development of customer.

· Easy for product change. Clear digital display indicated when product change for each adjustment point and no special tools needed.

· By innovative design of center of liner as the basis, the liner does not need to during folding, forming and transmission. Thus, it improves forming quality and improve the quality of liner.

· Modular design for automatic leaflet loading simplify the structure and improve the stability of unit.

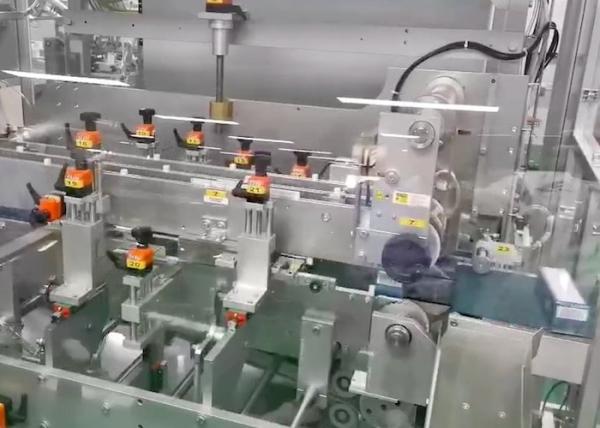

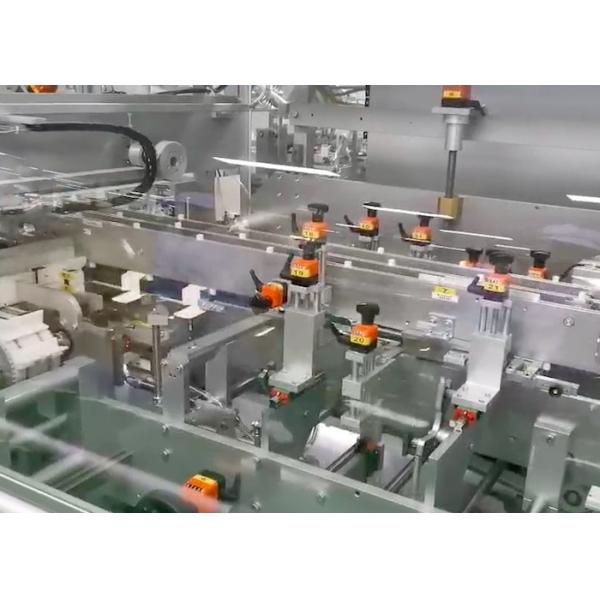

Horizontal Cartoning Machine​ Details:
