360 Kg Flake Ice Making Machine Food Cooling For Seafood Freezing
360 Kg Flake Ice Making Machine Food Cooling For Seafood Freezing
Specifications
Place of Origin :
Hunan, China
Brand Name :
ICEMEDAL
Certification :
CE
Packaging Details :
Completely ice machine we offer that include ice machine, cooling tower, water pump, water pipes and water pipe fittings.
Supply Ability :
30 Set/Sets per Month
Price :
$10,000.00/sets >=1 sets
Model Number :
BF 2000
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
≤1 Set 35 Days
Applicable Industries :
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Energy & Mining
Power :
10 KW
Dimension(L*W*H) :
2500*2000*1860mm
Weight :
360 KG
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Description

360 Kg Flake Ice Machine Food Cooling Flake Ice Machine For Seafood Freezing

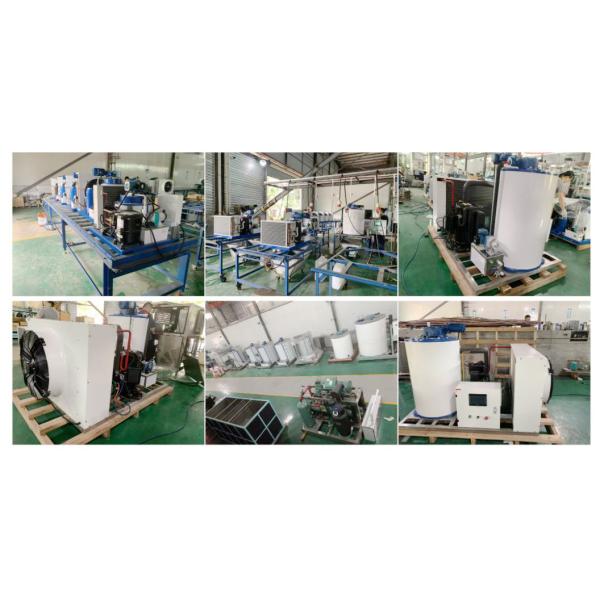

Product Picture

ICEMEDAL use a flake ice machine and an ice rake system for concrete cooling in fishery or large infrastructure projects. Flake ice is perfect to preserve aquatic goods, and we can make it seawater types. Due to the good cooling performance of the flake ice machine, we solved the problem of hydration heat in the concrete forming process. We are a reliable partner that can help you ensure the quality of your business

360 Kg Flake Ice Making Machine Food Cooling For Seafood Freezing

360 Kg Flake Ice Making Machine Food Cooling For Seafood Freezing

Product Parameters

Model Daily Output (T/24h) Cooling method Compressor Power Fan Power for Cooling Tower Cooling Pump Power Unit Size (L*W*H mm) Unit N.W. (KG)
BF 500 0.5 Air 4.1 kw -- -- 1280*800*800 160
BF 1000 1 Air 7.44 kw -- -- 1320*900*900 210
BF 2000 2 Air 10 kw -- -- 1750*1100*1050 360
BF 3000 3 Water 8.45 kw 0.37 kw 1.5 kw 1500**1250*1260 1000
BF 5000 5 Water 13.49 kw 0.75 kw 2.2 kw 1900*1500*1470 1100
BF 6000 6 Water 19.94 kw 0.75 kw 2.2 kw 1900*1500*1470 1100
BF 8000 8 Water 24.2 kw 1.5 kw 2.2 kw 2400*1900*1860 1300
BF 10000 10 Water 33.8 kw 1.5 kw 4 kw 2500*2000*1860 1500
BF 15000 15 Water 44.5 kw 1.5 kw 4 kw 3350*2150*1960 3200
BF 20000 20 Water 64 kw 1.5 kw 5.5 kw 3400*2220*2230 4200
BF 25000 25 Water 76.5 kw 2.2 kw 5.5 kw 3700*2250*2510 4600
BF 30000 30 Water 93.7 kw 2.2 kw 7.5 kw 4700*2250*2520 5000
BF 40000 40 Water 118 kw 2.2 kw 7.5 kw 5000*2300*2700 7500

Product Advantages

1.Spiral ice skate blade design does not damage the blade.
2.Continuous butt welding and spraying ensures that the evaporator is not easy to deform and reduces the mechanical resistance during the operation of the ice maker
3.Smooth circulation, low resistance, improve refrigeration effect and reduce energy consumption
4.The ice has uniform thickness, large coverage area and no dry adhesion
5.Daily Capacity: 5-20 ton 24 hours.
6.Machine power supply: 3 phase industrial power supply.



Product Applicaton & Pictures

360 Kg Flake Ice Making Machine Food Cooling For Seafood Freezing

Flake Ice Dry, pure, powder-less, not easy to block, its thickness is about 1.5mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products. Flake ice machine and an ice rake system also for concrete cooling in fishery or large infrastructure projects.

Packaging

360 Kg Flake Ice Making Machine Food Cooling For Seafood Freezing

1. Standard wooden case.
2. All required components for install the machine will be provide

FAQ

1.Q:I want to build an ice factory. How big the equipment is?

A:This needs to consider the model according to the output of ice you need in a day. The volume and ice ouput of different models are different. Refer to the parameter table on the details page.
2.Q:Where is the best place to install the equipment and what other factors need to be considered?

A:There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power
3.Q:How to transport and install equipment?
A:After the goods arrive at the port of destination, forklifts need to be arranged, and the machinery is relatively heavy.

we will tested and install well the machine before shipment, all necessary spare parts,operation,manual and CD are provided to guide the installation. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
