1300 kg Air Cooling Fresh Water Flake Ice Making Machine 3P/50Hz R22/R404R
1300 kg Air Cooling Fresh Water Flake Ice Making Machine 3P/50Hz R22/R404R
Specifications
Place of Origin :
Hunan, China
Brand Name :
Icemedal
Certification :
CE
Packaging Details :
Standard wooden case
Supply Ability :
100 Set/Sets per Month
Price :
$18,000.00/set
Model Number :
BF 8000
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
≤1 Set 35 Days
Condition :
New
Ice Shape :
Flake Ice
Voltage :
Standard power 380 V
Power :
24.2 KW
Dimension(L*W*H) :
2400*1900*1860 mm
Weight :
1300 KG
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Description

Hot Selling 1300 kg Air Cooling Fresh Water Flake Ice Machine

Product Description
Product Parameter
Model Daily Output (T/24h) Cooling method Compressor Power Fan Power for Cooling Tower Cooling Pump Power Unit Size Unit N.W. (KG)
(L*W*H mm)
BF 5000 5 Water 13.49 kw 0.75 kw 2.2 kw 1900*1500*1470 1100
BF 6000 6 Water 19.94 kw 0.75 kw 2.2 kw 1900*1500*1470 1100
BF 8000 8 Water 24.2 kw 1.5 kw 2.2 kw 2400*1900*1860 1300
BF 10000 10 Water 33.8 kw 1.5 kw 4 kw 2500*2000*1860 1500
BF 15000 15 Water 44.5 kw 1.5 kw 4 kw 3350*2150*1960 3200
BF 20000 20 Water 64 kw 1.5 kw 5.5 kw 3400*2220*2230 4200
BF 25000 25 Water 76.5 kw 2.2 kw 5.5 kw 3700*2250*2510 4600
BF 30000 30 Water 93.7 kw 2.2 kw 7.5 kw 4700*2250*2520 5000
BF 40000 40 Water 118 kw 2.2 kw 7.5 kw 5000*2300*2700 7500

Compressor brand: Bizter / Hanbell; Refrigerant: R22/R404R.

Power supply: voltage 380 V/3P/50Hz

Operating conditions: T (water supply):20℃, T (ambient): 32℃, T (condensing): 38℃, T (evaporating): -20℃

1300 kg Air Cooling Fresh Water Flake Ice Making Machine 3P/50Hz R22/R404R

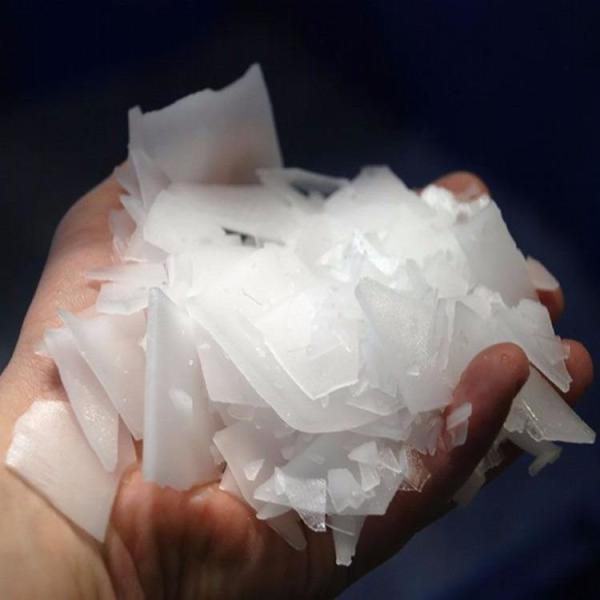

Flake ice: Thin, dry and loose flakes of white ice. Flat shapeIrregular, 15 mm - 22 mm thick, diameter approximately 12 - 45 mm.
Flake ice is dry, soft and free of sharp edges and does not. They do not pierce the frozen object. The flat shape of the flake ice. The flat shape of the flake ice minimizes damage to the frozen object and protects the packaged food.
Flake ice has a large contact area, fast cooling, storage and transportation convenient, thorough mixing, reduce heat exchange, maintain the ice temperature, and has good moisturizing effect, etc.

Application
1300 kg Air Cooling Fresh Water Flake Ice Making Machine 3P/50Hz R22/R404R

Packaging & Shipping
1300 kg Air Cooling Fresh Water Flake Ice Making Machine 3P/50Hz R22/R404R
Our Services

1300 kg Air Cooling Fresh Water Flake Ice Making Machine 3P/50Hz R22/R404R1300 kg Air Cooling Fresh Water Flake Ice Making Machine 3P/50Hz R22/R404R

Company Information

1300 kg Air Cooling Fresh Water Flake Ice Making Machine 3P/50Hz R22/R404R

Certifications

1300 kg Air Cooling Fresh Water Flake Ice Making Machine 3P/50Hz R22/R404R

FAQ

1. Questions before quotation

A. Would you make ice from seawater, saltwater or freshwater?

B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?

C. What’s the power supply?

D. What is the application of the flake ice produced?

E. Which cooling mode would you prefer to? Water or air, Evaporative cooling?

2. Installation & commissioning

A. Installed by customers according to the manuals, online instructions and live video conference of ICEMEDAL.

B. Installed by ICEMEDAL engineers.

a. ICEMEDAL would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all installations and commissioning.

b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions.

c. Power, water, installation tools and spare parts need to be ready before ICEMEDAL engineers arrive.

3. Warranty & Technical support

A. 1 year after Bill of Lading date.

B. Any failure occurred within the period due to our responsibility, ICEMEDAL will supply the spare parts for free.

C.ICEMEDAL provide full technical support and training courses after equipment installation and commissioning.

C. Permanent technical support & consultation all life long for the machines.

D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
