Automatic Rake Storage Dry Flake Ice Making Machine 4200 KG
Automatic Rake Storage Dry Flake Ice Making Machine 4200 KG
Specifications
Place of Origin :
Hunan, China
Brand Name :
ICEMEDAL
Certification :
CE
Packaging Details :
Customer only need prepare power for the machine, so machine can run.
Supply Ability :
30 Set/Sets per Month
Price :
$24,000.00/sets >=1 sets
Model Number :
BF 20000
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
≤1 Set 35 Days
Core Components :
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Video outgoing-inspection :
Provided
Weight :
4200 KG
Dimension(L*W*H) :
3400*2220*2230 mm
High and low pressure meter :
Switzerland brand
PLC control :
Germany brand Simens
Power :
64 KW
Capacity :
0.5-40 ton /24 hours
Description

Dry Ice Machine Automatic Rake Storage 4200 KG Flake Ice Maker Machine

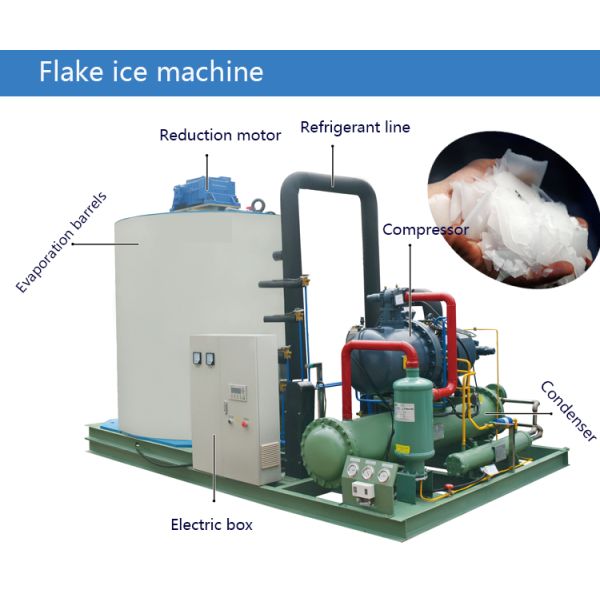

Product Feature

ICEMEDAL use a flake ice machine and an ice rake system for concrete cooling in fishery or large infrastructure projects. Flake ice is perfect to preserve aquatic goods, and we can make it seawater types. Due to the good cooling performance of the flake ice machine, we solved the problem of hydration heat in the concrete forming process. We are a reliable partner that can help you ensure the quality of your business

Automatic Rake Storage Dry Flake Ice Making Machine 4200 KG

Product Parameters

Product Parameter
Model Daily Output (T/24h) Cooling method Compressor Power Fan Power for Cooling Tower Cooling Pump Power Unit Size (L*W*H mm) Unit N.W. (KG)
BF 10000 10 Water 33.8 kw 1.5 kw 4 kw 2500*2000*1860 1500
BF 15000 15 Water 44.5 kw 1.5 kw 4 kw 3350*2150*1960 3200
BF 20000 20 Water 64 kw 1.5 kw 5.5 kw 3400*2220*2230 4200
BF 25000 25 Water 76.5 kw 2.2 kw 5.5 kw 3700*2250*2510 4600
BF 30000 30 Water 93.7 kw 2.2 kw 7.5 kw 4700*2250*2520 5000
BF 40000 40 Water 118 kw 2.2 kw 7.5 kw 5000*2300*2700 7500

Product advantage

1.Continuous butt welding and spraying ensures that the evaporator is not easy to deform and reduces the mechanical resistance during the operation of the ice maker.
2.Smooth circulation, low resistance, improve refrigeration effect and reduce energy consumption.
3.Daily Capacity: 5-20 ton 24 hours.
4.Machine power supply: 3 phase industrial power supply.
5.Evaporator and ice cutter are made of high quality material, the lifespan is ensured.
6.We provide the seawater type ice machine, which is able to use seawater to make ice.

Automatic Rake Storage Dry Flake Ice Making Machine 4200 KG

Supporting facilities

Automatic Rake Storage Dry Flake Ice Making Machine 4200 KG

Both the ice storage hopper and the ice storage bank have a function, to store prepared flake ice. Only the ice storage tank stores a larger amount of ice.

Automatic Rake Storage Dry Flake Ice Making Machine 4200 KG

Ice delivery units are usually found in containerized sheet ice machines or some large projects (projects (e.g. large rake systems) which can effectively increase the speed and efficiency of ice delivery. speed and efficiency.

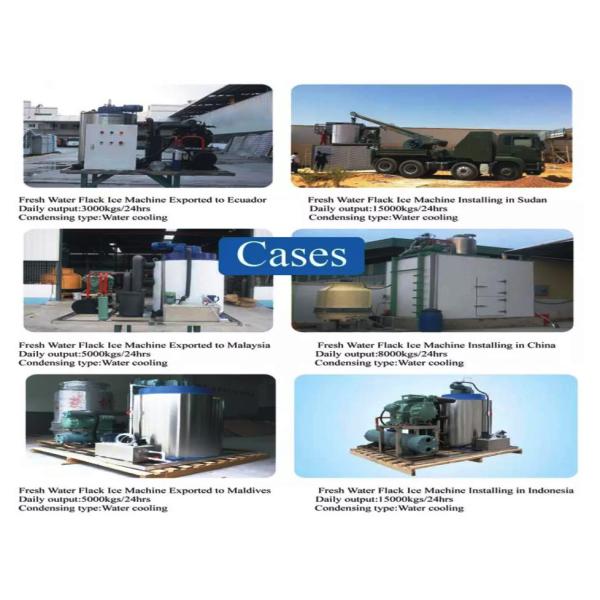

Our project

Automatic Rake Storage Dry Flake Ice Making Machine 4200 KG

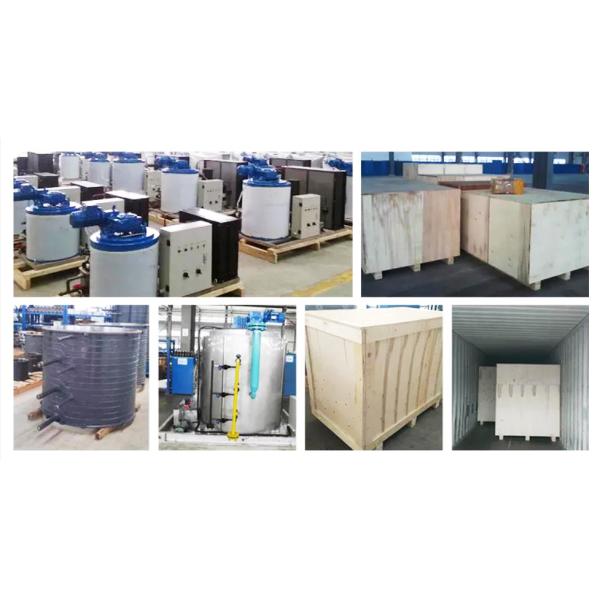

Packaging & Shipping

Automatic Rake Storage Dry Flake Ice Making Machine 4200 KG

1. Standard wooden case.
2. Completely ice machine we offer that include ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3.Customer only need prepare power for the machine, so machine can run.
4. All required components for install the machine will be provide

Certifications

Automatic Rake Storage Dry Flake Ice Making Machine 4200 KG

FAQ

1.Q:I want to build an ice factory. How big the equipment is?

A:This needs to consider the model according to the output of ice you need in a day. The volume and ice ouput of different models are different. Refer to the parameter table on the details page.
2.Q:Where is the best place to install the equipment and what other factors need to be considered?

A:There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power
3.Q:How to transport and install equipment?
A:After the goods arrive at the port of destination, forklifts need to be arranged, and the machinery is relatively heavy.

we will tested and install well the machine before shipment, all necessary spare parts,operation,manual and CD are provided to guide the installation. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
