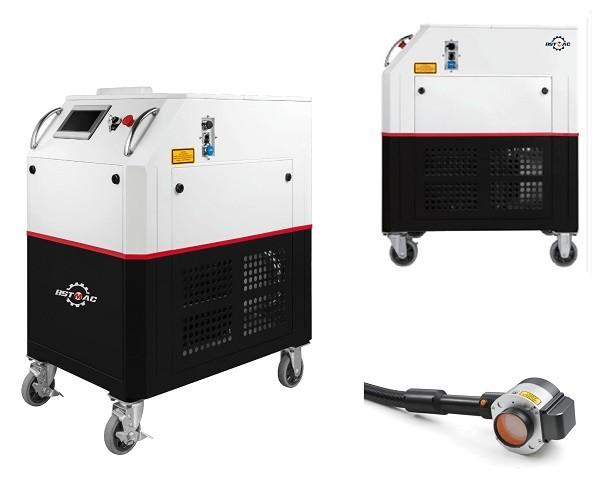

Manual Auto Fiber Laser Cleaning Machine 220V 1064nm Paint Oil Coating
Manual Auto Fiber Laser Cleaning Machine 220V 1064nm Paint Oil Coating
Specifications
Brand Name :
BST
Model Number :
BST-100FLC
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets/month
Delivery Time :
Around 15 working days
Packaging Details :
Seaworthy wooden case packing
Machine type :
Fiber laser cleaning system
Laser power :
100W
Applicable materials :
Stainless Steel, Carbon Steel, Aluminum, Metal
Laser head operating mode :
Manual/Auto
Cooling method :
Air cooling
Laser wavelength :
1064nm
Description

Paint Oil Coating Rust Removal Fiber Laser Rust Cleaning Machine Fiber Laser Cleaner

Technical Parameter

Model BST-100FLC
Max. average power 100W
Power range 10 - 100%
Max. peak power 8-10KW
Output central wavelength 1064nm
Laser wavelength bandwidth ≤ 10nm
Max. pulse energy 1.0mJ
Pulse repetition rate 20-1000kHz
Pulse width 10, 20, 30, 60, 100, 200, 250, 350ns
Power stability ≤5%rms
Beam quality <1.6M2
Fibre length 2m
Min. bending radius 75mm
Power supply 220V
Machine total power consumption < 900W
Operating temperature 0 - +40ºC
Storage temperature -20- +60ºC
Relative humidity <80%
Machine dimensions (L × W × H) 525 × 415× 685mm
Total weight 100kg
Laser head weight ≤3Kg
Laser head type 2D scanning
Laser head scanning range 100×100mm
Laser head focus length 160, 254, 330mm
Laser head operating mode Manual/Auto
Laser safety classification Class 4

Application

1. Surface rust and paint removal and stripping process.

2. Surface oil, smudge cleaning.

3. Surface coating, cladding layer removal.

4. Welding/coating surface pre-treatment.

5. Stone dust surface and attachments removal.

6. Rubber mold residue cleaning.

Features

FAQ


1. What is the speed of the laser cleaning machine?
Different laser types and cleaning requirement determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h.

2. Is it possible to clean the mold?
Yes, you can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox.

3. How’s the effect of paint and rust removal?
Very good, we can send you video to check.

4. Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed, regarding damage of material, pulse type is less than continuous type.

5. Language interface
Support Chinese and English, and language settings can also be set according to customer needs.

6. What kind of objects can be cleaned?
Oxide layer/ rusty scale/ Paint, coating/ Dirt, carbon layer/ Others.
