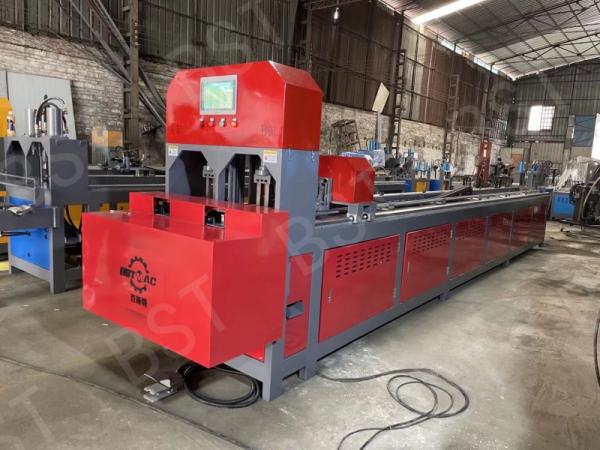

FDA Hydraulic Tube Punching Machine For 3mm Zinc Steel Galvanized Pipe
FDA Hydraulic Tube Punching Machine For 3mm Zinc Steel Galvanized Pipe
Specifications
Brand Name :
BST
Model Number :
BST-100-2-CKQG
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 sets/month
Delivery Time :
Around 15 working days
Packaging Details :
Seaworthy wooden case packing
Machine type :
Hydraulic pipe punching machine
Function :
Punching and cutting
Processing thickness :
Max. 2.5mm stainless steel, 3mm galvanized steel, aluminum and iron tubes and profiles
Processing length :
6000mm or customized
Qty of working stations :
2 working stations
Qty of tubes can be processed at the same time :
1-4 tubes or more
Hydraulic oil to be used :
46#
Control System :
10 Inches PLC Touch Screen Control System
Tube Clamping Way :
Pneumatic Clamping
Machine Color :
Blue Or Red Or Customized
Description

Hydraulic Zinc Steel Galvanized Steel Tube Punching Machine


Machine Introduction & Features

* It is the domestic most advanced multi-function hydraulic machine combined punching and cutting, which can do hole punching and cutting of plate, square tube, round tube, rectangular tube and all kinds of profiles and non-standard workpieces.


* It can punch and cut the workpiece for several times/many times.

* The distance and stroke of punching and cutting can be adjusted, and the mould can be changed.

* Input the holes number, the control system can automatically calculate the hole distance.


* The feeding speed can be adjusted, after the operator inserts the material, the machine will do automatic feeding, automatic punching and automatic cutting.


* Touch screen and PLC control, the operating system is user-friendly, convenient and simple.

Technical Parameter

Hydraulic Zinc Steel Galvanized Steel Tube Punching Machine
Model BST-100-2-CKQG
Hydraulic motor power 11KW
Oil cylinder specs. 100*100mm
Punching stroke 100mm
Punching force 100Kn
Max. pressure 16Mpa
Punching materials and objects Aluminum, iron, stainless steel, brass, copper, PVC tubes and profiles. Angle iron, C-shape steel, channel steel and other irregular shaped profiles.
Profiles punching size Square tube: Max. 60*60mm (half hole punching), 50*50mm (full hole punching). Angle iron: L60*60mm. Rectangular tube: Max. 50*100mm.
Power supply 380V-50Hz
Control voltage DC24V
Cooling method Forced air cooling 150L
Control system type Closed loop control system
Punching frequency 0.3-1.5S/Time
Servo system 750W
Operating system User-friendly touch screen operation
Touch screen 10 inches big screen
Guide rail Linear guide rail
Oil tank capacity 200L
Oil tank inspection port Available
Oil tank drain Quick ball valve type
Working light DC24V-LED working light
Protection System Hydraulic pressure protection, voltage protection, motor phase loss and phase sequence protection, motor overheating protection
Working length 6000mm
Overall dimension L 7000* H 1500* W1200mm
Machine weight 2200kg
Welcome to inquire for more details. We can provide customization services according to customers' needs.

Samples

Application industries

Company introduction


Foshan BST Machinery is the first professional company in China which focuses on R&D of tube punching equipments and moulds. Our company’s products, hydraulic high-speed punching machines and automatic calibration safety moulds, are highly recognized and praised by the industries of stainless steel/ aluminum/ zinc steel security nets, guardrails, shelves, fences, furnitures, steel structures, doors and gates, etc.

We also specialize in some other machineries such as fiber laser cutting machine, CO2 laser cutting machine, laser welding machine, laser cleaning machine, laser marking machine, etc.
