Φ10-220mm

□10-150mm

High Compatibility for Tubes And Profiles Cutting

Based on the bus real-time system and the integrated follow-up control, fast cutting and stable following of the tube corner can be achieved, ensuing reliable cutting quality.

Optional tube nesting software TubesT which supports angle steel/ channel beam/ I-beam toolpath editing makes it easier to draw 3D graphics and co-edge cutting, saving time and materials.

Protection Covering

Aluminum cover helps to improve the corrosion resistance and sealing performance.

Strong Load-Bearing Capacity

Full stroke external roller increases chuck clamping trust and bearing capacity.

Safety Protection

Equipped with the pressure holding function, the holding time in up to 8 hours, which can avoid safety accidents caused by accidental power for gas failure.

High Rigidity

Strong clamping force and anti-skid claw makes the tubes not easy to fall off.

Easy Debugging

Easily installed by keyway groove positioning, convenient to debug the claw.

Special-shaped Tubes

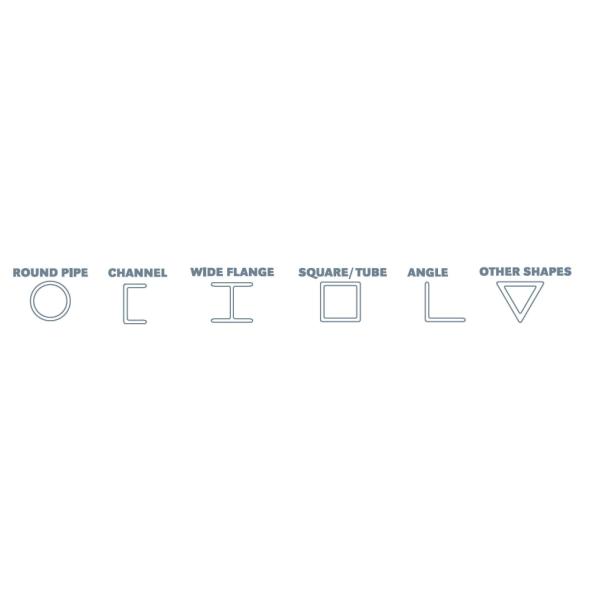

Except normal round pipe, square tube and rectangular, other special shapes like triangular, oval, H-beam, U-channel, open shaped structural beams can be firmly holder by the chuck without deformation.

Less Waste Tailing

The rear claw can be extended into the front chuck to realize ultra-short tailing cutting.

Two Shapes Sides Compatible For Tubes And Profiles

T-shaped for round and square tubes and pipes, another V-shaped for triangular, oval, rectangular and other special shapes.

Maximum Protection From Drops or Damage

The roller support will move vertically to support the tube/pipe during processing.

High Precision Cutting

Following up and down to effectively avoid shaking of the pipe/tube, guarantee high precision laser cutting.

Strong Stability

Four-roller design, it works with the servo roller support, double ensure higher stability.

Good Dynamic Performance

Fast reaction speed, wear-resistant structure to prevent the pipe/tube from scratching in the processing of turning over.

Stable Structure and Strong Bearing Capacity

The triangle structure of 45 degree inclined linear guide rail, original guide rail and linear guide rail makes the structure more stable, the bearing capacity stronger and the precision higher

Renowned Brand

The rack and pinions, and guide rail are introduced from famous Taiwan brands, which have excellent durability, accuracy, strength and wear resistance.

Easy Maintenance

Gear transmission characterizes high transmission efficiency, high peripheral speed, accurate transmission ratio, long service life.

High Efficiency Transmission

Constant instantaneous transmission ratio and high working stability, higher meshing accuracy.
