380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes
380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes
Specifications
Brand Name :
BST
Model Number :
BST-1500FLW
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 sets/month
Delivery Time :
Around 15 working days
Packaging Details :
Seaworthy wooden case packing
Machine type :
Handheld fiber laser welding machine
Laser power :
1000W/ 1500W/ 2000W
Welding mode :
Spot welding or continuous welding
Applicable materials :
Stainless steel, carbon steel, copper, brass, aluminum, galvanized plates and tubes
Welding head weight :
1.2KG
Machine power supply :
220/380V
Description

Handheld Aluminum Laser Welding Machine For Stainless Steel Plates And Tubes

Advantages

1. Welding speed is fast, about 2-10 times faster than traditional welding, and it does not hurt the eyes.

2. The machine operation is simple and easy to learn, even new operator can easily weld beautiful products.

3. Easy to pull, the weld results are smooth and beautiful, basically no additional grinding process, saving time and labor costs.

4. High-precision laser welding head makes up for the disadvantage of small laser welding spot, expands the tolerance range of the processed parts and the width of the weld seam, in order to obtain a better weld forming effect.

5. The welding work-piece is not deformed, no welding scars, and the welding is firm.

380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes

Technical Parameter

Name Parameters
Interface Type QBH
Laser incidence Coaxial
Laser power 1000W, 1500W, 2000W
Laser wavelength 1070
Collimated focal length 50mm
Focusing length 100mm
Protective gas Nitrogen or Argon
Welding head weight 1.2KGS for Handheld swing welding head
Cooling method Built-in water cooling
Wire feeding method Motor driven automatic wire feeding (optional)
Wire feeding material 304 stainless steel/carbon steel
Wire feeding speed 17m/min
Wire feeding tube length 3m/5m
Electricity demand 220/380V
Machine size 1000*650*1100mm

Machine details

380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes

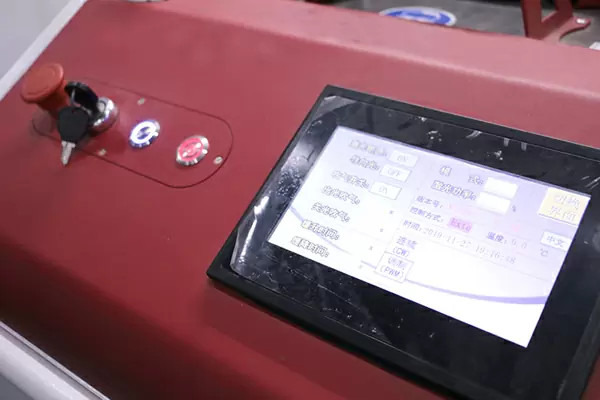

Highly Responsive Touch Screen

Multi-language optional interface, simply click and enter parameter to operate welding machine. It can quickly and effectively respond to your touch commands.

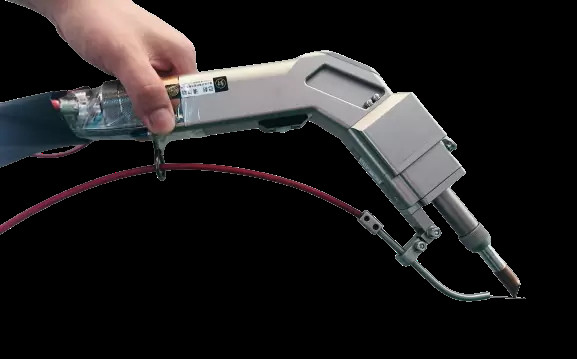

Ergonomic Handheld Welding Gun

The welding head is compact and lightweight, very comfortable and easy to use and operate.

 380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes
380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes

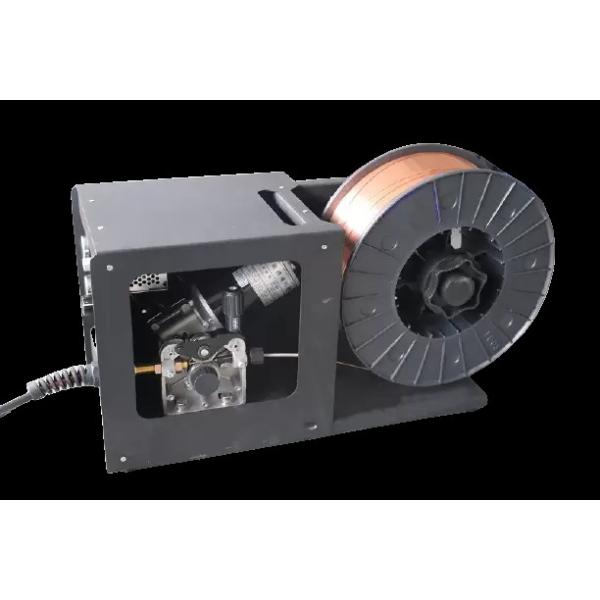

Wire Feeder Options

Handheld laser welding machine is compatible with wire feeders, the built-in wobble functionality increase productivity.

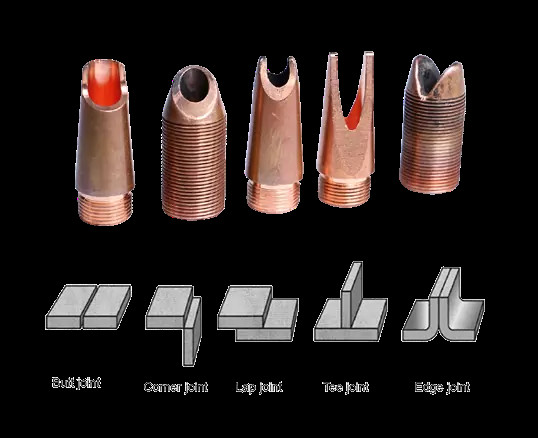

Versatility

The welding head capable of equipping with a variety of angular copper nozzles to meet the needs of different products with complex and irregular welding processes.

Smoothly and reliably welding various types, such as butt joint, corner joint, lap joint, tee joint, edge joint and etc.

380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes

Applications

The handheld fiber laser welding machine is suitable for welding stainless steel, aluminum alloy, carbon steel, silicon steel sheet, titanium, tantalum and other metals, and even dissimilar materials.

Practical laser welding machine widely used in in cabinets, kitchens, elevator, shelves, billboards, doors and window guardrail, handrail, chassis, water tanks, distribution boxes, steel furniture, sheet metal and other industries.

380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes

Welding Parameters

380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes

Samples

380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes

380V 1KW Aluminum Handheld Laser Welding Machine For Stainless Steel Plates And Tubes
