Aluminum CNC Hydraulic Tube Punching Machine
Aluminum CNC Hydraulic Tube Punching Machine
Specifications
Brand Name :
BST
Model Number :
BST-80-2-CKQG
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets/month
Delivery Time :
Around 15 working days
Packaging Details :
Seaworthy wooden case packing
Type :
High-speed hydraulic punching machine
Function :
Punching and cutting
Processing materials :
Aluminum, galvanized steel, stainless steel, iron tubes & profiles
Working length :
6000mm or customized
Control mode :
CNC
Automatic grade :
Automatic
Control system :
User-friendly touch screen control system
Cooling method :
Air cooling
Color :
Blue or Red or customized
Tube clamping way :
Pneumatic clamping
Description

Full Automatic Tube Hole Punching And Cutting Machine

Features

This full automatic CNC punching and cutting machine was developed on the basis of the original automatic CNC punching machine. The original two processes of punching after cutting are effectively combined into one, which reduces the cutting step, secondary handling and space. It also ensures the accuracy of the product's cutting and punching dimensions, effectively reducing the labor intensity of workers, improving production efficiency, and enhancing the competitiveness of enterprises.

Basic system parameter setting: Set the working modes of the left and right two working stations, count the workload, and set the servo motor related parameters.

Full automatic punching system: Automatic calculation of equal hole distances and unequal hole distances, random combination of punching and cutting unequal holes, full hole/half hole and skipping without punching can be controlled at random.

Technical Parameter

Automatic CNC punching and cutting machine
Model BST-80-2-CKQG BST-100-2-CKQG BST-125-2-CKQG
Hydraulic motor power 7.5KW 11KW 11KW
Oil cylinder specs. 80*100mm 100*100mm 125*100mm
Punching stroke 100mm 100mm 100mm
Punching force 80Kn 100Kn 196Kn
Max. pressure 16Mpa 16Mpa 16Mpa
Punching materials and objects Aluminum, iron, stainless steel, brass, copper, PVC tubes and profiles. Angle iron, C-shape steel, channel steel and other irregular shaped profiles.
Profiles punching size Square tube: Max. 60*60mm (half hole punching), 50*50mm (full hole punching). Angle iron: L60*60mm. Rectangular tube: Max. 50*100mm.
Power supply 380V-50Hz
Control voltage DC24V
Cooling method Forced air cooling 100L Forced air cooling 150L
Control system type Closed loop control system
Punching frequency 0.3-1.5S/Time 0.8 -2.0S/Time
Servo system 750W 1KW
Operating system User-friendly touch screen operation
Touch screen 7 inches
Guide rail Linear guide rail
Oil tank capacity 138L 200L 200L
Oil tank inspection port Available
Oil tank drain Quick ball valve type
Working light DC24V-LED working light
Protection System Hydraulic pressure protection, voltage protection, motor phase loss and phase sequence protection, motor overheating protection
Working length 6000mm
Overall dimension L 7000* H 1500* W1200mm L 7000* H 1500* W1200mm L 7000* H 1500* W1200mm
Machine weight 2T 2.2T 2.5T
Welcome to inquire for more details. We can provide customization services according to customers' needs.

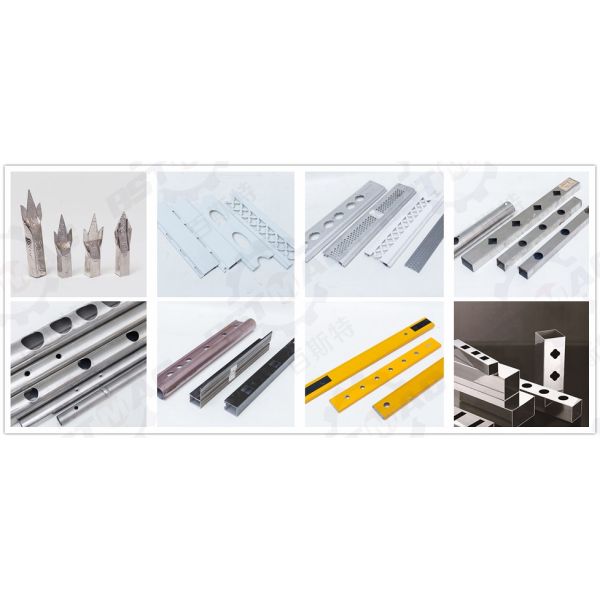

Samples
