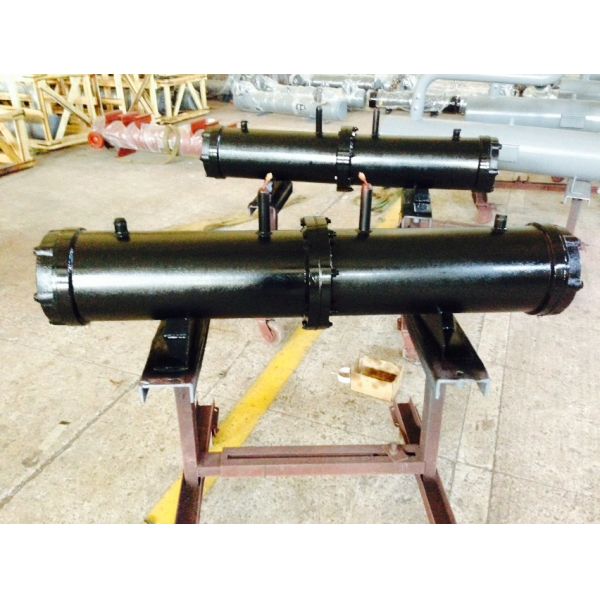

Brine Seawater Cooled Condenser , Industrial Heat Exchangers 18kw-4000kw
Brine Seawater Cooled Condenser , Industrial Heat Exchangers 18kw-4000kw
Specifications
Brand Name :
GREEFOUN
Model Number :
QXC35D6
Certification :
CE
Place of Origin :
CHINA
MOQ :
1piece
Payment Terms :
TT, L/C, Western Union
Supply Ability :
100000pieces/year
Delivery Time :
within 15days
Packaging Details :
Standard Export Package
Tube material :
Copper tube
Shell material :
Seamless steel pipe
Tube medium :
water
Capacity range :
18kw~4000kw
Refrigerant :
R22/R134a/R407C/R410A
Type :
water cooled, water source heat pump
Description

Brine Condenser Sea Water Condenser

Tube Heat Exchanger

1, Introduction:

(1) The product is applicable to water chiller units, water source heat pump units etc.

(2) Suitable refrigerants are R22, R134a, R407C, R410A etc.

(3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and

glycol solution, sulfate solution, etc.

(4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel

tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.

2, Heat exchange tube: two main specifications.


(1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.


(2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe

3, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.


4, Interface:

CONDENSER SERIES DOUBLE CIRCUIT

CAPACITY: 10RT TO 40RT

Model Refrig. ton (RT) Refrig. ton (104kcal/h) Dimension (mm) Weight (kg) Max. water flow
D T1 T A C C2 E
QXC10D6 10 3.78 168 483 1065 75 185 233 92 78 7.8
QXC15D6 15 5.67 168 635 1369 75 185 233 92 85 11.6
QXC20D6 20 7.56 168 819 1737 90 185 233 92 96 15.8
QXC25D6 25 9.45 219 819 1755 90 238 285 113 132 19.5
QXC30D6 30 11.34 219 819 1755 90 238 285 113 137 23
QXC35D6 35 13.23 219 819 1755 90 238 285 113 145 27.3
QXC40D6 40 15.12 219 953 2024 90 238 285 113 162 31

Model S (Vent)

P (fluoride inlet)

Copper pipe diameter (inch)

L(fluoride outlet)

Copper pipe diameter (inch)

 W (standard port)
FPT(inner pipe thread) FPT(inner pipe thread)
QXC10D6 1/4 5/8 5/8 1-1/2
QXC15D6 1/4 7/8 5/8 1-1/2
QXC20D6 1/4 7/8 5/8 1-1/2
QXC25D6 1/4 1-1/8 7/8 2
QXC30D6 1/4 1-1/8 7/8 2-1/2
QXC35D6 1/4 1-3/8 7/8 2-1/2
QXC40D6 1/4 1-3/8 7/8 2-1/2

VERTICAL ACCUMULATOR CAPACITY 10L TO 80L

Models L Dimension (mm) Kg
D A B H1 H2
QXR10L 10 273 220 220 300 350 21
QXR15L 15 273 220 220 400 450 26
QXR20L 20 325 280 280 400 450 35
QXR30L 30 355 300 300 450 500 47
QXR40L 40 355 300 300 600 650 58
QXR60L 60 426 360 360 600 650 76
QXR80L 80 426 360 360 600 850 97

Models S (pipe thread) P1 P2
FPT Pipe diameter (inch) Pipe diameter (inch)
QXR10L 3/8 7/8 7/8
QXR15L 3/8 1-1/8 1-1/8
QXR20L 3/8 1-3/8 1-3/8
QXR30L 3/8 1-3/8 1-3/8
QXR40L 3/8 1-3/8 1-3/8
QXR60L 3/8 1-5/8 1-5/8
QXR80L 3/8 1-5/8 1-5/8
