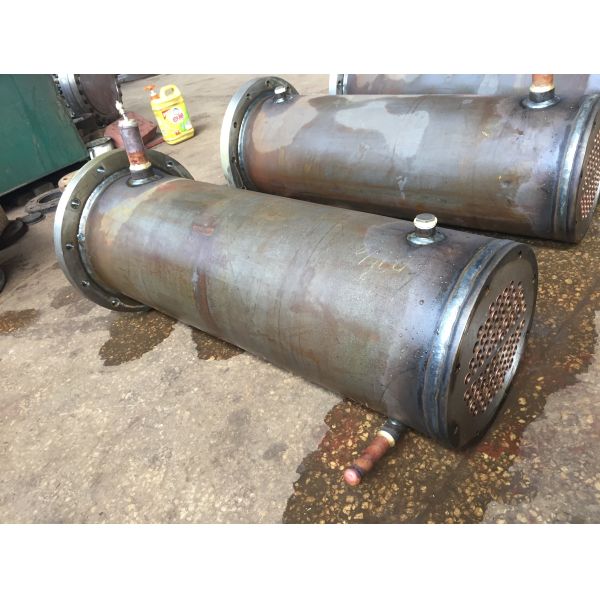

Loose Flange Sea Water Condenser , Shell Type Heat Exchanger R407c Refrigerant
Loose Flange Sea Water Condenser , Shell Type Heat Exchanger R407c Refrigerant
Specifications
Brand Name :
GREEFOUN
Model Number :
QXC55D6
Certification :
CE
Place of Origin :
CHINA
MOQ :
1piece
Payment Terms :
TT, L/C, Western Union
Supply Ability :
100000pieces/year
Delivery Time :
within 15days
Packaging Details :
Standard Export Package
Tube material :
Stainless steel
Refrigerating medium :
Sea water
Connection type :
loose flange
Capacity range :
18kw~4000kw
Refrigerant :
R407c
Type :
water cooled, water source heat pump
Description

Industrial Used Sea Water Condenser

Water - Cooled Condenser

1, Introduction:

(1) The product is applicable to water chiller units, water source heat pump units etc.

(2) Suitable refrigerants are R22, R134a, R407C, R410A etc.

(3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and

glycol solution, sulfate solution, etc.

(4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel

tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.

2, Heat exchange tube: two main specifications.


(1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.


(2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe

3, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.


4, Interface:

Dry type spiral baffle plate evaporator, flooded evaporator, built-in oil separator condenser, sea water

condenser, stainless steel heat exchanger, oil cooler

CONDENSER SERIES SINGLE CIRCUIT

CAPACITY: 3RT TO 15RT

Model Refrig. ton (RT) Refrig. ton (104kcal/h) Dimension (mm) Weight (kg) Max. water flow
D T1 T A C E
QXC3S4 3 1.134 114 635 721 75 140 70 23 2.5
QXC5S5 5 1.890 140 635 721 75 165 70 33 4
QXC8S6 8 3.024 168 762 858 90 185 92 49 6.5
QXC10S6 10 3.780 168 953 1049 90 185 92 58 7.8
QXC12S6 12 4.536 168 953 1049 90 185 92 62 9.6
QXC15S6 15 5.670 168 1270 1366 100 185 92 75 11.6

Model S (Vent)

P (fluoride inlet)

Copper pipe diameter (inch)

L(fluoride outlet)

Copper pipe diameter (inch)

 W (standard port) W (optional port)
FPT(inner pipe thread) FPT(inner pipe thread) FPT(inner pipe thread)
QXC3S4 1/4 5/8 5/8 1 3/4
QXC5S5 1/4 5/8 5/8 1-1/2 1
QXC8S6 1/4 7/8 5/8 1-1/2 1
QXC10S6 1/4 7/8 5/8 1-1/2 1
QXC12S6 1/4 1-1/8 7/8 1-1/2 1
QXC15S6 1/4 1-1/8 7/8 1-1/2 1

CONDENSER SERIES SINGLE CIRCUIT

CAPACITY: 40RT TO 60RT

Model Refrig. ton (RT) Refrig. ton (104kcal/h) Dimension (mm) Weight (kg) Max. water flow
D T1 T A C E
QXC40S10 40 15.12 273 1600 1750 120 273 85 172 31
QXC45S10 45 17.01 273 1600 1750 120 273 85 180 35
QXC50S10 50 18.90 273 2032 2182 120 273 85 209 38.5
QXC55S10 55 20.79 273 2032 2182 120 273 85 217 42.5
QXC60S10 60 22.68 273 2032 2182 120 273 85 224 46

Model S (Vent)

P (fluoride inlet)

Copper pipe diameter (inch)

L(fluoride outlet)

Copper pipe diameter (inch)

 W (standard port) W (optional port)
FPT(inner pipe thread) FPT(inner pipe thread) FPT(inner pipe thread)
QXC40S10 3/8 1-5/8 1-1/8 3 2-1/2
QXC45S10 3/8 1-5/8 1-1/8 3 2-1/2
QXC50S10 3/8 1-5/8 1-1/8 3 2-1/2
QXC55S10 3/8 1-5/8 1-3/8 3 2-1/2
QXC60S10 3/8 1-5/8 1-3/8 3 2-1/2

U SHAPED TUBE DRY EVAPORATOR (DOUBLE CIRCUIT)

CAPACITY: 35KW TO 95KW

Models QXU35D6 QXU47D6 QXU56D6 QXU65D8 QXU80D8 QXU95D8

Rated data

Refrigerant R22

ti=12°C te=2°C

tu=7°C Dts=5°C

 Qn KW 35 47 56 65 80 95
Kcal/h(×103 ) 30.2 40.4 48.2 56.7 68.8 81.7
Wn m3 /h 6 8 9.6 11.4 13.8 16.4
Wm m3 /h 10 11.4 12 14.5 19 21
Dpn bar 0.27 0.41 0.35 0.39 0.42 0.46

Models QXU35D6 QXU47D6 QXU56D6 QXU65D8 QXU80D8 QXU95D8
Dimension(mm) A 1275 1407 1431 1431 1631 1781
B 168 168 168 168 219 219
C 107 107 161 161 200 200
D 1040 1190 1030 1180 1380 1530
E 200 200 200 240 240 240
Vent S1 1/2 1/2 1/2 1/2 1/2 1/2
Outlet S2 1/2 1/2 1/2 1/2 1/2 1/2
Connection W(DN) 50 50 50 50 65 65
D1(mm) 16 16 22 22 22 22
D2(mm) 22 22 35 35 35 35
P(kg) 72 78 88 93 125 136

Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

Dpn-pressure drop of recirculating cooling water Dts-overheat temperature

OIL SEPARATOR

CAPACITY 50L TO 200L

Models L Dimension (mm) Kg
A B C D D1 E F
QXYFQ50L 50 600 280 180 325 273 390 420 90
QXYFQ75L 75 650 300 200 325 273 438 460 120
QXYFQ95L 95 650 320 220 377 325 462 500 142
QXYFQ120L 120 750 350 250 426 355 492 550 168
QXYFQ150L 150 800 400 300 480 377 410 560 190
QXYFQ170L 170 950 480 380 530 426 638 700 258
QXYFQ200L 200 1180 480 380 530 426 868 930 286

Models Corresponding cooling capacity INLET a OUTLET b Return opening k
KW Copper tube external diameter (mm) Copper tube external diameter (mm) Copper tube external diameter (mm)
QXYFQ50L 150-250 54 54 16
QXYFQ75L 260-450 67 67 16
QXYFQ95L 460-650 80 80 19
QXYFQ120L 660-850 92 92 19
QXYFQ150L 960-1150 105 105 19
QXYFQ170L 1160-1350 105 105 19
QXYFQ200L 1360-1600 133 133 19
