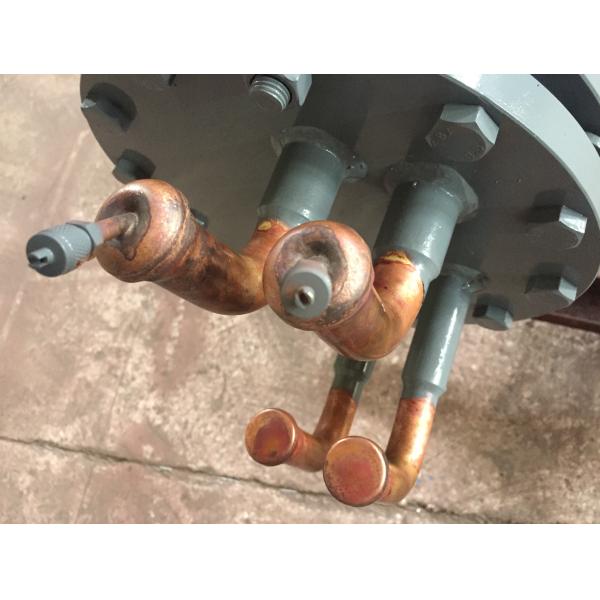

Water Cooled Stainless Steel Condenser , Durable Shell In Tube Heat Exchanger
Water Cooled Stainless Steel Condenser , Durable Shell In Tube Heat Exchanger
Specifications
Brand Name :
GREEFOUN
Model Number :
QXC75D6
Certification :
CE
Place of Origin :
CHINA
MOQ :
1piece
Payment Terms :
TT, L/C, Western Union
Supply Ability :
100000pieces/year
Delivery Time :
within 15days
Packaging Details :
Standard Export Package
Type :
Shell and tube type
Refrigerating medium :
tap/underground/river/sea water, brine, glycol/sulfate solution
Application :
Refrigeration industry
Capacity range :
18kw~4000kw
Refrigerant :
R22/R134a/R407C/R410A
Shell material :
seamless/304,316Lstainless steel pipe
Description

Industrial water - Cooled Condenser

Stainless Steel Tube Heat Exchanger

1, Introduction:

(1) The product is applicable to water chiller units, water source heat pump units etc.

(2) Suitable refrigerants are R22, R134a, R407C, R410A etc.

(3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and

glycol solution, sulfate solution, etc.

(4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel

tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.

2, Heat exchange tube: two main specifications.


(1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.


(2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe

3, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.


4, Interface:

CONDENSER SERIES SINGLE SYSTEM

CAPACITY: 40RT TO 70RT

Model Refrig. ton (RT) Refrig. ton (104kcal/h) Dimension (mm) Weight (kg) Max. water flow
D T1 T A C E H1 H2
QXC40S10A 40 15.12 273 1600 2053 120 360 150 350 240 204 31
QXC45S10A 45 17.01 273 1600 2053 120 360 150 350 240 212 35
QXC50S10A 50 18.90 273 2032 2485 120 360 150 350 240 240 38.5
QXC55S10A 55 20.79 273 2032 2485 120 360 150 350 240 249 42.5
QXC60S10A 60 22.68 273 2032 2485 120 360 150 350 240 256 46
QXC65S10A 65 24.57 273 2032 2485 120 360 150 350 240 264 49.2
QXC70S10A 70 26.46 273 2032 2485 120 360 150 350 240 270 53.5

Model S (Vent)

P (fluoride inlet)

Copper pipe diameter (inch)

L(fluoride outlet)

Copper pipe diameter (inch)

 W (standard port) W (optional port)
FPT(inner pipe thread) Male flange Male flange
QXC40S10A 3/8 1-5/8 1-1/8 DN65 DN65
QXC45S10A 3/8 1-5/8 1-1/8 DN65 DN65
QXC50S10A 3/8 1-5/8 1-1/8 DN65 DN80
QXC55S10A 3/8 1-5/8 1-1/8 DN65 DN80
QXC60S10A 3/8 1-5/8 1-3/8 DN65 DN80
QXC65S10A 3/8 1-5/8 1-3/8 DN65 DN80
QXC70S10A 3/8 2-1/8 1-3/8 DN80 DN80

CONDENSER SERIES DOUBLE SYSTEM CAPACITY: 50RT TO 200RT

Model Refrig. ton (RT) Refrig. ton (104kcal/h) Dimension (mm) Weight (kg) Max. water flow
D T1 T A C E H1 H2
QXC50D10A 50 18.9 273 953 2364 90 360 150 350 240 265 38.5
QXC60D10A 60 22.68 273 953 2364 90 360 150 350 240 279 46
QXC70D12A 70 26.46 325 953 2377 90 406 180 350 240 359 53.5
QXC80D12A 80 30.24 325 953 2377 90 406 180 350 240 375 61
QXC100D12A 100 37.80 325 953 2377 90 406 180 350 240 409 76
QXC120D12A 120 45.36 325 1270 3011 120 406 180 350 240 481 91
QXC140D14A 140 52.92 355 1270 3018 120 440 200 350 240 553 106
QXC160D16A 160 60.48 426 1600 3656 120 510 260 310 310 723 120.6
QXC200D16A 200 75.60 426 1600 3656 120 510 260 310 310 777 150.8

Model S (Vent)

P (fluoride inlet)

Copper pipe diameter (inch)

L(fluoride outlet)

Copper pipe diameter (inch)

 W (standard port)
FPT(inner pipe thread) Male flange
QXC50D10A 3/8 1-3/8 7/8 DN65
QXC60D10A 3/8 1-5/8 1-1/8 DN65
QXC70D12A 3/8 1-5/8 1-1/8 DN80
QXC80D12A 3/8 1-5/8 1-1/8 DN80
QXC100D12A 3/8 2-1/8 1-3/8 DN100
QXC120D12A 3/8 2-1/8 1-3/8 DN100

GAS-LIQUID SEPARATOR

CAPACITY 30L TO 120L

Models L Dimension (mm) Kg
D A B H1 H2
QXQF30L 30 355 220 220 450 500 21
QXQF40L 40 355 220 220 600 650 26
QXQF60L 60 426 300 300 600 650 47
QXQF80L 80 426 300 300 800 850 58
QXQF100L 100 426 360 360 1000 1050 76
QXQF120L 120 426 360 360 1200 1250 97

Models S (pipe thread) P1 P2
FPT Pipe diameter (inch) Pipe diameter (inch)
QXQF30L 3/8 1-5/8 1-5/8
QXQF40L 3/8 1-5/8 1-5/8
QXQF60L 3/8 2-1/8 2-1/8
QXQF80L 3/8 2-1/8 2-1/8
QXQF100L 3/8 2-5/8 2-5/8
QXQF120L 3/8 3-1/8 3-1/8``
