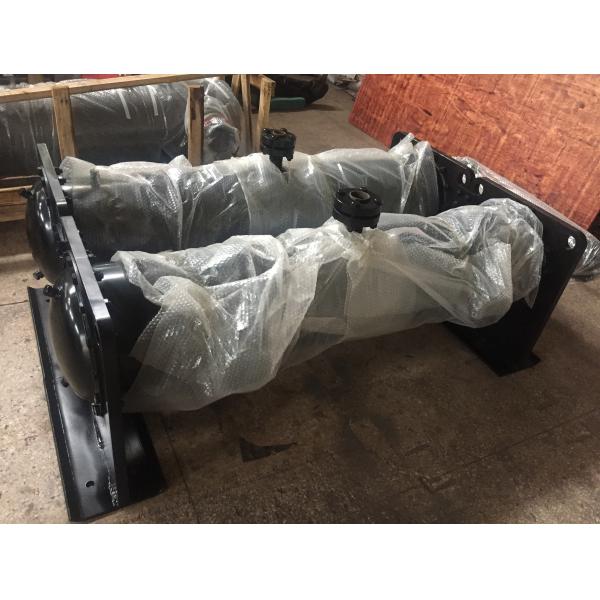

Horizontal Loose Flange Tube And Tube Heat Exchanger For Air Conditioning System
Horizontal Loose Flange Tube And Tube Heat Exchanger For Air Conditioning System
Specifications
Brand Name :
GREEFOUN
Model Number :
MYZ100
Certification :
CE
Place of Origin :
CHINA
MOQ :
1piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100000pieces per year
Delivery Time :
within 15days
Packaging Details :
Standard export package
Cooling capacity :
18KW~4000KW
Refrigerant :
R404a
Type :
Falling film type
Shell material :
No.20 steel
Connection type :
Loose flange
Heat exchange tube :
Copper tube
Description

Tube Heat Exchanger Falling Film Type

Evaporator for Air Conditioning System

We produce Tube Heat Exchanger Falling Film Type Evaporator for Air Conditioning System is applicable

to water units, water source heat pump units, etc.

Suitable refrigerants of R22, everything,, R407C, R410A, etc.

Apply load cold agent for tap water, underground water, river water and sea water or brine, water and

glycol solution, sulfate solution, etc.

For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,

etc. Shell using seamless steel pipe, stainless steel tube, etc.


1, Heat exchange tube: there are two main specifications.


(1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.


(2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe

2, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.


3, Interface:


(1) main type load cooling interface flange, thread and clamp type. According to the demand of users.


(2) the refrigerant interface are mainly brass brazing type, loose flange connection type and tenon

surface flange connection type, etc. Can meet the requirements of users and habits to the greatest

extent.


(3) after the tube box set the upper lip, bottom outlet. The gate can set temperature measurement on the

mouth. Also can according to user requirements added a water flow switch interface. Temperature

measurement are mainly female mouth mouth and all kinds of blind copper pipe such as ∅ 5/16, 3/8 ∅,

1/2 and 5/8 ∅ ∅ brass or stainless steel tube.

(4) can be both head set out according to customer requirements, convenient interface, especially

suitable for &water-cooled packaged. The midea company, Texas Pacific company are a large number of

purchasing such products. Two-way can pick up nozzle structure below.

The spiral baffle plate evaporator is the latest product designed and made by Qiaoxin and has obtained

the national technical patents, which can save 20% in copper consumption and 30% in ferrous metals,

reach the total energy saving rate 30% after test and satisfy the national economic policy of industrial

upgrading, saving energy and reducing consumption and environmental protection.

Falling film type shell and tube heat exchanger water-cooled evaporator

Horizontal Loose Flange Tube And Tube Heat Exchanger For Air Conditioning System

FALLING FILM HEAT EXCHANGER

CAPACITY: 500KW TO 3500KW

Model Capacity (KW) Dimension (mm) Weight (kg)
D T1 T A C E F H1 H2
QXWW35S10 500 273 1270 1723 120 360 150 100 350 240 200
QXWW50S10 700 273 1600 2053 120 360 150 100 350 240 237
QXWW70S12 1000 325 2032 2498 150 406 180 120 350 240 322
QXWW100S12 1500 325 2032 2498 150 406 180 120 350 240 367
QXWW140S14 2000 355 2500 3023 180 440 180 150 400 290 512
QXWW170S16 2500 426 2500 2951 180 530 260 150 310 310 693
QXWW200S16 3000 426 2500 2951 180 530 260 150 310 310 736
QXWW240S16 3500 426 2500 2951 180 530 260 150 310 310 795

Model W1 W2
Specification Connection type Specification Connection type
QXWW35S10 DN80 male flange DN80 male flange
QXWW50S10 DN80 male flange DN80 male flange
QXWW70S12 DN100 male flange DN100 male flange
QXWW100S12 DN100 male flange DN100 male flange
QXWW140S14 DN100 male flange DN100 male flange
QXWW170S16 DN125 male flange DN125 male flange
QXWW200S16 DN125 male flange DN125 male flange
QXWW240S16 DN125 male flange DN125 male flange

U SHAPED TUBE DRY EVAPORATOR (SINGLE CIRCUIT)

CAPACITY: 120KW TO 270KW

Models QXU120S8 QXU135S8 QXU155S8 QXU185S10 QXU220S10 QXU270S10

Rated data

Refrigerant R22

ti=12°C te=2°C

tu=7°C Dts=5°C

 Qn KW 120 135 155 185 220 270
Kcal/h(×103 ) 103.2 116 133.3 159 180 232
Wn m3 /h 20.3 23.2 26.7 31.8 37.8 46.4
Wm m3 /h 25 28 30 41 43 65
Dpn bar 0.41 0.44 0.37 0.36 0.43 0.42

Models QXU120S8 QXU135S8 QXU155S8 QXU185S10 QXU220S10 QXU270S10
Dimension(mm) A 1815 2115 2315 2320 2654 2654
B 219 219 219 273 273 273
C 180 180 180 200 234 234
D 1530 1830 2030 2000 2280 2280
E 240 240 240 300 300 300
Vent S1 1/2 1/2 1/2 1/2 1/2 1/2
Outlet S2 1/2 1/2 1/2 1/2 1/2 1/2
Connection W(DN) 80 80 80 100 100 100
D1(mm) 35 35 35 35 35 35
D2(mm) 54 54 67 67 80 80
P(kg) 145 155 163 232 279 289

Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

Dpn-pressure drop of recirculating cooling water Dts-overheat temperature

CONDENSER SERIES DOUBLE CIRCUIT

CAPACITY: 50RT TO 200RT

Model Refrig. ton (RT) Refrig. ton (104kcal/h) Dimension (mm) Weight (kg) Max. water flow
D T1 T A C E H1 H2
QXC50D10A 50 18.9 273 953 2364 90 360 150 350 240 265 38.5
QXC60D10A 60 22.68 273 953 2364 90 360 150 350 240 279 46
QXC70D12A 70 26.46 325 953 2377 90 406 180 350 240 359 53.5
QXC80D12A 80 30.24 325 953 2377 90 406 180 350 240 375 61
QXC100D12A 100 37.80 325 953 2377 90 406 180 350 240 409 76
QXC120D12A 120 45.36 325 1270 3011 120 406 180 350 240 481 91
QXC140D14A 140 52.92 355 1270 3018 120 440 200 350 240 553 106
QXC160D16A 160 60.48 426 1600 3656 120 510 260 310 310 723 120.6
QXC200D16A 200 75.60 426 1600 3656 120 510 260 310 310 777 150.8

Model S (Vent)

P (fluoride inlet)

Copper pipe diameter (inch)

L(fluoride outlet)

Copper pipe diameter (inch)

 W (standard port)
FPT(inner pipe thread) Male flange
QXC50D10A 3/8 1-3/8 7/8 DN65
QXC60D10A 3/8 1-5/8 1-1/8 DN65
QXC70D12A 3/8 1-5/8 1-1/8 DN80
QXC80D12A 3/8 1-5/8 1-1/8 DN80
QXC100D12A 3/8 2-1/8 1-3/8 DN100
QXC120D12A 3/8 2-1/8 1-3/8 DN100
QXC140D14A 3/8 2-1/8 1-3/8 DN100
QXC160D16A 3/8 2-5/8 1-3/8 DN125
QXC200D16A 3/8 2-5/8 1-5/8 DN125
