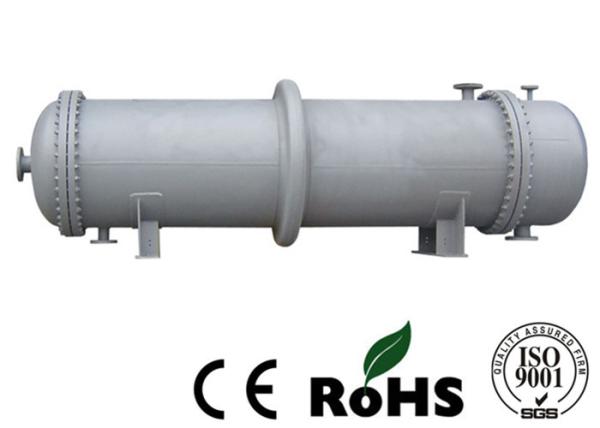

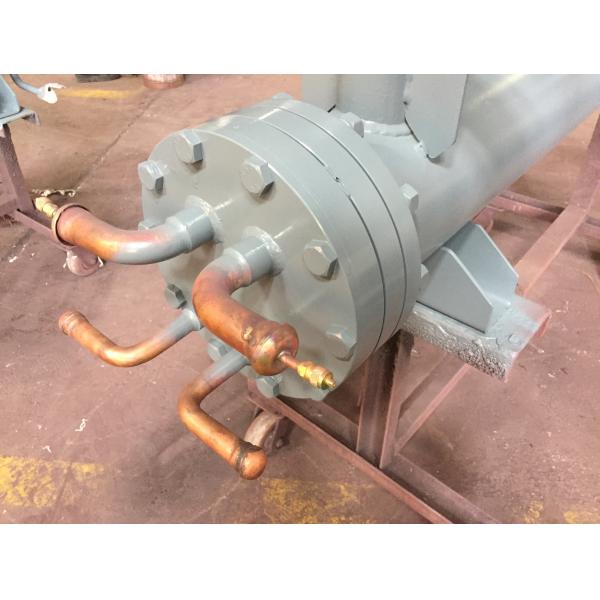

Dry Type Spiral Baffle Plate Shell Tube Heat Exchangers For Chemical Industry
Dry Type Spiral Baffle Plate Shell Tube Heat Exchangers For Chemical Industry
Specifications
Brand Name :
GREEFOUN
Model Number :
QXE168
Certification :
CE
Place of Origin :
CHINA
MOQ :
1piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100000pieces/year
Delivery Time :
within 15days
Packaging Details :
Standard export package
Refrigerant :
R22/R134a/R407C/R410A
Usage type :
High pressure
Application :
Cooling industry
Cooling capacity :
3KW~4000KW
System :
Single /Double /Triple Fourth system etc
Heat exchange tube :
Red copper/copper nickel alloy/aluminum brass tube etc
Description

Water - Cooled Shell and Tube Heat Exchanger

High Pressure Evaporator

First of all, according to the media selection materials, pipe flange all grade Ⅲ forging, equipment flange

full screw studs by magnetic detection, Ⅱ qualified.

If the low-temperature fasteners (equipment flange) need to do the impact test. The rest according to U-

type heat exchanger design. If the media is highly harmful, the material carbon steel will consider the heat

treatment, air tightness detection.

High-pressure U-type heat exchanger, tube tube plate and shell is the overall structure is not removable,

tube box flat cover with reverse flange connection, shell side of the tube plate connection structure.

1, multi-shell case shell flow

2, the pipe box separator temperature difference stress and heat transfer

3, the management of the flow

4, the management of high pressure, shell low pressure, pipe joints for leakage inspection

5, the pipeline should use the appropriate sealing structure

6, the assembly and control of the bundle should be convenient

STRAIGHT SINGLE SERIES DRY SPIRAL BAFFLE PLATE EVAPORATOR

CAPACITY: 310KW TO 680KW

Models RE310S10 RE360S12 RE420S12 RE470S12 RE540S14 RE620S14 RE680S14

Rated data

Refrigerant R22

ti=12°C te=2°C

tu=7°C Dts=5°C

 Qn KW 310 360 420 470 540 620 680
Kcal/h(×103 ) 267 317 361 404 464 533 585
Wn m3 /h 53.3 62 72.2 80.8 93 107 116
Wm m3 /h 68 70 81.7 100 105 140 145
Dpn bar 0.43 0.43 0.35 0.46 0.41 0.47 0.49

Models RE310S10 RE360S12 RE420S12 RE470S12 RE540S14 RE620S14 RE680S14
Dimension(mm) A 140 140 150 150 150 170 170
B 273 273 325 325 355 377 377
C 2500 1690 2400 1500 2690 2690 2860
D 360 360 406 406 440 460 460
E 370 370 380 380 400 400 400
F 2586 2586 2488 2586 2776 2776 2946
Vent S1 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Outlet S2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Connection W(DN) 100 100 125 125 125 150 150
D1(mm) 35 35 42 42 42 42 42
D2(mm) 67 67 80 80 90 90 90
P(kg) 296 380 398 442 459 654 669

Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

Dpn-pressure drop of recirculating cooling water Dts-overheat temperature

U SHAPED TUBE DRY EVAPORATOR (SINGLE SYSTEM)

CAPACITY: 18KW TO 95KW

Models QXU18S5 QXU28S5 QXU35S6 QXU47S6 QXU56S6 QXU65S6 QXU80S8 QXU95S8

Rated data

Refrigerant R22

ti=12°C te=2°C

tu=7°C Dts=5°C

 Qn KW 18.6 28.2 35.1 47 56 65 80 95

Kcal/h

(×103 )

 16 24 30.2 40.4 48.2 56.7 68.8 81.7
Wn m3 /h 4 6 6 8 9.6 11.4 13.8 16.4
Wm m3 /h 6.3 8 10 11.4 12 14.5 18 21
Dpn bar 0.16 0.29 0.27 0.41 0.35 0.39 0.42 0.46

Models QXU18S5 QXU28S5 QXU35S6 QXU47S6 QXU56S6 QXU65S6 QXU80S8 QXU95S8

Dimension

(mm)

 A 887 1037 1275 1407 1431 1431 1631 1781
B 140 140 168 168 168 168 219 219
C 97 97 107 107 161 161 161 161
D 690 840 1040 1190 1030 1180 1380 1530
E 180 180 200 200 200 200 240 240
Vent S1 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Outlet S2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Connection W(DN) 40 40 50 50 65 65 65 65
D1(mm) 22 22 22 22 22 22 22 22
D2(mm) 35 35 35 35 54 54 54 54
P(kg) 49 58 72 78 88 93 125 136

Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

Dpn-pressure drop of recirculating cooling water Dts-overheat temperature

CONDENSER SERIES DOUBLE CIRCUIT

CAPACITY: 10RT TO 40RT

Model Refrig. ton (RT) Refrig. ton (104kcal/h) Dimension (mm) Weight (kg) Max. water flow
D T1 T A C C2 E
QXC10D6 10 3.78 168 483 1065 75 185 233 92 78 7.8
QXC15D6 15 5.67 168 635 1369 75 185 233 92 85 11.6
QXC20D6 20 7.56 168 819 1737 90 185 233 92 96 15.8
QXC25D6 25 9.45 219 819 1755 90 238 285 113 132 19.5
QXC30D6 30 11.34 219 819 1755 90 238 285 113 137 23
QXC35D6 35 13.23 219 819 1755 90 238 285 113 145 27.3
QXC40D6 40 15.12 219 953 2024 90 238 285 113 162 31

Model S (Vent)

P (fluoride inlet)

Copper pipe diameter (inch)

L(fluoride outlet)

Copper pipe diameter (inch)

 W (standard port)
FPT(inner pipe thread) FPT(inner pipe thread)
QXC10D6 1/4 5/8 5/8 1-1/2
QXC15D6 1/4 7/8 5/8 1-1/2
QXC20D6 1/4 7/8 5/8 1-1/2
QXC25D6 1/4 1-1/8 7/8 2
QXC30D6 1/4 1-1/8 7/8 2-1/2
QXC35D6 1/4 1-3/8 7/8 2-1/2
QXC40D6 1/4 1-3/8 7/8 2-1/2
