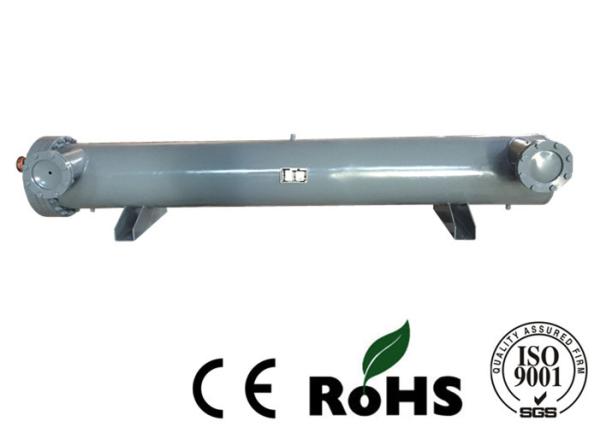

Horizontal High Pressure Heat Exchanger , Chiller Heat Exchanger For Cooling Industry
Horizontal High Pressure Heat Exchanger , Chiller Heat Exchanger For Cooling Industry
Specifications
Brand Name :
GREEFOUN
Model Number :
QXU155S8
Certification :
CE
Place of Origin :
CHINA
MOQ :
1piece
Payment Terms :
TT, L/C, Western Union
Supply Ability :
100000pieces/year
Delivery Time :
within 15days
Packaging Details :
Standard Export Package
Refrigerant :
R134a
Connection type :
loose flange
Shell material :
Carbon steel
Cooling capacity :
18KW~4000KW
Heat exchange tube :
Copper nickel alloy
Application :
Cooling industry
Description

High Pressure Water Cooling Evaporative

Condenser Heat Exchanger

Heat exchanger tube plate selection is more complex. The tube sheet is an important compression

element that separates the pipe from the shell process fluid and is fixed to the heat transfer tube.

It is the most demanding operating conditions, it is subject to the tube and the shell side of any one of the

highest pressure and maximum temperature, so its timber is generally not less than the pipe and shell

side of the higher side of the timber.

For example: a heat exchanger tube selection of the substrate 2.25Cr-1Mo steel, shell selection of

1.25Cr-0.5Mo steel, then its tube plate substrate should not be less than 2.25Cr-1Mo steel.

In addition to the choice of tube sheet substrate, the tube board on the coating is also very important.

Because the tube board to be processed many heat exchanger hole.

And the individual defects in the composite steel sheet for the tube sheet will be enlarged or unable to be

repaired by the pipe hole machining. Therefore, the corrosion on the tube board is generally in the form

of surfacing, surfacing layer is generally double-layer, that is, the transition layer (E309L type) and the

surface (E347 type).

WATER TO WATER HEAT EXCHANGER

CAPACITY: 100KW TO 400KW

Model Capacity (KW) Dimension (mm) Weight (kg)
D T1 T A C E F G
QXWW8S6 100 168 762 858 80 185 92 80 0 51
QXWW15S6 200 168 1270 1366 80 185 92 80 0 78
QXWW20S8 300 219 1270 1380 100 238 113 80 30/0 118
QXWW30S8 400 219 1270 1380 100 238 113 80 30/0 131

Model W1 W2
Specification Connection type Specification Connection type
QXWW8S6 G1-1/2 internal pipe thread G1-1/2 internal pipe thread
QXWW15S6 G1-1/2 internal pipe thread G1-1/2 internal pipe thread
QXWW20S8 G2 internal pipe thread G2 internal pipe thread
QXWW30S8 G2-1/2 internal pipe thread G2-1/2 internal pipe thread

WATER TO WATER HEAT EXCHANGER

CAPACITY: 500KW TO 3500KW

Model Capacity (KW) Dimension (mm) Weight (kg)
D T1 T A C E F H1 H2
QXWW35S10 500 273 1270 1723 120 360 150 100 350 240 200
QXWW50S10 700 273 1600 2053 120 360 150 100 350 240 237
QXWW70S12 1000 325 2032 2498 150 406 180 120 350 240 322
QXWW100S12 1500 325 2032 2498 150 406 180 120 350 240 367
QXWW140S14 2000 355 2500 3023 180 440 180 150 400 290 512
QXWW170S16 2500 426 2500 2951 180 530 260 150 310 310 693
QXWW200S16 3000 426 2500 2951 180 530 260 150 310 310 736
QXWW240S16 3500 426 2500 2951 180 530 260 150 310 310 795

Model W1 W2
Specification Connection type Specification Connection type
QXWW35S10 DN80 male flange DN80 male flange
QXWW50S10 DN80 male flange DN80 male flange
QXWW70S12 DN100 male flange DN100 male flange
QXWW100S12 DN100 male flange DN100 male flange
QXWW140S14 DN100 male flange DN100 male flange
QXWW170S16 DN125 male flange DN125 male flange
QXWW200S16 DN125 male flange DN125 male flange
QXWW240S16 DN125 male flange DN125 male flange

COMPANY IMAGE

Horizontal High Pressure Heat Exchanger , Chiller Heat Exchanger For Cooling Industry

COOPERATED CLENTS
Horizontal High Pressure Heat Exchanger , Chiller Heat Exchanger For Cooling Industry
