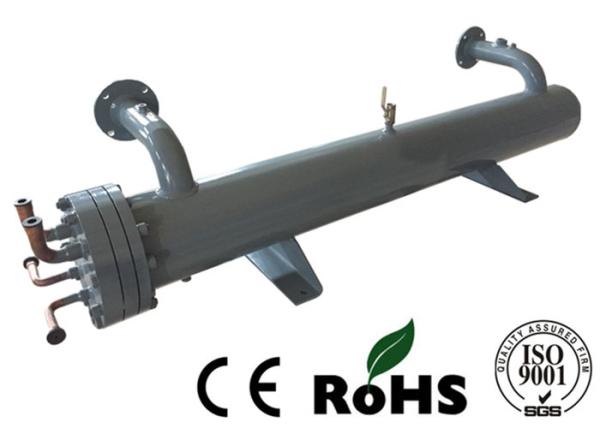

Carbon Steel Air To Water Heat Exchanger Underground Water Refrigerating Medium
Carbon Steel Air To Water Heat Exchanger Underground Water Refrigerating Medium
Specifications
Brand Name :
GREEFOUN
Model Number :
RE76S6
Certification :
CE
Place of Origin :
CHINA
MOQ :
1piece
Payment Terms :
TT, L/C, Western Union
Supply Ability :
100000pieces/year
Delivery Time :
within 15days
Packaging Details :
Standard Export Package
Refrigerant :
R22/R134a/R407C/R410A
Refrigerating medium :
Underground water
Application :
Central Air Conditioning Unit
Cooling capacity :
18KW~4000KW
Shell material :
Carbon steel
Type :
Shell and tube type
Description

Air to Water Shell and Tube Heat Exchanger

Water - Cooled Evaporator


Air to Water Shell and Tube Heat Exchanger Water - Cooled Evaporator is suitable for water cooled unit,

water source heat pump, air cooled pump and air cooled heat pump unit.

The product is applying for refrigerants of R22, R134a, R407C and R410A etc.

The referigerating medium is for tap water, underground water, river water and sea water or brine, water

and glycol solution, sulfate solution, etc.

For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,

etc. The shell raw material mainly are seamless steel tube, stainless steel pipe.


1, Heat exchange tube: four main tube type.

(1) ∅ within 3/8 "thread copper coil, it is mainly used for" U "type tube evaporator.

(2) ∅ within 1/2 "threaded straight copper tube, straight tube is mainly used for dry-type evaporator.

(3) ∅ 1/2 "corrugated straight stainless steel tube, straight tube is mainly used in food industry of dry

evaporator.

(4) ∅ 5/8 "inside outside screw wing efficient copper tube, it is mainly used for air precooling industry dry

evaporator.

2, shell raw material:

There are two of the major materials:

(1) # 20 seamless steel tube, mainly used for all kinds of load - more than 20 ℃ cold agent.

(2) 304/316 l stainless steel tube, it is mainly used for food and low temperature (below 25 ℃, higher than

40 ℃) of the refrigerant, 316 l can also be used for cooling load of the sulfate for industry.

3, interface:

WATER TO WATER HEAT EXCHANGER

CAPACITY: 500KW TO 3500KW

Model Capacity (KW) Dimension (mm) Weight (kg)
D T1 T A C E F H1 H2
QXWW35S10 500 273 1270 1723 120 360 150 100 350 240 200
QXWW50S10 700 273 1600 2053 120 360 150 100 350 240 237
QXWW70S12 1000 325 2032 2498 150 406 180 120 350 240 322
QXWW100S12 1500 325 2032 2498 150 406 180 120 350 240 367
QXWW140S14 2000 355 2500 3023 180 440 180 150 400 290 512
QXWW170S16 2500 426 2500 2951 180 530 260 150 310 310 693
QXWW200S16 3000 426 2500 2951 180 530 260 150 310 310 736
QXWW240S16 3500 426 2500 2951 180 530 260 150 310 310 795

Model W1 W2
Specification Connection type Specification Connection type
QXWW35S10 DN80 male flange DN80 male flange
QXWW50S10 DN80 male flange DN80 male flange
QXWW70S12 DN100 male flange DN100 male flange
QXWW100S12 DN100 male flange DN100 male flange
QXWW140S14 DN100 male flange DN100 male flange
QXWW170S16 DN125 male flange DN125 male flange
QXWW200S16 DN125 male flange DN125 male flange
QXWW240S16 DN125 male flange DN125 male flange

WATER TO WATER HEAT EXCHANGER

CAPACITY: 100KW TO 400KW

Model Capacity (KW) Dimension (mm) Weight (kg)
D T1 T A C E F G
QXWW8S6 100 168 762 858 80 185 92 80 0 51
QXWW15S6 200 168 1270 1366 80 185 92 80 0 78
QXWW20S8 300 219 1270 1380 100 238 113 80 30/0 118
QXWW30S8 400 219 1270 1380 100 238 113 80 30/0 131

Model W1 W2
Specification Connection type Specification Connection type
QXWW8S6 G1-1/2 internal pipe thread G1-1/2 internal pipe thread
QXWW15S6 G1-1/2 internal pipe thread G1-1/2 internal pipe thread
QXWW20S8 G2 internal pipe thread G2 internal pipe thread
QXWW30S8 G2-1/2 internal pipe thread G2-1/2 internal pipe thread

CONDENSER SERIES DOUBLE CIRCUIT

CAPACITY: 50RT TO 200RT

Model Refrig. ton (RT) Refrig. ton (104kcal/h) Dimension (mm) Weight (kg) Max. water flow
D T1 T A C E H1 H2
QXC50D10A 50 18.9 273 953 2364 90 360 150 350 240 265 38.5
QXC60D10A 60 22.68 273 953 2364 90 360 150 350 240 279 46
QXC70D12A 70 26.46 325 953 2377 90 406 180 350 240 359 53.5
QXC80D12A 80 30.24 325 953 2377 90 406 180 350 240 375 61
QXC100D12A 100 37.80 325 953 2377 90 406 180 350 240 409 76
QXC120D12A 120 45.36 325 1270 3011 120 406 180 350 240 481 91
QXC140D14A 140 52.92 355 1270 3018 120 440 200 350 240 553 106
QXC160D16A 160 60.48 426 1600 3656 120 510 260 310 310 723 120.6
QXC200D16A 200 75.60 426 1600 3656 120 510 260 310 310 777 150.8

Model S (Vent)

P (fluoride inlet)

Copper pipe diameter (inch)

L(fluoride outlet)

Copper pipe diameter (inch)

 W (standard port)
FPT(inner pipe thread) Male flange
QXC50D10A 3/8 1-3/8 7/8 DN65
QXC60D10A 3/8 1-5/8 1-1/8 DN65
QXC70D12A 3/8 1-5/8 1-1/8 DN80
QXC80D12A 3/8 1-5/8 1-1/8 DN80
QXC100D12A 3/8 2-1/8 1-3/8 DN100
QXC120D12A 3/8 2-1/8 1-3/8 DN100
QXC140D14A 3/8 2-1/8 1-3/8 DN100
QXC160D16A 3/8 2-5/8 1-3/8 DN125
QXC200D16A 3/8 2-5/8 1-5/8 DN125
