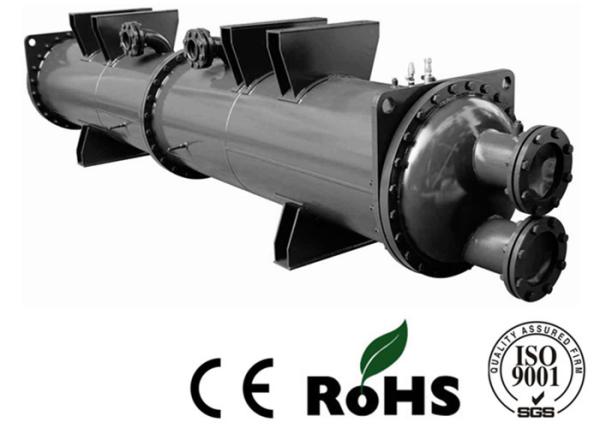

Commercial Shell And Tube Condenser , Water Cooled Heat Exchanger For Cold Room
Commercial Shell And Tube Condenser , Water Cooled Heat Exchanger For Cold Room
Specifications
Brand Name :
GREEFOUN
Model Number :
QXWS150
Certification :
CE, ROSH
Place of Origin :
CHINA
MOQ :
1piece
Payment Terms :
TT, L/C, Western Union
Supply Ability :
100000pieces/year
Delivery Time :
within 20days
Packaging Details :
Standard Export Package
Tube material :
Copper
Shell material :
Carbon steel
Tube medium :
Water
Capacity range :
18kw~4000kw
Refrigerant :
R22
Color :
Customized
Description

Condenser Water - Cooled Type Condenser

Tube Heat Exchanger

The water-cooled cooler consists of two parts:

the outer shell and the internal cooler body. The outer shell includes a cylinder, a water distribution cover

and a backwater cover.

It is equipped with inlet and outlet tubing and inlet and outlet pipes, and is equipped with oil discharge,

drainage, exhaust plug, zinc rod mounting hole and thermometer interface.

The heat medium of the water-cooled cooler is imported from the pipe by the pipe, and flows sequentially

through the baffle passage to the takeover outlet.

And the cooler medium is double-pipe flow, that is, the cooler medium from the inlet through the water

cover into the half of the cooler tube, and then from the back cover into the other half of the cooler tube

into the other side of the water cover and outlet pipe The Cold medium in the process of double flow

process, the absorption of heat generated by the heat transfer from the outlet, so that the working

medium to maintain the rated working temperature.

Details drawing and technical data are as below:

DRAWING

Commercial Shell And Tube Condenser , Water Cooled Heat Exchanger For Cold Room

CONDENSER SERIES SINGLE CIRCUIT

CAPACITY: 110RT TO 200RT

ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
DT1TACEH1H2
QXC110S12A11041.583252500296615040618035024041183.5
QXC120S14A12045.363552500302315044020040029049091
QXC130S14A13049.153552500302315044020040029050698.5
QXC140S14A14052.9235525003023150440200400290521106
QXC150S14A15056.7035525003023150440200400290536113.5
QXC160S16A16060.4842625002952150530260310310637120.6
QXC180S16A18068.0442625002952150530260310310667135.5
QXC200S16A20075.6042625002952150530260310310697150.8

ModelS (Vent)

P (fluoride inlet)
Copper pipe diameter (inch)

L(fluoride outlet)
Copper pipe diameter (inch)

W (standard port)W (optional port)
FPT(inner pipe thread)Male flangeMale flange
QXC110S12A3/83-1/81-5/8DN100DN100
QXC120S14A3/83-1/81-5/8DN100DN100
QXC130S14A3/83-1/81-5/8DN100DN100
QXC140S14A3/83-1/81-5/8DN100DN100
QXC150S14A3/83-1/81-5/8DN100DN125
QXC160S16A3/83-1/81-5/8DN125DN125
QXC180S16A3/83-1/81-5/8DN125DN125
QXC200S16A3/83-1/81-5/8DN125DN125


Commercial Shell And Tube Condenser , Water Cooled Heat Exchanger For Cold Room

COOPERATED CLENTS

Commercial Shell And Tube Condenser , Water Cooled Heat Exchanger For Cold Room
