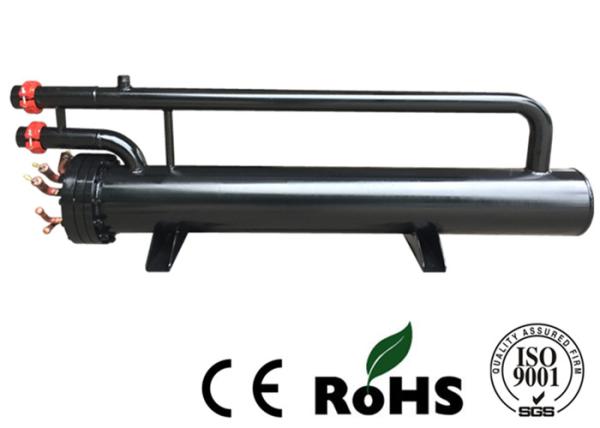

Central Air Conditioning Unit Parts Tubular Heat Exchanger Copper Tube Bundle
Central Air Conditioning Unit Parts Tubular Heat Exchanger Copper Tube Bundle
Specifications
Brand Name :
GREEFOUN
Model Number :
QXU155S8
Certification :
CE
Place of Origin :
CHINA
MOQ :
1piece
Payment Terms :
TT, L/C, Western Union
Supply Ability :
100000pieces/year
Delivery Time :
within 15days
Packaging Details :
Standard Export Package
Refrigerant :
R410a
Design Pressure :
1.5MPa
Shell material :
Carbon steel
Cooling capacity :
155KW
Color :
Customed
Type :
shell and tube
Description

Central Air Conditioning Unit Parts Tubular Heat Exchanger Copper Tube Bundle

Water-cooled central air-conditioning contains four parts, compressor, evaporator, condenser, throttle device, refrigerant in circulation in the above four parts, refrigerant compressor out (refrigerant), high temperature and high pressure gas flows through the condenser and cooling step-down, condenser heat to cooling towers to discharge through the cooling water system, cold media continue to flow through the throttle device, into the low temperature low pressure liquid, flows through the evaporator, heat, then through compression. In the evaporator of the two ends of frozen water cycle system, refrigerant in the absorption of heat will chilled water temperature is reduced, the low temperature water flow to the client, repass fan coil heat exchanger, the cold wind blow out.

Central Air Conditioning Unit Parts Tubular Heat Exchanger Copper Tube Bundle

U SHAPED TUBE DRY EVAPORATOR (SINGLE CIRCUIT)

CAPACITY: 120KW TO 270KW

Models QXU120S8 QXU135S8 QXU155S8 QXU185S10 QXU220S10 QXU270S10

Rated data

Refrigerant R22

ti=12°C te=2°C

tu=7°C Dts=5°C

 Qn KW 120 135 155 185 220 270
Kcal/h(×103 ) 103.2 116 133.3 159 180 232
Wn m3 /h 20.3 23.2 26.7 31.8 37.8 46.4
Wm m3 /h 25 28 30 41 43 65
Dpn bar 0.41 0.44 0.37 0.36 0.43 0.42

Models QXU120S8 QXU135S8 QXU155S8 QXU185S10 QXU220S10 QXU270S10
Dimension(mm) A 1815 2115 2315 2320 2654 2654
B 219 219 219 273 273 273
C 180 180 180 200 234 234
D 1530 1830 2030 2000 2280 2280
E 240 240 240 300 300 300
Vent S1 1/2 1/2 1/2 1/2 1/2 1/2
Outlet S2 1/2 1/2 1/2 1/2 1/2 1/2
Connection W(DN) 80 80 80 100 100 100
D1(mm) 35 35 35 35 35 35
D2(mm) 54 54 67 67 80 80
P(kg) 145 155 163 232 279 289

Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

Dpn-pressure drop of recirculating cooling water Dts-overheat temperature

STRAIGHT SINGLE SERIES DRY SPIRAL BAFFLE PLATE EVAPORATOR

CAPACITY: 310KW TO 680KW

Models RE310S10 RE360S12 RE420S12 RE470S12 RE540S14 RE620S14 RE680S14

Rated data

Refrigerant R22

ti=12°C te=2°C

tu=7°C Dts=5°C

 Qn KW 310 360 420 470 540 620 680

Kcal/h

(×103 )

 267 317 361 404 464 533 585
Wn m3 /h 53.3 62 72.2 80.8 93 107 116
Wm m3 /h 68 70 81.7 100 105 140 145
Dpn bar 0.43 0.43 0.35 0.46 0.41 0.47 0.49

Models RE310S10 RE360S12 RE420S12 RE470S12 RE540S14 RE620S14 RE680S14
Dimension(mm) A 140 140 150 150 150 170 170
B 273 273 325 325 355 377 377
C 2500 1690 2400 1500 2690 2690 2860
D 360 360 406 406 440 460 460
E 370 370 380 380 400 400 400
F 2586 2586 2488 2586 2776 2776 2946
Vent S1 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Outlet S2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Connection W(DN) 100 100 125 125 125 150 150
D1(mm) 35 35 42 42 42 42 42
D2(mm) 67 67 80 80 90 90 90
P(kg) 296 380 398 442 459 654 669

Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

Dpn-pressure drop of recirculating cooling water Dts-overheat temperature
