MachineU > China Products > Fabrication Services > Moulds

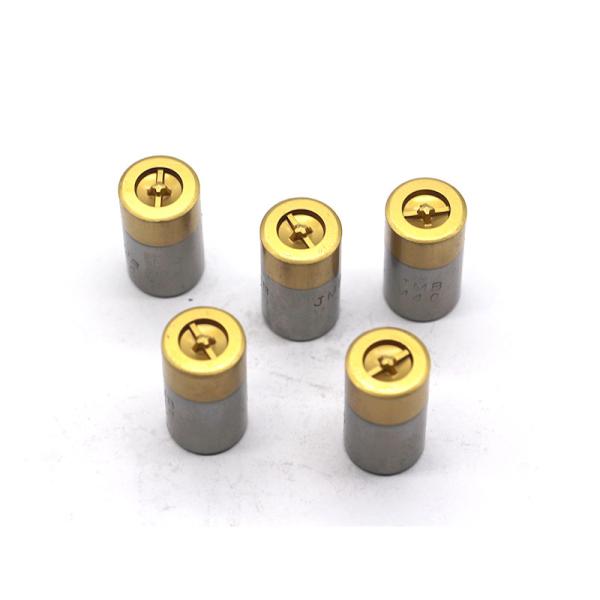

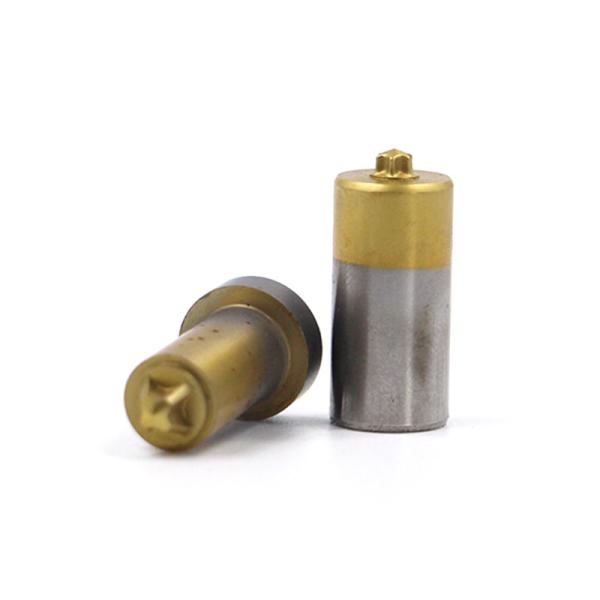

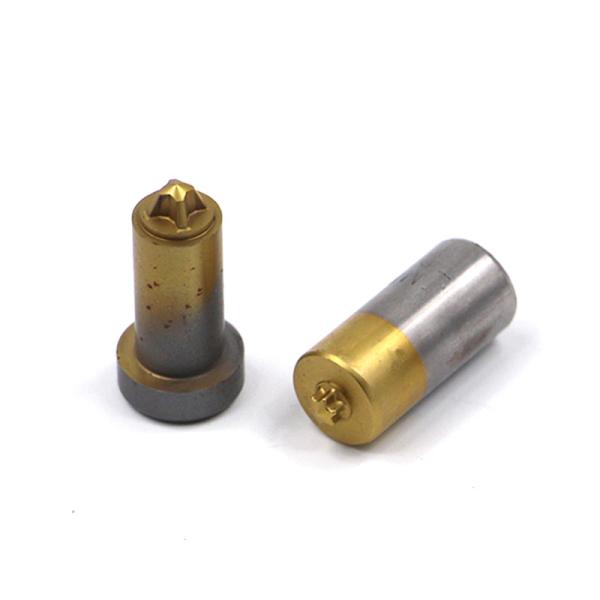

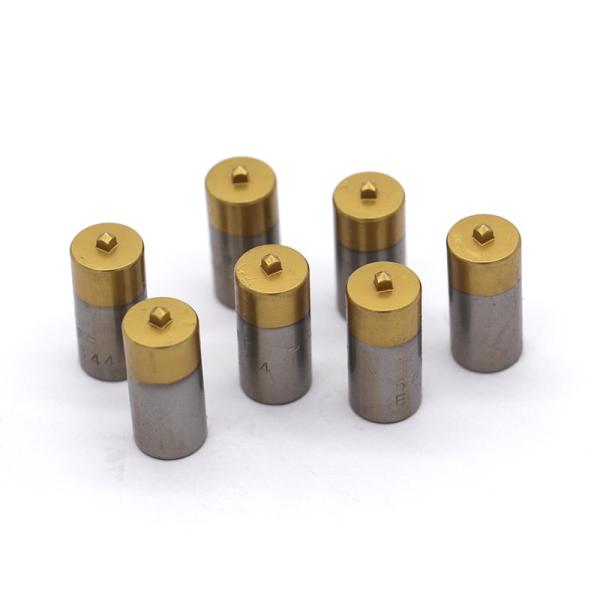

M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
Specifications
Place of Origin :
Chongqing, China
Brand Name :
Henghui, Henghui
Model Number :
Customized
Packaging Details :
Carton Packaging
Supply Ability :
2000 Piece/Pieces per Week moulds manufacturer
MOQ :
30 pieces
Price :
$3.00/pieces >=30 pieces
Shaping Mode :
Punching Mold
Product Material :
HSS
Product :
Hardware
Product Name :
Phillips header punch
Material :
M2
Size :
12x25mm
Surface treatment :
TIN
MOQ :
10pcs
Service :
OEM\ODM
Packaging :
Standard Package
Application :
Hardware
Keyword :
moulds
Port :
chongqing
Name :
Second Punch
Description

High Quality M2+TIN Phillips And Other Types Header Punch Second Punch For Screw

Products Description
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw

Material:

M42(H59)＞M35(H55)＞M2(H9)
H9(M2)
H9(M2)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.85
0.33
0.34
0.027
0.005
4.12
4.73
1.78
5.74
Cu
Ni
0.12
0.24
M42(SKH59)
H9(M2)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
1.06
0.3
0.31
0.018
0.002
3.74
9.29
1.1
1.34
Cu
Ni
Co
0.07
0.29
7.97

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .

Surface Treatment:

Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated
Standard size
Weight
12x25mm
25g/pc
14x25mm
30g/pc
18x25mm
50g/pc
23x25mm
80g/pc
Process
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
Factory
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Exhibition
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.
Packing and Delivering
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.
Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.
Inspection equipment
M2+TIN Phillips Header Punch , HSS Punches Manufacturers For Screw
FAQ
Q1: How can I get a quotation from your company?
A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.
Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.
