Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Specifications
Place of Origin :
Chongqing, China
Brand Name :
Henghui
Model Number :
Customized
Packaging Details :
Carton, Wooden box; export standard package,or as client's requirement
Supply Ability :
3000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$1.50 - $2.50/pieces
Shaping Mode :
Extrusion Mould
Keyword :
second punch, forging die
Product Material :
Steel
Product :
Vehicle Mould
Material :
Steel
Color :
yellow and silver
Size :
12x25mm 14x25mm 18x25mm 23x25mm
Type :
CNC Process
Process :
CNC
Surface treatment :
Polishing
Design software :
CAD
Feature :
Wear-resisting
Port :
chongqing
Name :
Second Punch
Description

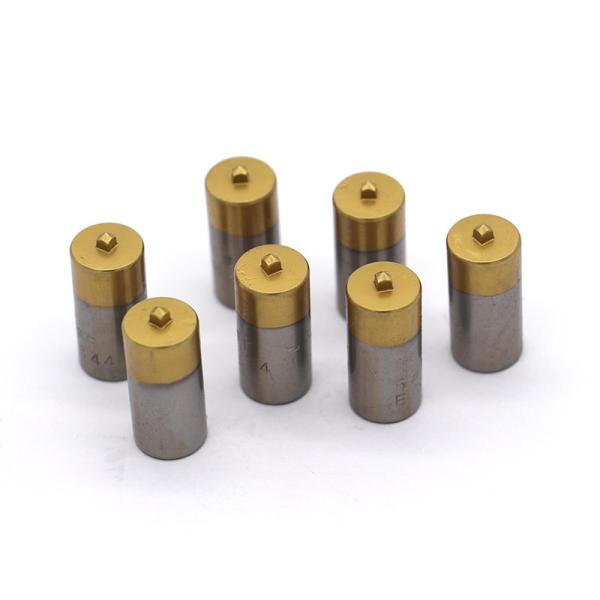

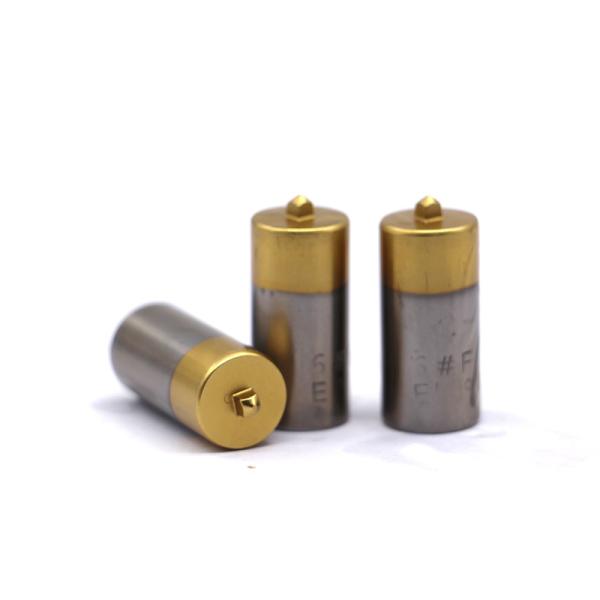

Second Punch Head For Making Screw With Coating Tin/Ticn/Tialn/Crn

Products Description
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn

Material:

M42(H59)＞M35(H55)＞M2(H9)
H9(M2)
H9(M2)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.85
0.33
0.34
0.027
0.005
4.12
4.73
1.78
5.74
Cu
Ni
0.12
0.24
M42(SKH59)
H9(M2)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
1.06
0.3
0.31
0.018
0.002
3.74
9.29
1.1
1.34
Cu
Ni
Co
0.07
0.29
7.97

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .

Surface Treatment:

Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated
Standard size
Weight
12x25mm
25g/pc
14x25mm
30g/pc
18x25mm
50g/pc
23x25mm
80g/pc
Process
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Factory
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Exhibition
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.
Packing and Delivering
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.
Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.
Inspection equipment
Steel Second Punch Head CNC Process With Coating Tin / Ticn / Tialn / Crn
FAQ
Q1: How can I get a quotation from your company?
A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.
Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.
