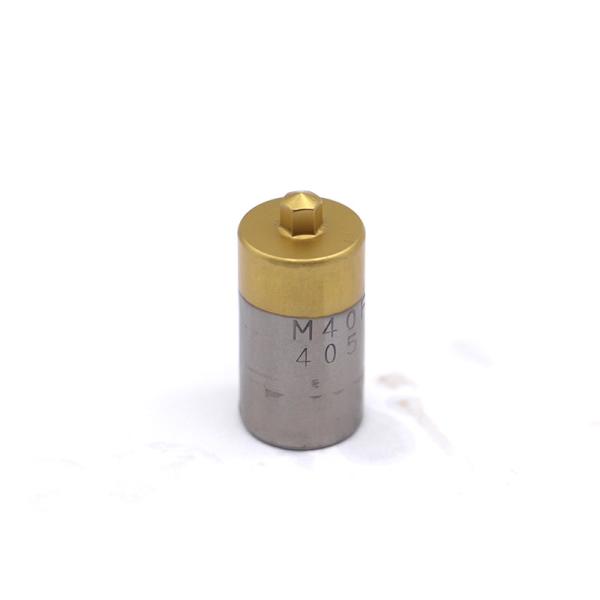

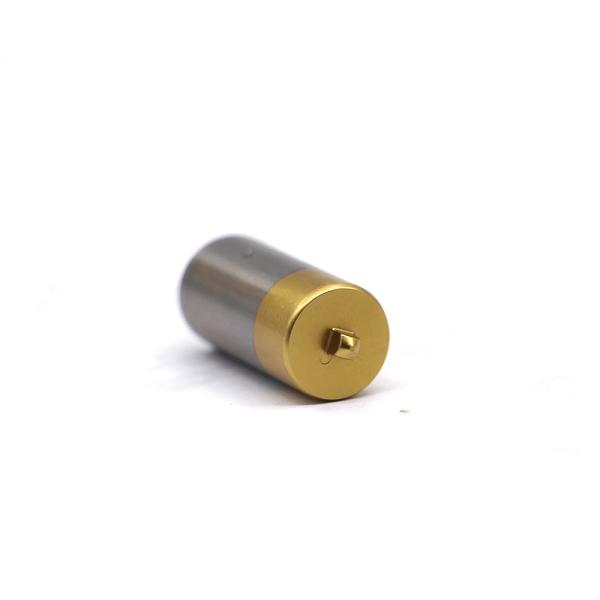

2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
Specifications
Place of Origin :
Chongqing, China
Brand Name :
Henghui
Model Number :
Customized
Shaping Mode :
Punching Mold
Product Material :
Steel
Product :
Other
Product Name :
Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
Material :
M2 or M42
Design software :
CAD
Surface treatment :
Polishing
Mould life :
250000-300000shots
Standard size :
12*25, 14*25, 18*25, 23*25
Color :
Yellow or black
Mould material :
HSS
Delivery time :
7-10 days
Original place :
Chongqing, China
Packaging Details :
Standard exporting wooden or carton case
Port :
Chongqing, Shanghai, Guangzhou
Supply Ability :
5000000 Piece/Pieces per Month
MOQ :
30 pieces
Price :
$2.00 - $5.00/pieces
Name :
Second Punch
Description
Products Description
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die

Material:

M42(H59)＞M35(H55)＞M2(H9)
H9(M2)
H9(M2)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.85
0.33
0.34
0.027
0.005
4.12
4.73
1.78
5.74
Cu
Ni
0.12
0.24
M42(SKH59)
H9(M2)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
1.06
0.3
0.31
0.018
0.002
3.74
9.29
1.1
1.34
Cu
Ni
Co
0.07
0.29
7.97

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .

Surface Treatment:

Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated
Standard size
Weight
12x25mm
25g/pc
14x25mm
30g/pc
18x25mm
50g/pc
23x25mm
80g/pc
Process
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
Factory
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Exhibition
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.
Packing and Delivering
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.
Inspection equipment
2023 New Design Henghui Precision Hex/Square/Six-lobe/Phillips Screw Second Header Punch Die
FAQ
Q1: How can I get a quotation from your company?
A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.
