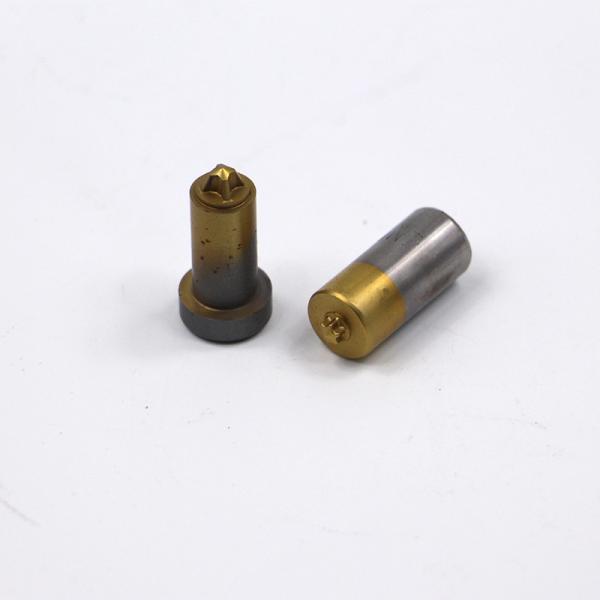

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
Specifications
Place of Origin :
Chongqing, China
Brand Name :
Henghui
Model Number :
OEM
Shaping Mode :
Forging Mould
Product Material :
HSS
Product :
screw die
Product Name :
phillips header punch
Material :
M2,M35,M42
Size :
12x25mm,14x25mm,18x25mm,23x25mm or customized
Surface treatment :
TiN Or TiALN
Certification :
ISO9001:2015
Mold Life :
150k-250k Shots
Application :
Making screw head
Standard :
AISI,DIN,JIS,ISO
Service :
OEM ODM
Tolerance :
+/-0.1mm
Packaging Details :
Carton Box
Port :
Chongqing
Supply Ability :
150 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$2.30/pieces >=10 pieces
Name :
Second Punch
Description

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch

Product Description
JMF (JIS FLAT HEAD WOOD SCREW)
Standards(d) d D H C a b M Q
Size Tolerance Size Tolerance Size Tolerance Size Tolerance Size Tolerance max min max
2.4 2.4 4.8 1.4 0.2 0.7 0.6 ±0.15 2.7 1.52 1.14
2.7 2.7 5.4 1.55 0.2 0.8 ±0.20 0.7 2.9 1.72 1.34
3.1 3.1 6.2 0-0.5 1.8 0-0.3 0.25 0.9 0.8 3.8 1.73 1.2
3.5 3.5 ±0.1 7 2 0.25 1 0.9 ±0.2 4.2 2.13 1.6
3.8 3.8 7.6 2.15 0.25 1 0.9 4.5 2.43 1.89
4.1 4.1 8.2 0-0.6 2.35 0.3 1.2 1 4.8 2.73 2.19
4.5 4.5 9 2.55 0.3 1.2 1.1 5.2 3.13 2.58
4.8 4.8 ±0.12 9.6 2.7 0.3 1.3 1.2 ±0.25 5.4 3.33 2.77
5.1 5.1 10.2 2.85 0.3 1.4 1.2 6.4 3.06 2.5
5.5 5.5 11 3.05 0-0.4 0.3 1.4 1.3 6.7 3.36 2.8
5.8 5.8 11.6 0-0.7 3.2 0.3 1.6 ±0.250 1.4 7 3.66 3.09

Please specify the details of header punches as follows when you inquire or order:

1. The material of header punches you need or the material of screw you used;

2. The specification of standard you use, for examples: JIS, ANSI or DIN;

3. Screw Application: Machine Screw , Tapping Screw , Wood Screw or any others;

4. Head Style: Flat head , Pan head , Truss head , Binding head or any others;

5. Nominal Size: JIS-M20, M23; ANSI-#4, #8; DIN-M30, M35;

6. Recess Driver: Phillips , Slot, Phillips and Slot Combination, Pozi ect;

7. Dimension : 12x25, 14x25, 18x25, 23x25;

8. Coated : Plian , TIN Coated , TILAN Coated.

Henghui is a professional manufacturer and supplier of screw second punch in the world. The header second punch are widely applied to Screw Industry. We ensure that our products are made with quality, and offered in reasonable price.

Henghui company are equipped with new modern high precision CNC grinding centres with the necessary technology for grinding complex shapes with very narrow tolerances. This technology, together with EDM and high-speed machining makes it possible producing any special shape.TiN coating, different coatings to be applied depending on the material. Backed by the assistance of our experienced professionals, Henghui has been the best manufacturer and supplier of a qualitative range of Header Second Punch. The provided header second punch is exclusively manufactured by our skilled professionals using the finest grade raw material and high-end technology. Offered header second punch is much-admired by our precious clients for its precise design and accurate dimensions. Further, clients can avail this header second punch from us at most affordable price. We provide phillips, six-lobe, pozidriv, square, hexagon and all the types of punches.

Company Information

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch Henghui's Tungsten Carbide Dies are designed with high precision in order to meet the international quality standards. We offered dies are known for their robust designs, professional processing and longer service life.Tungsten Carbide Dies can be used in the production of fasteners and can also be applied to other industries.Apart from this, the offered tungsten carbide dies are available in various sizes and dimensions as per the varied needs of the clients.
We specialize in the development, production and sales of various tungsten carbide dies.
We supply for customer including:
Carbide die: 1.Straight hole dies 2.Extrusion dies 3.Segmented Hex Dies 4.Cutter&knife 5. nut die
Tube drawing dies
Cutting&Trimming dies
Thread rolling die
2nd punch
punch pin HSS

Exhibition

The global demand for fasteners is constantly increasing, driven by the strong global economy and a steady growth especially in the construction, aerospace, automotive and white goods markets. The broad and versatile scope of application for fasteners and fixings continues to create opportunities for manufacturers and suppliers of these technologies. With ever changing requirements and advancements in various industry sectors, new business opportunities are opening for the future. So Henghui participated in many international exhibitions.

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch

Fastener Fair Istanbul Turkey 2018

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch

Aftersales Service

Please open it and check all the items as soon as possible when you receive the packages, if there is any damage or mistake, tell us please, we will exchange or replace for you within two weeks (don’t let it more than two weeks ).

Customer satisfaction is the most important to us. if you have any problem, please feel free to contact with us!

Packaging & Shipping

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-15 Days.

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch
