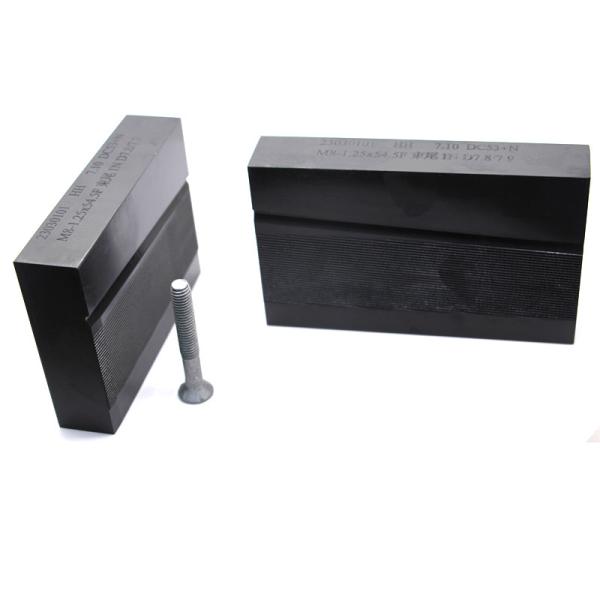

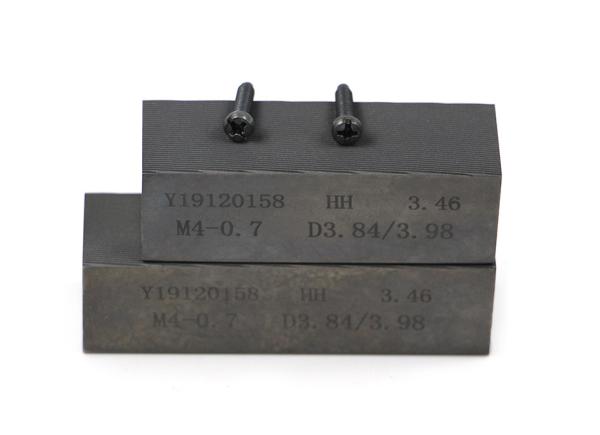

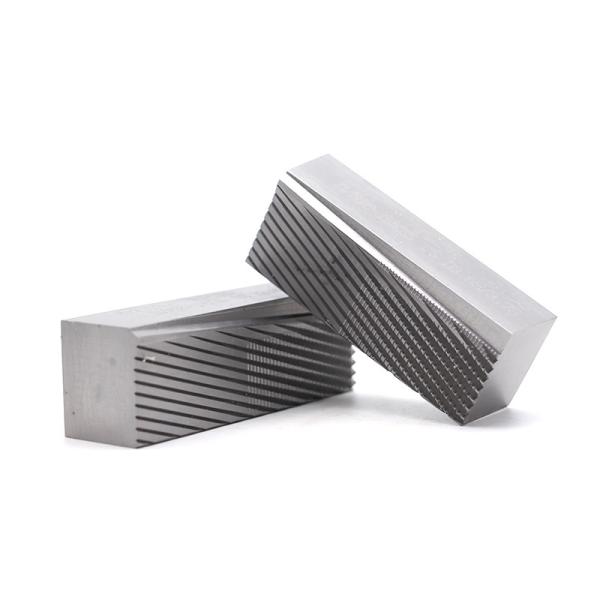

Customized DC53/H9 Material Standard Flat Thread Rolling Die With High Precision
| Chemical Composition | C | Si | Mn | P | S | Cr | Mo | V | W |
| Content (%) | 0.95 | 0.89 | 0.3 | 0.018 | 0.006 | 7.7 | 1.92 | 0.75 | 0.91 |
| MACHINE TYPE | s | H | L1(FIXED) | L2(MOVING) |
| 0 | 19 | 25 | 51 | 64 |
| 3/16 | 25 | 25,38, 55 | 75 | 90 |
| 1/4 | 25 | 25,40, 55, 65,80 | 100 | 115 |
| 5/16 | 25 | 25,40, 55, 65,80, 105 | 127 | 140 |
| 3/8 | 25 | 25,40, 55, 65,80, 105 | 150 | 165 |
| 1/2 | 35 | 55, 80, 105, 125,150 | 190 | 215 |
| 3/4 | 38 | 55, 80, 105,125,150 | 230 | 265 |
| 003 | 15 | 20 | 45 | 55 |
| 004 | 20 | 25 | 65 | 80 |
| 4R | 20 | 25 | 60 | 70 |
| 6R | 25 | 25, 30, 40, 55 | 90 | 105 |
| 8R | 25 | 25, 30, 40, 55, 65 | 108 | 127 |
| 250 | 25 | 25, 40, 55 | 110 | 125 |
| DR125 | 20.8 | 25, 40 | 73.3 | 86.2 (5.) |
| DR200 | 20.8 | 25, 40, 53 | 92.3 | 105.2 (53) |
| DR250 | 23.8 | 25, 40, 54 | 112 | 131.2 (Í) |
| item | value |
| Place of Origin | China |
| | Chongqing |
| Brand Name | HH |
| Model Number | Customized |
| Shaping Mode | Forging Mould |
| Product Material | Steel |
| Product | Industrial Appliance |
| Material | DC53/H9 |
| Size | Customized Size |
| Surface treatment | Polishing |
| MOQ | 1 Set |
| Shape | Customized Shapes |
| Tolerance | 0.01mm |
| Delivery Time | 15-20 Days |
| Application | Industry |
| Service | OEMODM |
| Color | Customized Colors |
