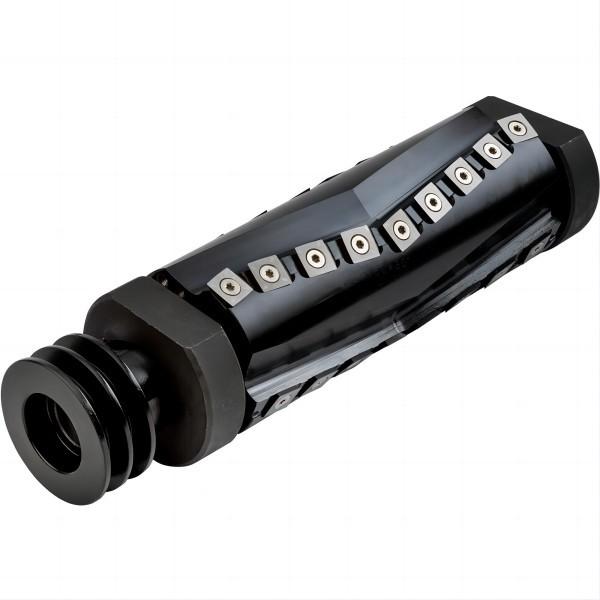

8 Helical Cutterhead Assembly for Grizzly G0857
8 Helical Cutterhead Assembly for Grizzly G0857
8 Helical Cutterhead Assembly for Grizzly G0857
8 Helical Cutterhead Assembly for Grizzly G0857
Specifications
Brand Name :
Fengke
Place of Origin :
China
Maximum width of cut :
8"
Cutterhead diameter :
3-1/16"
Number of indexable carbide inserts :
15 x 15 x 2.5mm
Insert Material :
Carbide
Description
Feature

1.Helical Cutterhead is designed to replace the straight-knife cutter head on the Model G0857 8" x 76" Jointer.

2.Helical cutter heads provide a superior finish, better dust collection, and quieter operation as compared to straight-knife cutterheads.

3.Each indexable carbide insert can be rotated up to three times to expose a new sharp edge. You will no longer have to worry about changing and resetting knives every time a blade gets dull.

4.The indexable carbide inserts are positioned along a helical pattern with the cutting edges at a slight angle to the workpiece for a shearing action that leaves a glassy smooth cut even on the toughest of woods.

5.All 36 inserts on the cutter head

8

SPECIFICATIONS:
  • Maximum width of cut: 8"
  • Cutterhead diameter: 3-1/16"
  • Number of indexable carbide inserts: 36
  • Indexable carbide insert size: 15 x 15 x 2.5mm8
Application
  • Grizzly G0857 8" x 76" Jointers
