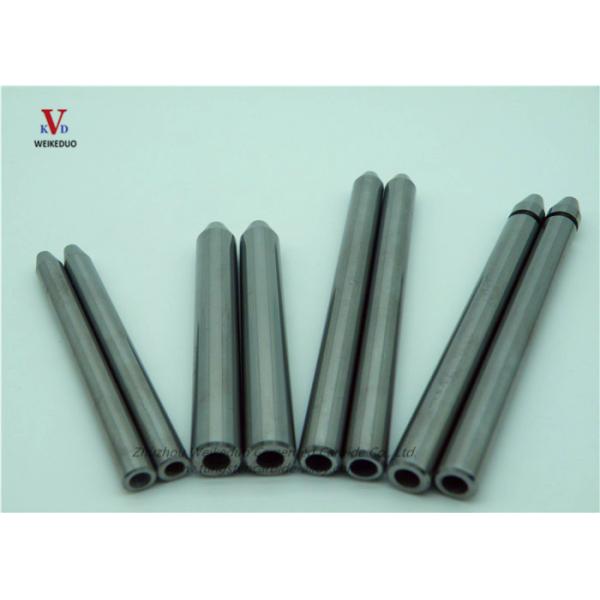

Straight Tungsten Carbide Blasting Nozzle , Carbide Jet Hose Nozzle
Straight Tungsten Carbide Blasting Nozzle , Carbide Jet Hose Nozzle
Straight Tungsten Carbide Blasting Nozzle , Carbide Jet Hose Nozzle
Straight Tungsten Carbide Blasting Nozzle , Carbide Jet Hose Nozzle
Specifications
Brand Name :
VKD
Place of Origin :
Hunan, China (Mainland)
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
One million films a month
Delivery Time :
7-30 working days
Packaging Details :
Plastic boxes, cartons
Product name :
Tungsten Carbide Water Jet Nozzle
Material :
Tungsten Carbide
Particle :
Medium
Surface treatment :
Plain/grinding/polished
Application :
Winding machine
Package :
Paper case to every pc,carton out wrapped
Description

Straight Tungsten Carbide Blasting Nozzle , Carbide Jet Hose Nozzle​

Tungsten Carbide Blasting Nozzle Introduction


Water jet nozzle is used for cutting stone,glass,plastic,metal so on hard material.

Tungsten Carbide Blasting Nozzle spcifications:

Life: 150-300 hours refers to the general statistical time under 350 Mpa working pressure. The service life of sand mixing pipe is determined not only by its own quality, but also by many factors, such as working pressure, water column, abrasive (pomegranate sand), knife head structure design and some human factors. Among them, the influence of water column on the life of sand mixing pipe is most easily ignored in practical application. water

Tungsten Carbide Blasting Nozzle application:

• Abrasive Waterjet

• Dry Blasting

• Mirco Abrasive

• Scrubber

• Descaling

• Slurry Jet

• Spray Drying
•Centrifuge

Straight Tungsten Carbide Blasting Nozzle , Carbide Jet Hose Nozzle


Parameters
Straight Tungsten Carbide Blasting Nozzle , Carbide Jet Hose Nozzle

NO.

model

ΦD(mm)

Φd1(mm)

L(mm)

θ°

а°

1

6.35*1.02*76.2

6.35

1.02

76.2

40

28

2

6.35*0.76*76.2

6.35

0.76

76.2

40

28

3

6.35*0.91*76.2

6.35

0.91

76.2

40

28

4

6.35*1.02*101.6

6.35

1.02

101.6

40

28

5

6.35*0.76*101.6

6.35

0.76

101.6

40

28

6

7.14*1.02*76.2

7.14

1.02

76.2

40

28

7

7.14*0.76*76.2

7.14

0.76

76.2

40

28

8

7.14*0.91*76.2

7.14

0.91

76.2

40

28

9

9.45*1.02*76.2

9.45

1.02

76.2

40

28

10

9.45*0.76*76.2

9.45

0.76

76.2

40

28

11

9.43*1.02*76.2

9.43

1.02

76.2

40

28

12

9.43*0.76*76.2

9.43

0.76

76.2

40

28

13

9.45*1.02*79

9.45

1.02

79.0

40

28

14

9.45*0.76*79

9.45

0.76

79.0

40

28

15

9.45*1.02*101.6

9.45

1.02

101.6

40

28

16

9.45*0.76*101.6

9.45

0.76

101.6

40

28

17

9.45*1.02*120

9.45

1.02

120.0

40

28

18

9.45*0.76*120

9.45

0.76

120.0

40

28

19

7.14*1.02*101.6

7.14

1.02

101.6

40

28

20

7.14*0.76*101.6

7.14

0.76

101.6

40

28

21

7.14*0.89*101.6

7.14

0.89

101.6

40

28

22

7.14*0.91*101.6

7.14

0.91

101.6

40

28

23

7.14*1.02*120

7.14

1.02

120.0

40

28

24

7.14*0.76*120

7.14

0.76

120.0

40

28

25

8.0*1.02*101.6

8.00

1.02

101.6

40

28

26

8.0*0.76*101.6 Grooved sand pipe

8.00

0.76

101.6

40

28
