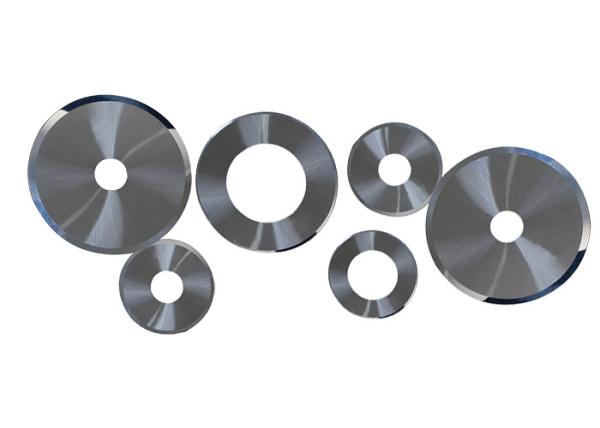

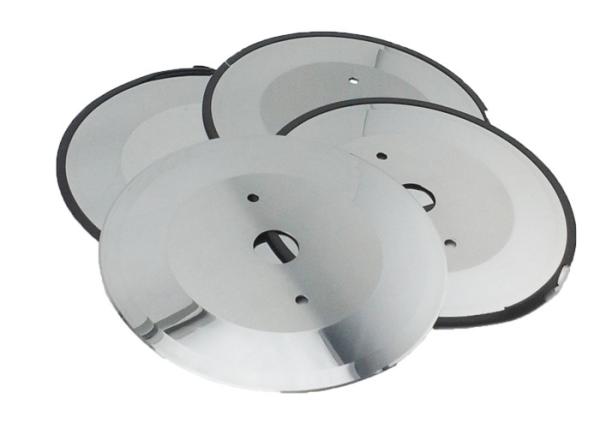

Corrugated Paper Slitter Blades , Tungsten Carbide Circular Blade High Hardness
Corrugated Paper Slitter Blades , Tungsten Carbide Circular Blade High Hardness
Corrugated Paper Slitter Blades , Tungsten Carbide Circular Blade High Hardness
Corrugated Paper Slitter Blades , Tungsten Carbide Circular Blade High Hardness
Corrugated Paper Slitter Blades , Tungsten Carbide Circular Blade High Hardness
Corrugated Paper Slitter Blades , Tungsten Carbide Circular Blade High Hardness
Specifications
Brand Name :
SEEGO CARBIDE
Model Number :
Carbide Circular Blade
Certification :
ISO, SGS, CE
Place of Origin :
CHINA
MOQ :
1 piece/pieces Solid Tungsten Carbide Slitting Blades
Price :
USD20~USD50 Per Piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
50 Ton/Tons per Month Solid Tungsten Carbide Slitting Blades
Delivery Time :
5-10 Days after order confirmation
Packaging Details :
Rubber Rings+ Bubble Pack+Carton Boxes
Products Name :
Reliable Performance Tungsten Carbide Circular Blade Cutters with High Machining Efficiency
Applications :
Cutting and Machining
Materials :
Tungsten Carbide+ Cobalt Materials
Surface :
Grinding & Mirror Polishing
Size :
OEM or ODM for Agnati, BHS, Fosber, Gopfert, Isowa, Marquip, Mitsibishi, Peters, TCY machine
Feature :
High Speed.Straight Smooth Edge
Edge :
Smooth, Sharp and Durable Single/Double Edge
Samples :
Avablibe
Description

Reliable Performance Tungsten Carbide Circular Blade Cutters with High Machining Efficiency

Products Description:

Corrugated Paper Circular Slitter Blade is one of our main products, which use for cutting Corrugater Paper industry.

The performace is reliable and high machining efficiency.

Advantage:
1 100% promise materials quality
2

pure virgin tungsten carbide material, no recycle materials
3 High Hardness with high wear-resistance.
4 High Precision to all the dimenaions
5 Mature Production technical ands with 6S Quality control

Products Series:

► Corrugated paper slitting knives

► Carbide knives for high-speed machines

► Carbide knives for low-medium speed machines

► Carbide bottom knives(Bottom knives include single or double tungsten carbide rings tipped on steel body (carbide ring works as cutting edges)

► Lithium battery tungsten carbide slitter blades

Cutting blades for cell diaphragm are normally made by sub-fine grain size tungsten carbide powders. Lithium battery electrode slitter blades boast very high precision and a long working life. Each blade is controlled in a cutting edge amplification test (300 times amplification).

► Machine knives for printing industry

► Solid carbide saw blades (Solid carbide saw blades are used for non-ferrous metals sheet cutting and machining.)

► Crusher blades(Crusher blades are used for plastic, rubber and other recyclable materials crushing application.)

► Composite materials cutting knives

► Chemical fiber cutting knives

Types and Dimensions:

Common Sizes of Corrugated Paper Slitting Knives For Abroad Clients
Items Common sizes
OD*ID*T(mm)		 Holes Available for
machine
1 φ230*φ110*1.1 φ9 * 6holes FOSBER
2 φ230*φ135*1.1 4 spline key slots FOSBER
3 φ220*φ115*1 φ9 * 3holes AGNATI
4 φ240*φ32*1.2 φ8.5 *2 holes BHS
5 φ240*φ115*1 φ9 * 3holes AGNATI
6 φ250*φ150*0.8 　 PETERS
7 φ257*φ135*1.1 　 FOSBER
8 φ260*φ112*1.5 φ11 * 6holes ORANDA
9 φ260*φ140*1.5 　 ISOWA
10 φ260*φ168.3*1.2 φ10.5 * 8holes MARQUIP
11 φ270*φ168.3*1.5 φ10.5 * 8holes HSEIH
12 φ270*φ140*1.3 φ11 * 6holes VATAN MAKEINA
13 φ270*φ170*1.3 φ10.5 * 8holes 　
14 φ280*φ160*1 φ7.5 * 6holes MITSUBISHI
15 φ280*φ202*1.4 φ8 * 6holes MITSUBISHI
16 φ291*φ203*1.1 φ8.5 * 6holes FOSBER
17 φ300*φ112*1.2 φ11 * 6holes TCY

Production Process:

Choose material - Initial processing - Vacuum heat treatment - Cooling and tempering - Hardness testing - Accurate size grinding - Finished product - Inspection - Anti rust oil spraying - Mark making - packing


Packing and Delivery:

Step 1: Knife Edge Rubber Protection
Step 2: Plastic Bag
Step 3: Foam
Step 4: Paper Box
Step 5: Carton Boxes / Wood Boxes

Note: Welcome------customizable for individual requirements.
