Specifications
Brand Name :
SEEGO CARIBDE
Model Number :
Dia from 0.3-40mm, Length 310mm and 330mm
Certification :
SGS, CE, ISO
Place of Origin :
CHINA-China
MOQ :
2kg
Price :
Can be negociated together
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
45Tons/Month
Delivery Time :
5-8 days
Packaging Details :
Plastic Boxes inside + Carton Boxes outside
Material :
100% Virgin Tungsten Carbide Raw Materials
Detailed Product Description :
Sintered Unground Solid Tungsten Carbide Rod
Production Method :
HIP Sintered +Extrusion
Surface :
Blank or polished h6 and h5 tolerances
Hardness HRA :
91.5-94.0HRA
Grain size :
0.5um-1.0um
Features :
Good wear resistance, impact resistance, High bending strength
Composition :
Wc+Co.
Description

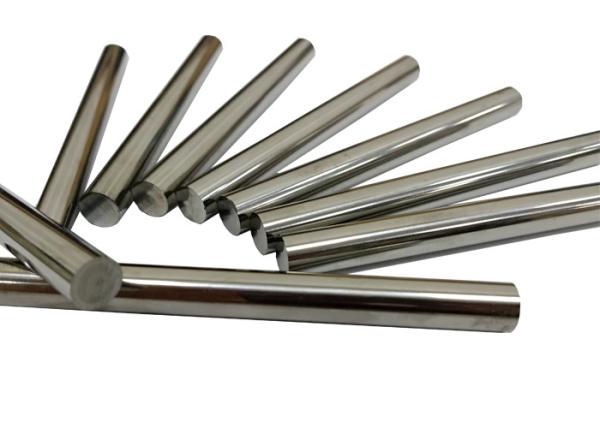

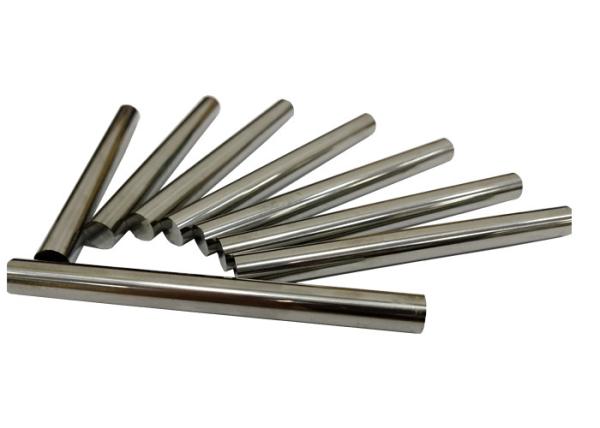

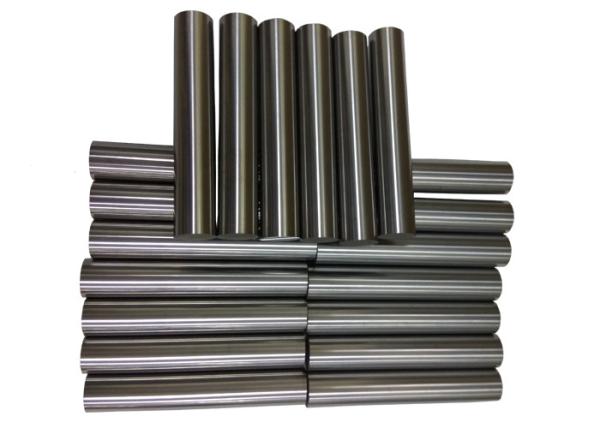

YG10X Solid Tungsten Carbide Rod with Diameter 0.3mm ~ 40mm , Standard Length

Comapny Info:

SEEGO CARBIDE produce and supply unground carbide blanks in stock with HIP sintering and 100% virgin materials. Our grade includes ISO K05 to K40, from machining carbon steel to aluminum, non-ferrous metals and tianium or we develop grade for your applications.

Speciafications:

Ungrounded 10% Cobalt Solid Tungsten Carbide Rod with Diameter From 0.3mm~40mm
Specifications:D×L
D Tol L Tol
mm mm mm mm
0.3~12 +0.20～0.45 330 0～+5.0
12.5~20 +0.30～0.60 330 0～+5.0
21~40 +0.50～0.80 330 0～+5.0

Advantage:

1. HIP sintering + Extrusion + CIP Method to ensure good performance.
2. Various grades and types available according to different working environment request.
3. Very good price, discount for large quantity.
4. Fast delivery time.
5. High precision ground, such as h5, h6

6. The smallest Dia we made is 0.3mm with standard length 330mm

7. The longest length we made is 1000mm

Application:

► For PCB Drills, Drills, End Mills & Dole Drilling Tools, Gun Drills
► For Reamers
► For Mold Punches
► Core Pins, etc.

Grade:

Grade

Density

(g/cm3)

 T.R.S
(MPa)

Hardness

(HRA)
YL10.2 14.5 3400 92.5
YG11C 14.4 2260 87.5
YG6X 14.9 1560 91
YS2T 14.45 2800 92.5
YG15 14.1 2400 86.5

Packing and Delivery:

► Packaging Details:Carton box and inner plastic bag.
► Delivery Detail: Within 10-30 days upon confirm the order.

Our Guarantee:
1. High quality durable tungsten carbide round bar /rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.

2. Produced with advanced equipments and process.

3. All products go through in-process and final inspection.

4. Free online technical service available.

5. Stable and continuous production ability.

6. Quality Control System and strict inspection.

7. OEM and ODM are accepted as well.

8. Undertake orders of non-standard sizes at customer's requests.

Other Types of Tungsten Carbide Rod:

1 Sintered-metric Tungsten Carbide Rod
2 Sintered-inch Tungsten Carbide Rod
3 h6-Ground Tungsten Carbide Rod
4 h6-Ground One Hole Tungsten Carbide Rod
5 h6-Ground Two Holes Tungsten Carbide Rod
6 h6-Ground Three Holes Tungsten Carbide Rod
7 Sintered Two Helix Holes Tungsten Carbide Rod

Note: Welcome------customizable for individual requirements.
