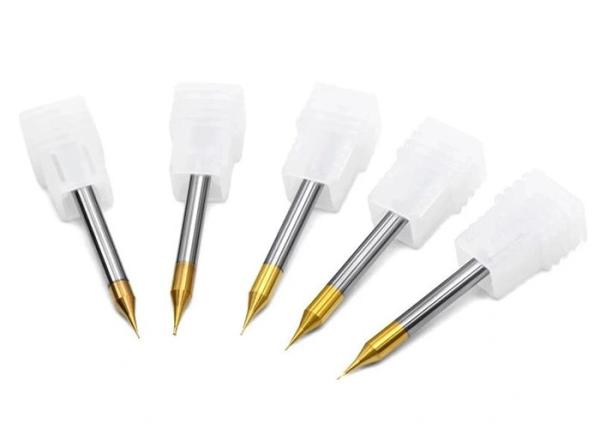

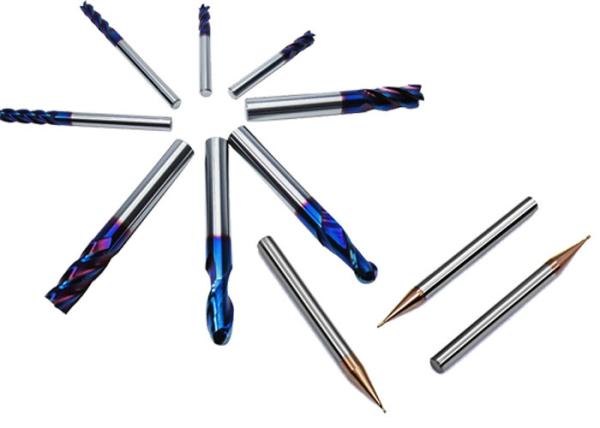

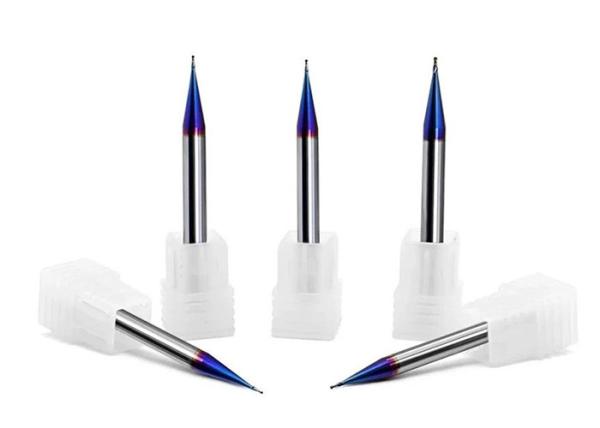

Tungsten Carbide End Mill for High Temperature Milling Cutting

Advantages:

1. With excellent rigidity, tooling can conduct highly efficient machining.
2. Generalhigh precision prodcut, surface finished <Ra0.15um
3. Adopting advanced power high speed CNC grinder to make high precision profile grinding, it has perfect blade quality & precision tolerance.
4. Inclinationnumber of flute (2-flute-6-flute)type of holderhelical angleflute lengthholder diameteroverall length etc can be machined according to requirements.

Discription:

We are professional munufaturer and supplier for a ranges of high performance solid carbide end mills, drills, reamers in ultra micro grain tungsten carbide materials.
Applications: for Aluminum,Copper,Iron,Ordinary Steel,Heat Resistant Steel,Stainless Steel,Ti Alloy.

An End Mill is a type of milling cutter designed to be held by the shank on one end in order for it to cut with the opposite end. The advantage to an End Mill is that, unlike any other type of milling cutter, it is capable of cutting on the periphery, the face or the end of the cutter. our offering of End Mills is extensive-ranging Solid Carbide Roughing & Finishing Mills to application and material specific tools employing the latest geometries and coating technologies all resulting in improved efficiency and productivity for you. The number of flutes can range from two to eight. The fewer flutes offer the most efficient chip removal, but a higher amount of flutes provide a smoother finish. The End Mill’s helix angle is also important. Most general purpose End Mills have a 30-degree helix angle because it is halfway between “slow” (low-angle) and “fast” (high-angle) helix End Mills.

Specifications of corner radius head End Mills:

Coating:

TiAIN

A special multilayer coating for edge retention and corrosion resistance when used on a wide range of materials including iron based, hardened steels, and stainless steels. Typically TiAIN is used in applications with lower cutting speeds than TiSiN and ALTiN but often improves the tool's lifetime by a factor of three or more.

ALTiN

A general purpose coating that offers improved wear resistance to abrasive, adhesive, or difficult to machine materials such as cast iron, aluminum alloys, steels, copper and more. This is a common used substitute when the advantages of TiAIN cannot be used, as in applications that cannot generate the speeds and feeds required for higher cutting temperatures. ALTiN is harder and more impact resistant than TiAIN and can improve tool life.

TiSiN

This is a high performance coating for milling, tapping and drilling in stainless steels, carbon steels, alloy steels, and cast iron. This coating is extremely heat resistant and can be used with or without coolant. It is exceptional in difficult to machine materials where adhesive wear is particularly high and can be run at much higher speeds and feeds than all other coatings.
